LBIT-1T Series
200 Amp Load Break Bushing Insertion Tools
Designed for positive installation and removal.
Part No: Refer to Chart
Share this product
Downloads

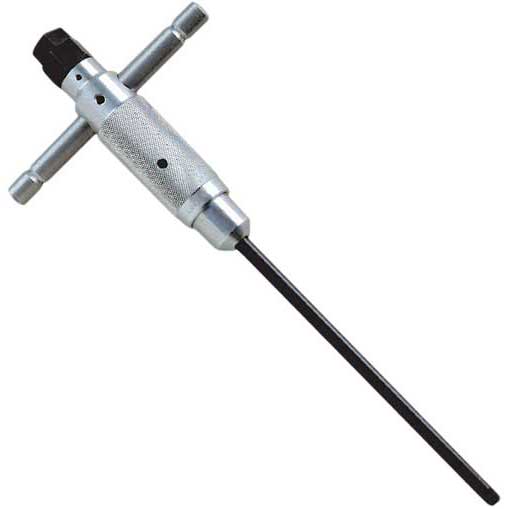

- Image: Photo 1: LBIT-1T 200 Amp Load Break Bushing Insertion Tool
- Document: LBIT-1T Instruction Sheet
- Catalog: Full Utility Catalog
Overview
- The LBIT-1T provides factory-set torque for installation and removal of bushing inserts with a 5/16″ internal hex socket
- Secures 200 amp bushing inserts with an internal hexagon socket drive for positive installation & removal
- Features an adjustable ″T″ handle, 1″ (25.4 mm) square socket drive, 7/8″ (22.2 mm) hexagon for a wrench & standard ‘Penta’ head
- LBIT-1TR models are equipped with a hotstick ring
Compatibility
| Max. Current | 200 Amp |
|---|
Specifications
| Length | 14.25″ (362 mm) |
|---|---|
| Weight | 21 oz (596 g) |
Comparison Chart
| MODEL | PART # | HOTSTICK RING | TORQUE |
|---|---|---|---|
| LBIT-1T | 35900 | No | 180 in-lb |
| LBIT-1T-125 | 35907 | No | 125 in-lb |
| LBIT-1TR | 36770 | Yes | 180 in-lb |
