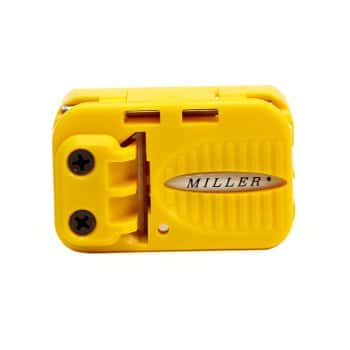

MSAT-X

Dual Channel Fiber Access Tool

Versatile shaving tool for gaining mid-span access to bare or buffered fiber..

Part No: MB10-7000

Share this product

Introducing the new MSAT-X from Miller®, a versatile shaving tool designed to gain mid-span access to bare or buffered fiber found in a variety of MDU and FTTx jacketed cables. Equipped with a unique spring-loaded plate and dual stripping channels, the patent-pending design enables engineers to load 1.9 to 5 mm diameter cables into the same cutting blade without a sizing gauge.

  • Two blade depths to accommodate a variety of cable jacket thicknesses
  • Dual cable channels for ultimate flexibility
  • Patent pending spring loaded channel plate design
  • Hinged lid locates the cables reliably & quickly for maximum efficiency
  • Factory-set blade & cutting depths require no adjustments
  • Versatile deep & shallow cutting channels are color coded for easy identification
  • Safe, compact & ergonomic design fits comfortably in hand for easy operation without risk of injury
Cable Access Mid-Span, End
Min. Cable Outer Diameter 0.075" (1.9 mm)
Max. Cable Outer Diameter 0.197" (5 mm)
Dimensions 2.25" x 1.5" x 1.125" (57.2 mm x 38.1 mm x 28.6 mm)
Weight 1.8oz (51 g)
Replacement Blade Part # MB10-7500
