UA01-7010 PV Wire Stripping Kit

Drill-operated jacket removal kit for 2kV AL PV wire

Durable, precise aluminum PV (photovoltaic, aka solar) stripping kit with 4 stripping bushings

See all distributors

Part No: UA01-7010

Share this product

Downloads

Overview

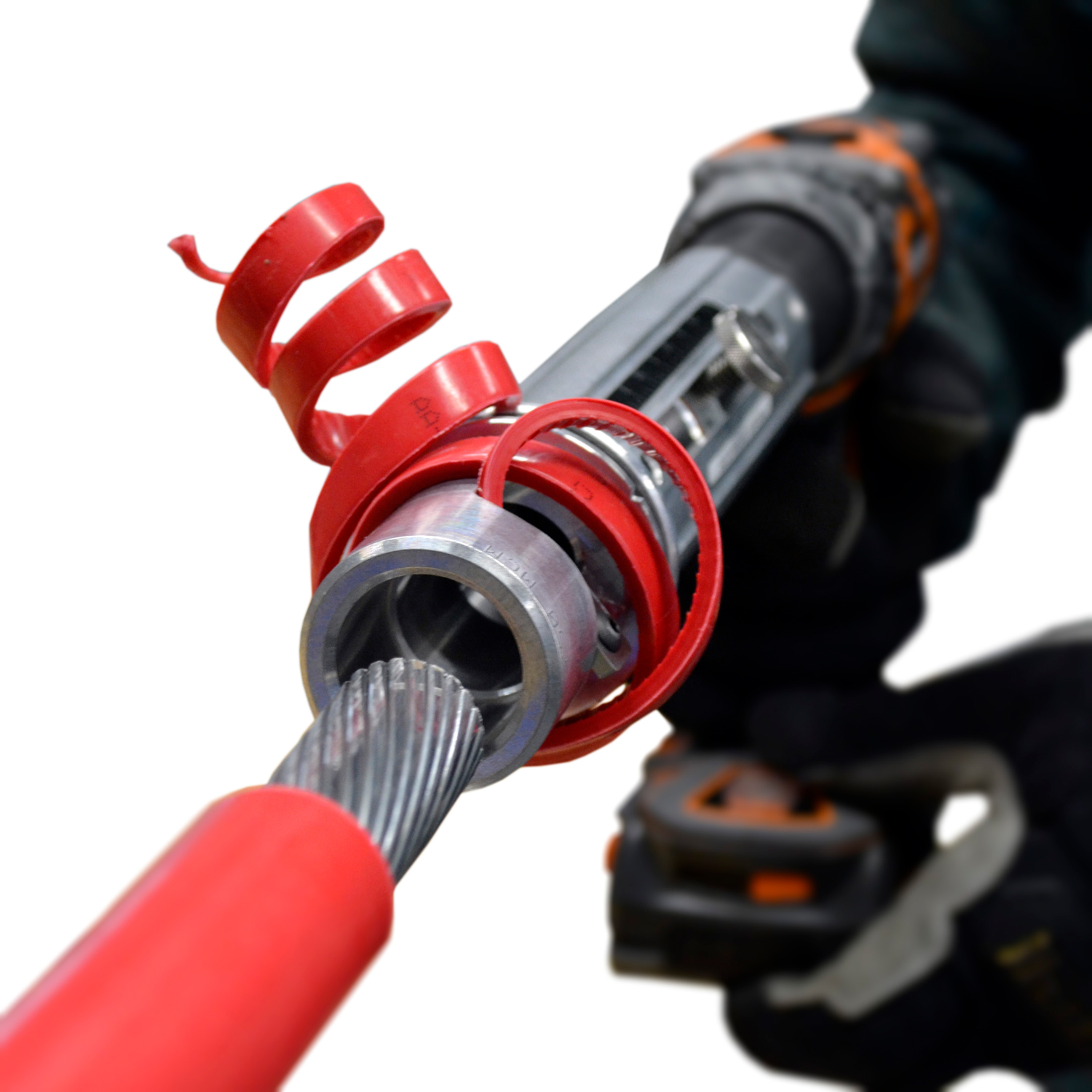

The UA01-7010 PV Wire Stripping Kit is the best solution an installer can have for feeder cable stripping tasks. Featuring a WS 22 SNAP Power-Driven End Stripper and 4 stripping bushings for 500, 600, 750, and 1000 kcmil 2kv aluminum PV wire, this kit provides a precise and reliable cable stripping solution.

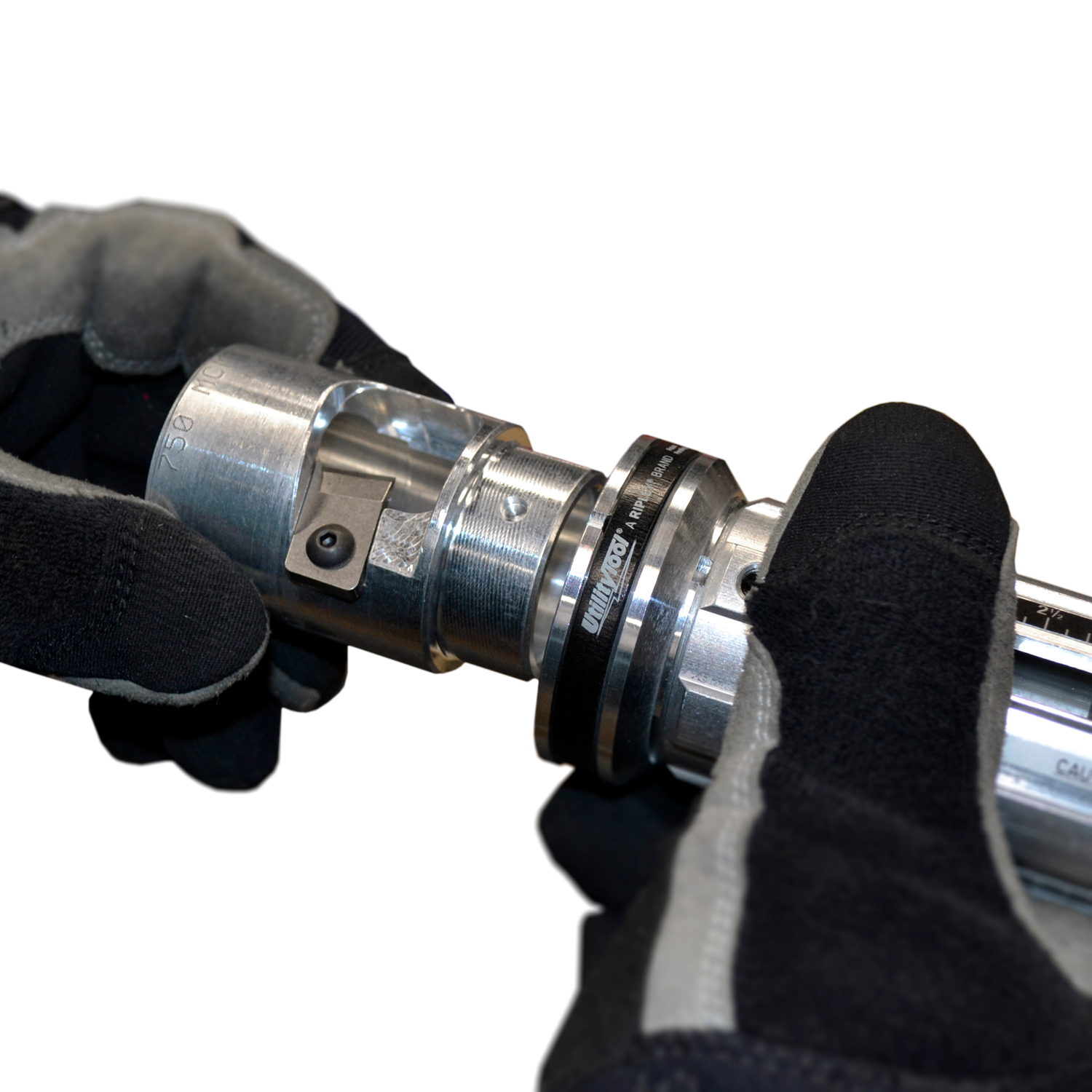

  • Quick-release collar for fast bushing change over

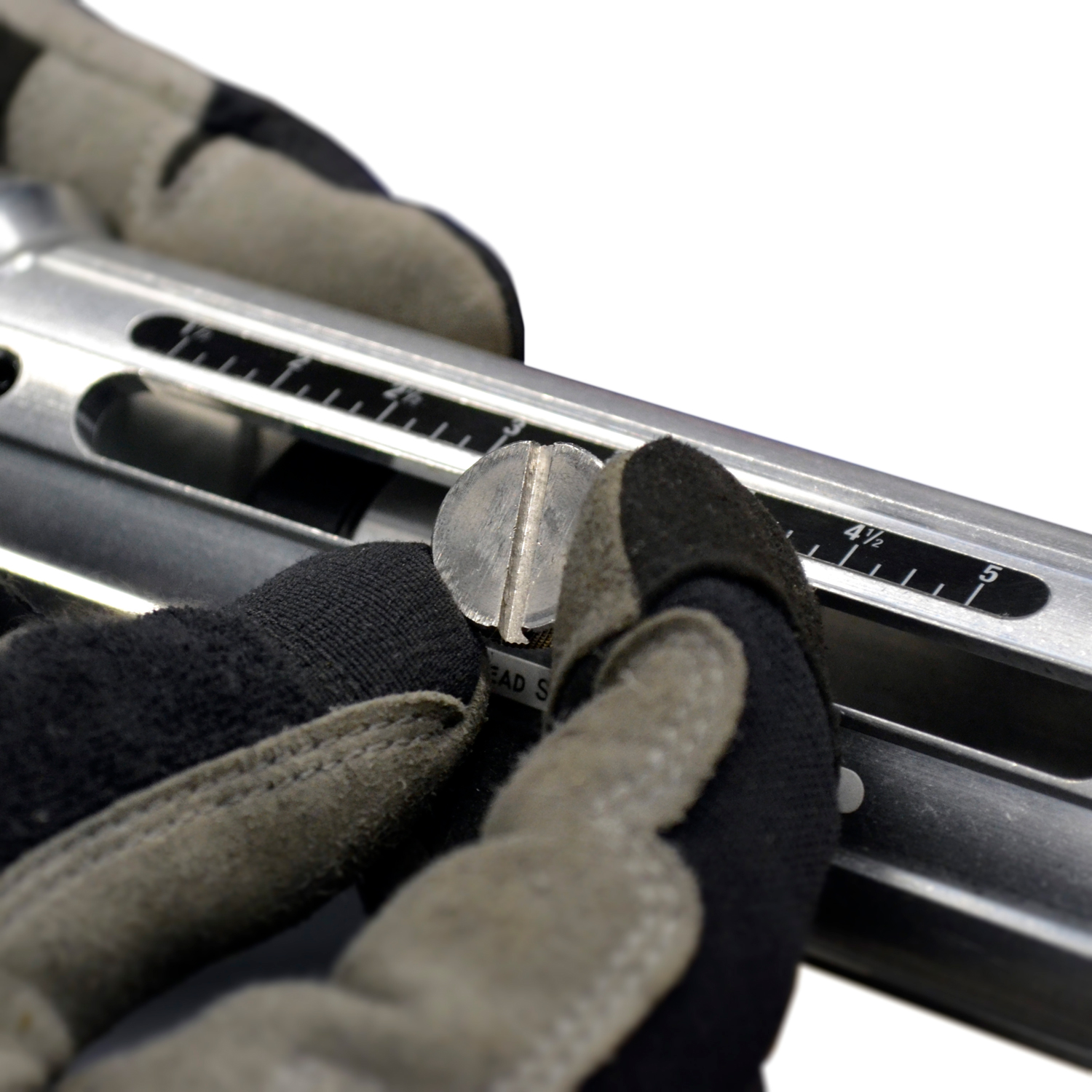

  • Adjustable strip stop and scale allow easy setup for precise strip lengths from 1.5 – 5.25″ (38.1 – 133.3 mm)

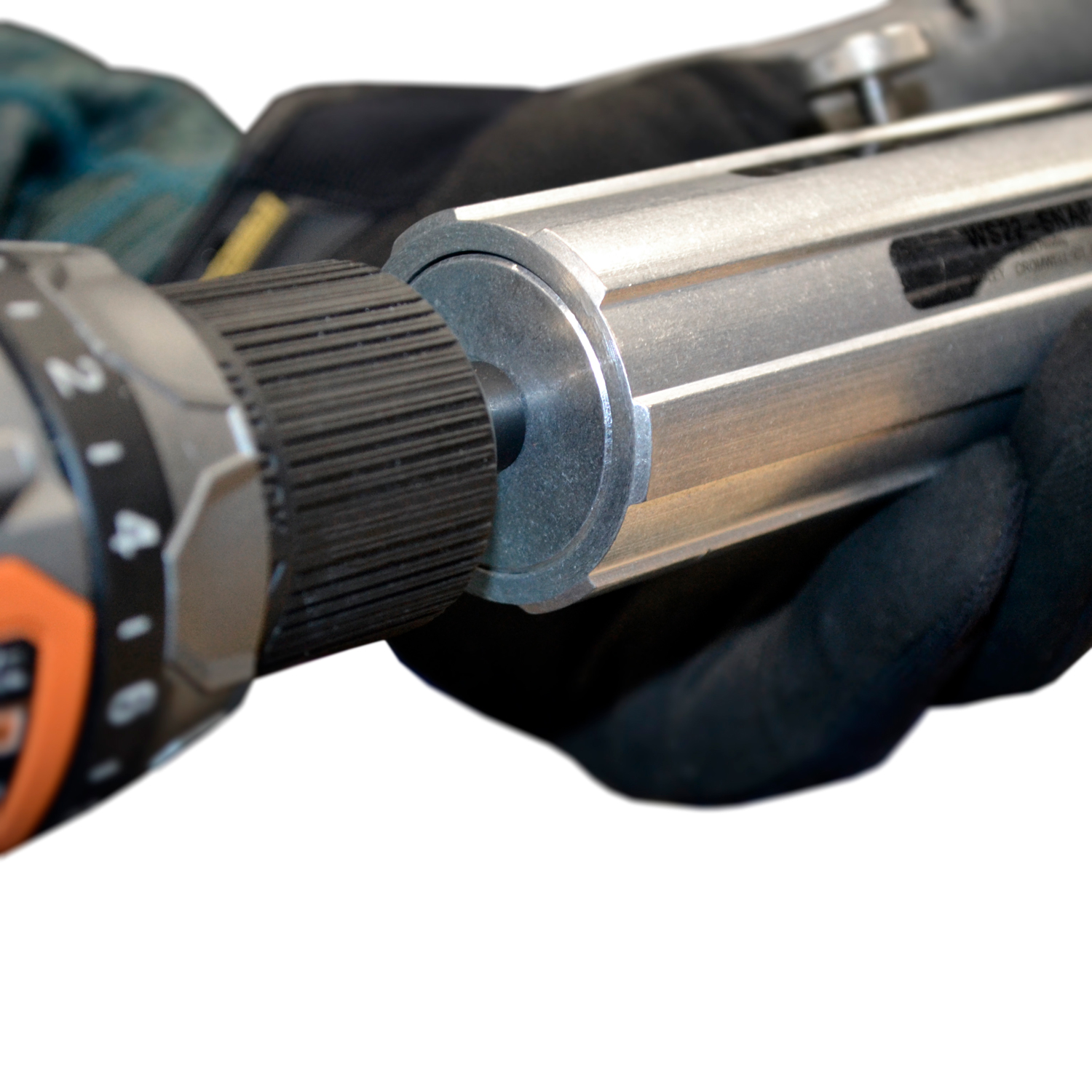

  • Drill adapter fits 3/8” (9.5 mm) drill chucks
  • Accepts all US08 series and 15 series bushings

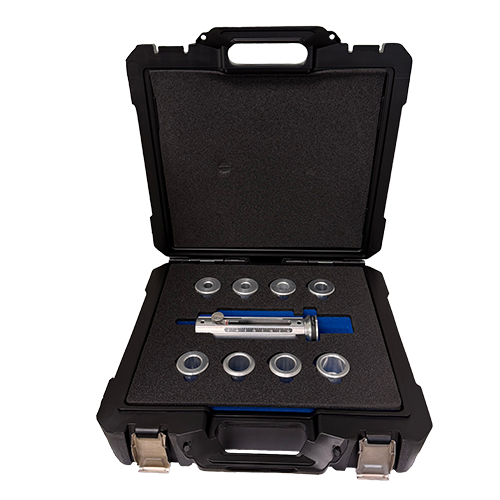

  • Durable 16 x 16 x 4” double lock case
  • Additional bushings listed here

Specifications

Max Cable Diameter 0.79" (20mm)
Dimensions 16 x 16 x 4” (406.4 x 406.4 x 101.6 mm)
