Semi-Con Shaving Tool
Quick and easy removal of bonded semi-con from medium and high voltage power cables.
Part No: US02-7100
Share this product

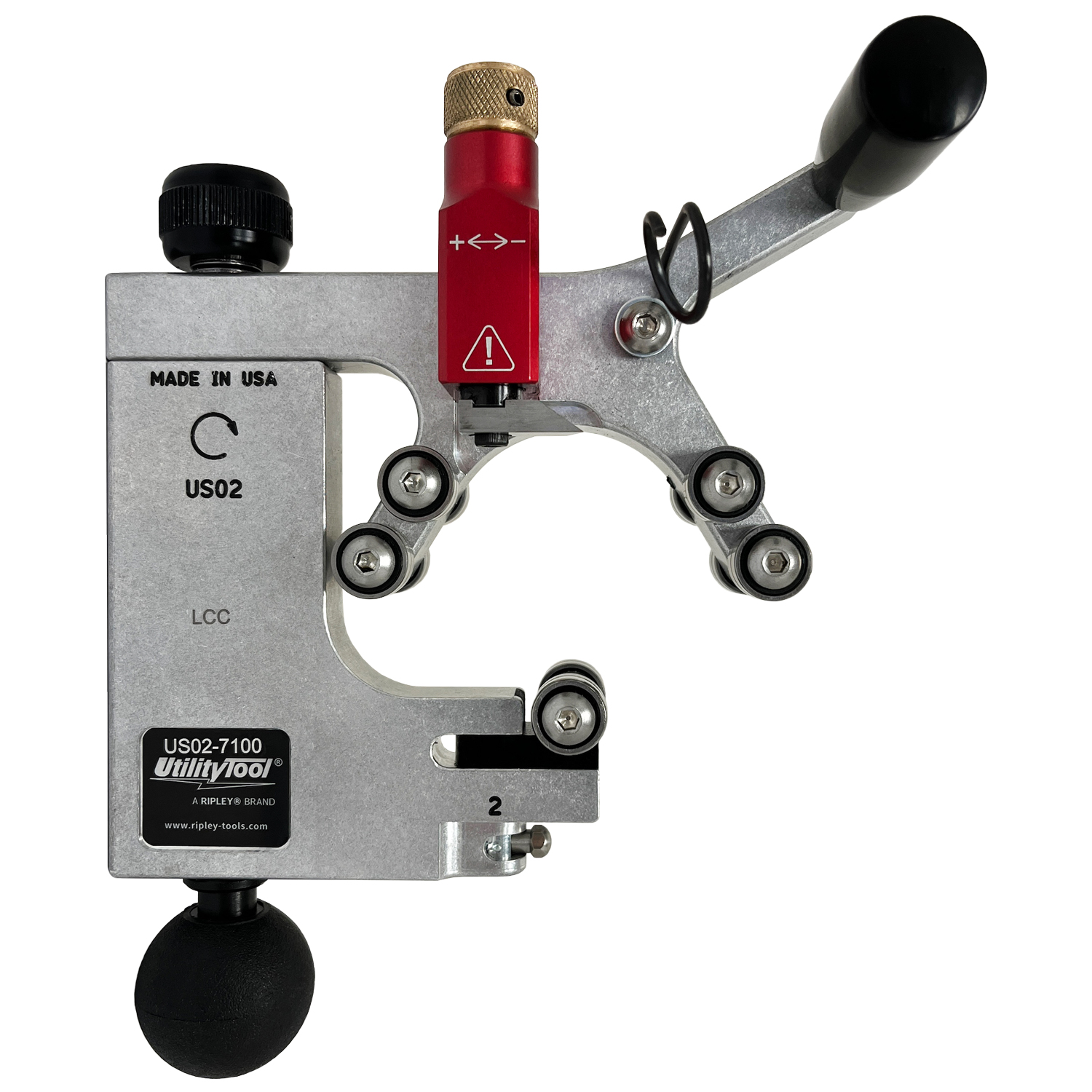

The US02 MAX quickly and easily removes bonded semi-con from medium and high voltage power cables. With a unique blade shape and stop position, this precision tool preserves the smooth surface on insulation and bevels off the edge, eliminating the need for additional surface finishing. Engineered with multiple stainless steel contact bearings, its optimal stability design securely supports cables with diameters from 2.17 to 3.15″ (55 mm to 80 mm) throughout the shaving operation.
|Cable Compatibility||Primary Distribution Underground|
|Cable Access||Mid-Span, End|
|Min. Cable Outer Diameter||2.17" (55 mm)|
|Max. Cable Outer Diameter||3.15” (80 mm)|
|Insulation Thickness||Up to 0.095″ (2.4 mm)|
|Length||9” (228.6 mm)|
|Weight||1 lb 10.4 oz (748 g)|
|Replacement Blade Part #||US02-7501|
