US08 PV Wire Bushings

Name: US08 PV Wire Bushings
SKU: e7ce2e2b2127-1
Availability: InStock

Compatible with PV Wire Stripping Kit & WS-22 Series Tool Bodies

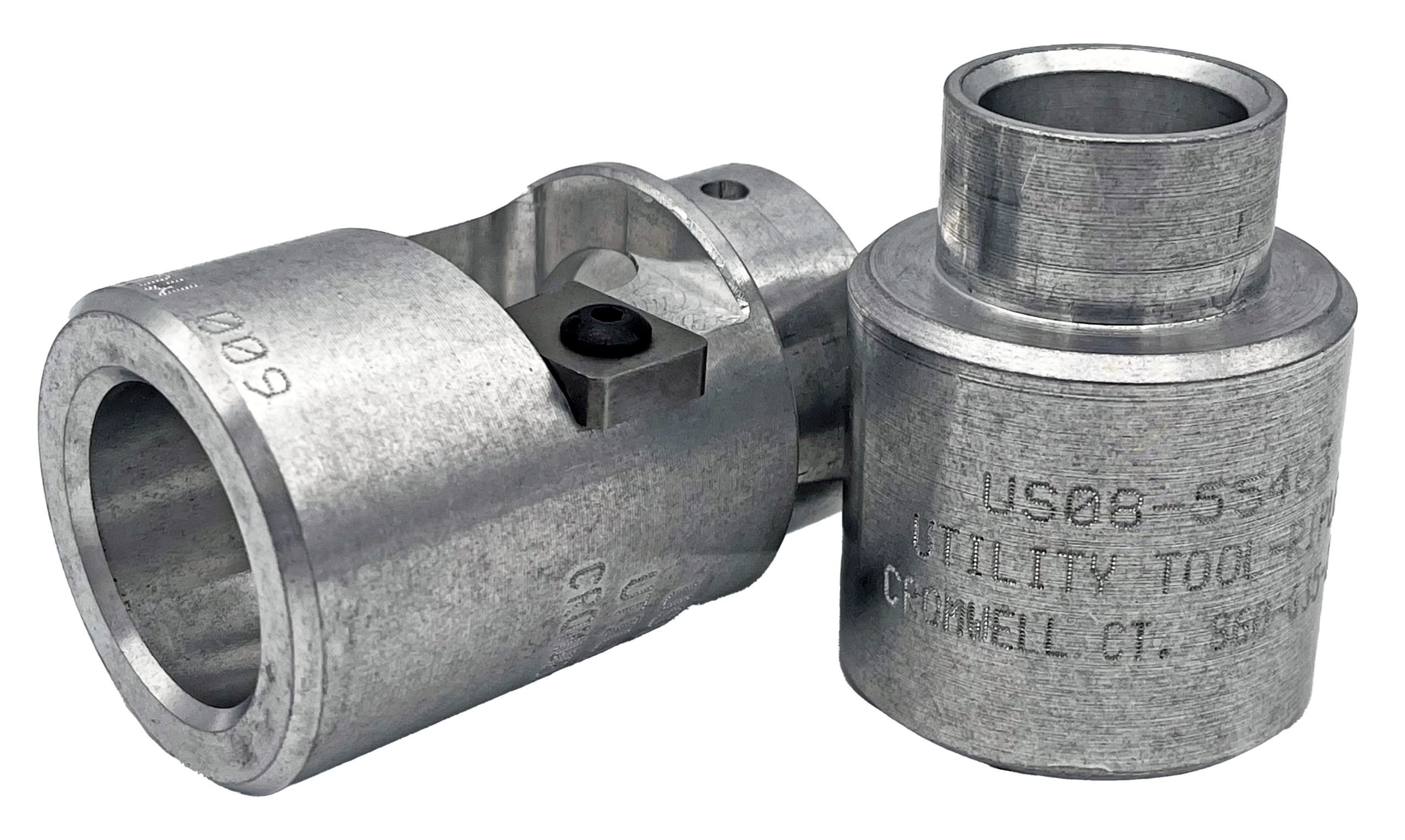

Square-Cut bushings for 2kV aluminum PV (solar) wire.

Part No: Refer to Chart

Share this product

Bushings sized to make jacket removal quicker, cleaner and safer than knives could ever be.

Snap into the tool body and quickly strip the desired length of jacket to cleanly expose the conductor, no adjustment required.

Order separately to complement the PV wire stripper kit, which includes the 500, 600, 750 & 1000 kcmil AWG size bushings

Replacement blade part number: 12355

Replacement Blade Part #	12355

MODEL	PART #	CONDUCTOR SIZE	CUTTING TYPE
#8 AWG 2kV AL	US08-32560	8 AWG	Square
#6 AWG 2kV AL	US08-35560	6 AWG	Square
#4 AWG 2kV AL	US08-40560	4 AWG	Square
#2 AWG 2kV AL	US08-46060	2 AWG	Square
#1 AWG 2kV AL	US08-54075	1 AWG	Square
1/0 AWG 2kV AL	US08-57075	1/0 AWG	Square
2/0 AWG 2kV AL	US08-61575	2/0 AWG	Square
4/0 AWG 2kV AL	US08-73075	4/0 AWG	Square
250 kcmil 2kV AL	US08-79090	250 kcmil	Square
300 kcmil 2kV AL	US08-84090	300 kcmil	Square
350 kcmil 2kV AL	US08-90090	350 kcmil	Square
400 kcmil 2kV AL	US08-94090	400 kcmil	Square
500 kcmil 2kV AL	US08-102595	500 kcmil	Square
600 kcmil 2kV AL	US08-1150110	600 kcmil	Square
750 kcmil 2kV AL	US08-1215105	750 kcmil	Square
800 kcmil 2kV AL	US08-1215105	800 kcmil	Square
900 kcmil 2kV AL	US08-1350125	900 kcmil	Square
1000 kcmil 2kV AL	US08-1380105	1000 kcmil	Square
