US10 Series

URD Cable Insulation Chamfering Tool for 15-35 kV Medium Voltage Cable

With a compact, low friction, thermoplastic V-jaw construction and PTFE-coated aluminum frame.

See all distributors

Part No: US10-7000

Share this product

Downloads

Overview

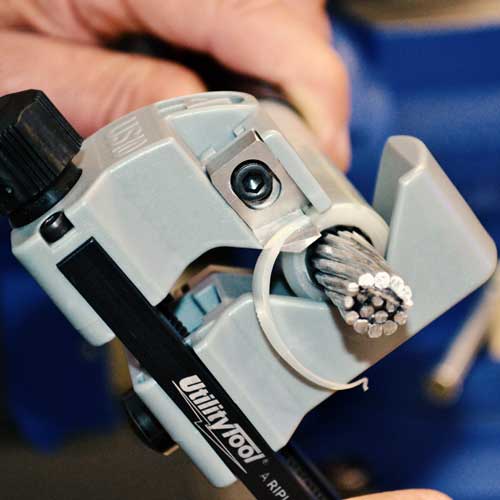

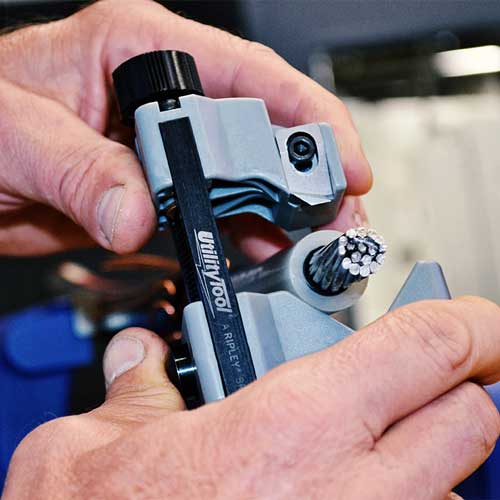

Introducing the innovative US10 Cable Insulation Chamfering Tool that utilizes a size adjustment clamping system to quickly and easily adjust and lock onto the insulation. Its compact, low friction, thermoplastic V-jaw construction and PTFE-coated aluminum frame provides a stable and precise clamping platform in any space.

  • Easily adjusts to suit XLPE & EPR insulation materials on 0.5″ to 2.36″ (12.7 mm to 60 mm) cable diameters

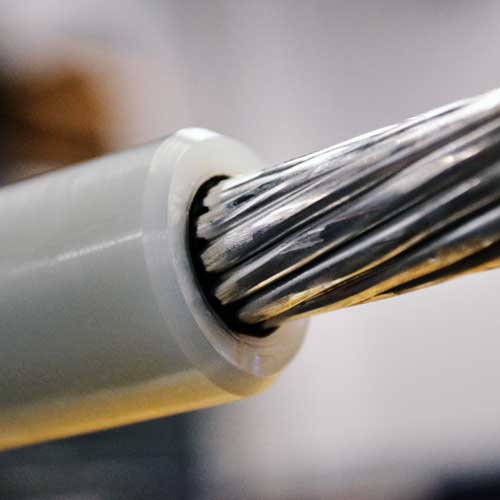

  • 30 degree or 45 degree angle bevel models perform with a factory-set chamfer depth of 0.075″ (1.905 mm), adjustable from 0″ to 0.150″ (0 mm to 3.81 mm); 15-35 kV
  • Equipped with safe, recessed blade to prevent potential injury & blade damage
  • Features a replaceable, machined & ground tool steel blade

Compatibility

Cable Compatibility Primary Distribution Underground
Color Gray
Cable Access End
Insulation Materials XLPE, EPR
Min. Voltage 15 kV
Max. Voltage 35 kV

Specifications

Material Impact-Resistant Polymer

Comparison Chart

MODEL PART # REPLACEMENT BLADE PART # O.D. OVER INSULATION / SEMI-CON CHAMFER ANGLE
30 Degree Chamfer Tool US10-7000 US10-7500 0.5″ - 2.36″ (12.7 - 60 mm) 30°
45 Degree Chamfer Tool US10-7001 US10-7501 0.5″ - 2.36″ (12.7 - 60 mm) 45°
