WS 22 Series

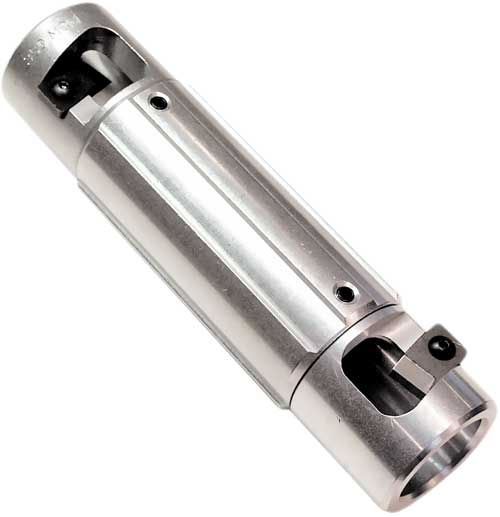

600V Cable Stripper with 2 Cable Bushings

Stripper with double-sided design.

Part No: Refer to Chart

Share this product

  • Double-sided design accommodates two bushings that easily change out with a hex wrench
  • Efficiently & precisely strip 600V secondary cable without damaging the conductor, even in cold climates
  • Compatible square cut bushings for stripping 60 mil to 110 mil secondary insulations with concentric, compressed or compacted conductors #1/0 AWG to 1,000 kcmil
  • Guarded bushing cutting blades prevent injury

NOTE: The WS 22 is available with or without bushings. Select square cut bushings from the bushings tab. Please specify two bushings when ordering the WS 22.

Compatible Bushings

Conductor Type Concentric, Compressed, Compacted
Cable Compatibility Secondary Distribution
Cable Access End
Min. Cable Outer Diameter #1/0 AWG
Max. Cable Outer Diameter 1000 kcmil
Max. Voltage 600 V
Insulation Thickness 60 - 110 mils
Max. Bushing Capacity 2
Patent Number U.S. Patent No. 10,819,091
WS22 12304H 6″ (152 mm) 1 lb (454 g)
