WS 49 Series

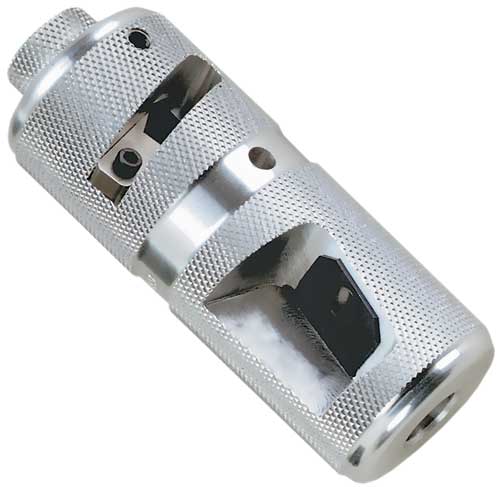

5 kV Airport Lighting Cable Stripper & Penciling Tool

Combination stripping and penciling tool.

See all distributors

QuickShip Available QuickShip Available

Quickship Available: Many of our products can ship out to your local authorized distributor within 48 hours. If you see a QuickShip icon next to an item and you need it FAST, let your distributor know and we will expedite it.

Part No: Refer to Chart

Share this product

Downloads

Overview

  • Combination stripping & penciling tool for 5 kV L-824 Type C airport lighting cable with #4 & #8 AWG diameters
  • Bushings compensate for cable diameters of 0.395″, 0.42″, 0.445″ & 0.49″
  • Guarded blade provides safety & prevents injury

Compatibility

Cable Compatibility Primary Distribution Overhead
Cable Access End
Max. Voltage 5 kV

Specifications

Length 3.5″ (89 mm)
Weight 10 oz (284 g)

Comparison Chart

MODEL PART # REPLACEMENT BLADE PART # STRIP LENGTH CABLE SIZE SHAVE LENGTH
WS 49 27700 QuickShip Available
Quickship Available: Many of our products can ship out to your local authorized distributor within 48 hours. If you see a QuickShip icon next to an item and you need it FAST, let your distributor know and we will expedite it.
 		27702 (Penciling), 19207 (Stripping) 0.75″ (19.05 mm) #8 AWG 0.5″ (12.7 mm) Pencil
WS 49H 27712 27714 (Penciling), 19207 (Stripping) 0.75″ (19.05 mm) #4 AWG / #6 AWG 0.5″ (12.7 mm) Pencil
