WS 7 & WS 8 Series
5-35 kV URD Cable Insulation Penciling Tools
For quick tapering of 5 to 35 kV URD cables in various fixed sizes.
Part No: Refer to Chart
Share this product
Downloads

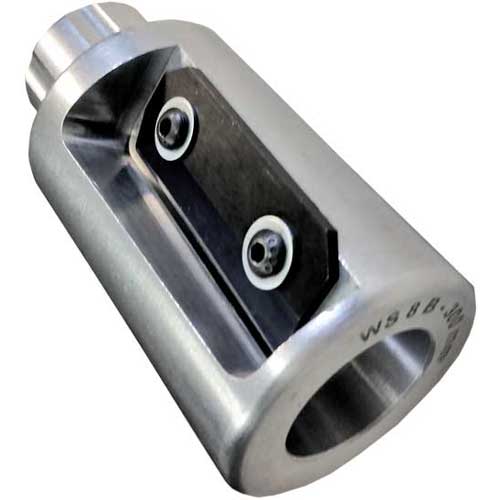

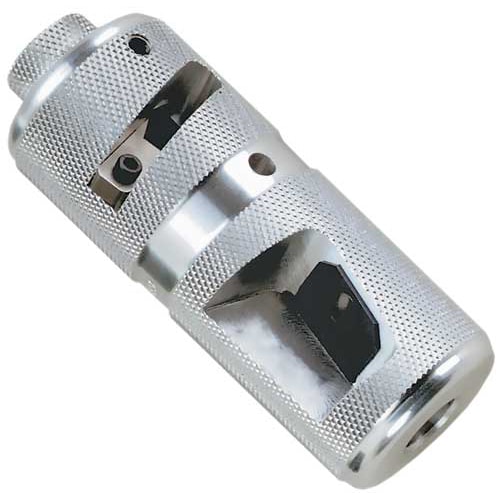

- Image: Photo 1: WS 7 5-35 kV URD Cable Insulation Penciling Tool
- Document: WS 7 & WS 8 Instruction Sheet
- Catalog: Full Utility Catalog
Overview
- Designed to quickly taper 5 to 35 kV URD cables in various fixed sizes ranging from #8 AWG to 1,000 kcmil (10 mm² to 500 mm²) without conductor damage
- Suited for XLPE, polyethylene & some EPR insulations
- Compatible with the SW 2 Series Ratchet Wrench for extra turning leverage
Compatibility
| Cable Compatibility | Primary Distribution Underground |
|---|---|
| Cable Access | End |
| Insulation Materials | XLPE, EPR, PE |
| Min. Voltage | 5 kV |
| Max. Voltage | 35 kV |
Specifications
| Length | 5″ (127 mm) |
|---|---|
| Weight | 1 lb (454 g) |
Comparison Chart
| MODEL | PART # | REPLACEMENT BLADE PART # | INSULATION DIAMETER | CABLE SIZE | SHAVE LENGTH |
|---|---|---|---|---|---|
| WS 7 | 10900-XXX | 10921 | 0.725″ - 1.21″ (18.4 - 30.7 mm) | Select From #8 AWG to 350 kcmil | 2.5″ (63.5 mm) Taper |
| WS 8 | 11100-XXX | 10921 | 1.2″ - 1.9″ (30.5 - 48.3 mm) | Select From 300 kcmil to 1000 kcmil | 2.5″ (63.5 mm) Taper |
| WS 7A | 16610-XXX | 10919 | 0.725″ - 1.21″ (18.4 - 30.7 mm) | Select From #8 AWG to 350 kcmil | 1.5″ (38 mm) Taper |
| WS 8A | 16620-XXX | 10919 | 1.2″ - 1.9″ (30.5 - 48.3 mm) | Select From 300 kcmil to 1000 kcmil | 1.5″ (38 mm) Taper |
