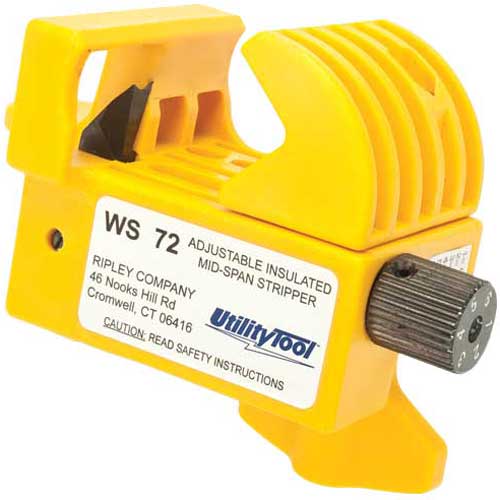

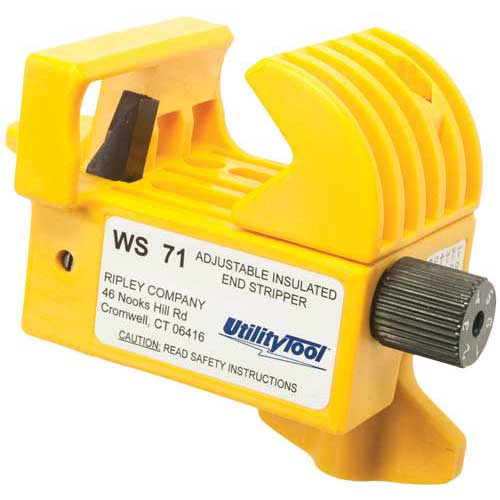

WS 71 & WS 72 Series

Adjustable 600V Secondary Cable Strippers

Designed for easy visibility and a range of insulation thicknesses.

See all distributors

Part No: Refer to Chart

Share this product

Downloads

Overview

  • Lightweight stripping tool designed to strip 0.5″ to 1.3″ (12.7 to 33 mm) diameter 600 volt secondary cable ends
  • Equipped with indexing blade positions for stripping a range of insulation thicknesses
  • Bright yellow color for easy visibility, as well as impact-resistant polymer construction for durability
  • Interchangeable WS 71 & WS 72 Series blades for mid-span & end stripping
  • Quick-release adjustment simplifies sizing the cable diameter

Compatibility

Cable Compatibility Secondary Distribution
Color Yellow
Cable Access Mid-Span, End
Max. Voltage 600 V

Specifications

Material Impact-Resistant Polymer
Dimensions 5″ x 4″ x 2.5″ (127 x 102 x 64 mm)
Weight 9.3 oz (263 g)

Comparison Chart

MODEL PART # REPLACEMENT BLADE PART # MIN. CABLE OUTER DIAMETER MAX. CABLE OUTER DIAMETER INSULATION THICKNESS
WS 71 42120 10302 0.5″ (12.7 mm) 1.3″ (33 mm) 45 mils
60 mils
80 mils
95 mils
110 mils
WS 72 42130 42137 0.5″ (12.7 mm) 1.3″ (33 mm) 45 mils
60 mils
80 mils
95 mils
110 mils
