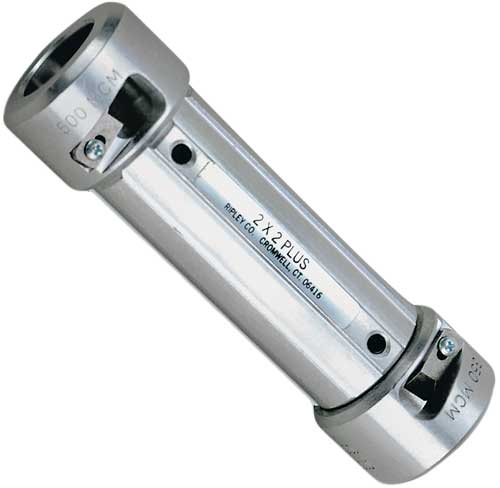

2×2 Plus Series

600V Cable Stripper with 2 Cable Bushings

Designed for efficient and precise 600V secondary cable stripping.

Part No: Refer to Chart

Share this product

  • Double-sided design accommodates two bushings that easily change out with a hex wrench
  • Efficiently & precisely strip 600V secondary cable without damaging the conductor, even in cold climates
  • Compatible square or chamfer cut bushings for stripping 45 mil to 95 mil secondary insulations with concentric, compressed or compacted conductors #6 AWG to 750 kcmil
  • Guarded bushing cutting blades prevent injury

NOTE: The 2×2 Plus is available with or without bushings. Select square or chamfer cut bushings from the bushings below. Please specify two bushings when ordering the 2×2 Plus.

Compatible Bushings

Conductor Type Concentric, Compressed, Compacted
Cable Compatibility Secondary Distribution
Cable Access End
Min. Cable Outer Diameter #6 AWG
Max. Cable Outer Diameter 750 kcmil
Max. Voltage 600 V
Insulation Thickness 45 mils, 60 mils, 80 mils, 95 mils
Max. Bushing Capacity 2
2x2 Plus 36101H Tool Body Only 5.75″ (146 mm) 8 oz (227 g)
