ACS+ Series

Cable Slitter for Armored & Heavy-Duty Cable

Professional-grade tool for armored fiber feeder, central tube and stranded loose tube fiber optic cables and other non-fiber armored cables.

See all distributors

Part No: Refer to Chart

GTIN: 856848006632

Share this product

Downloads

Overview

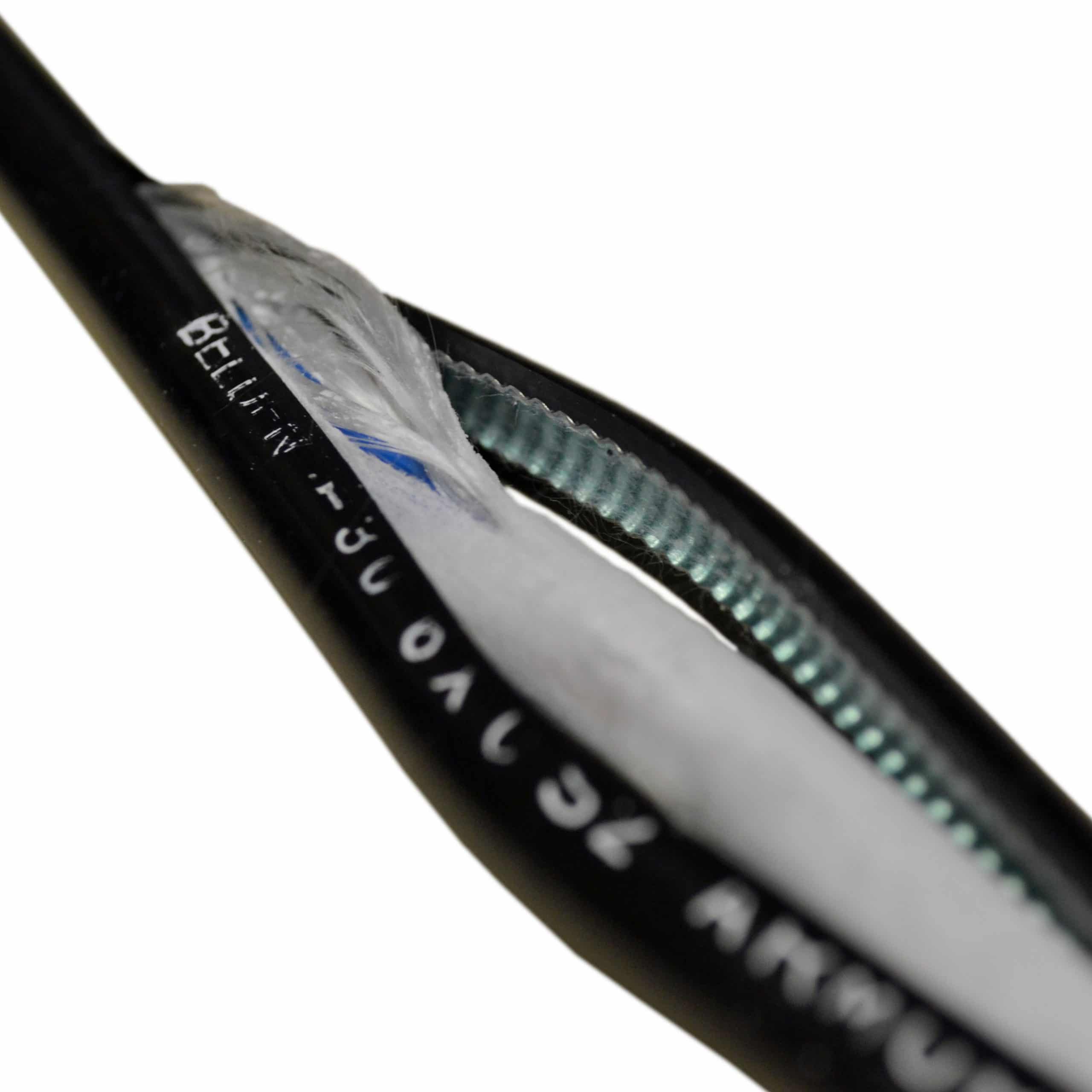

Introducing the patent-pending Miller® ACS Plus – a professional-grade tool that has all the functionality of the trusted Miller® ACS and ACS-2, and then some! Designed for use on armored fiber feeder, central tube & stranded loose tube fiber optic cables, as well as various other non-fiber armored cables, the ACS Plus easily cuts through the polyethylene jacket and corrugated copper, steel or aluminum armor layer in one smooth step.

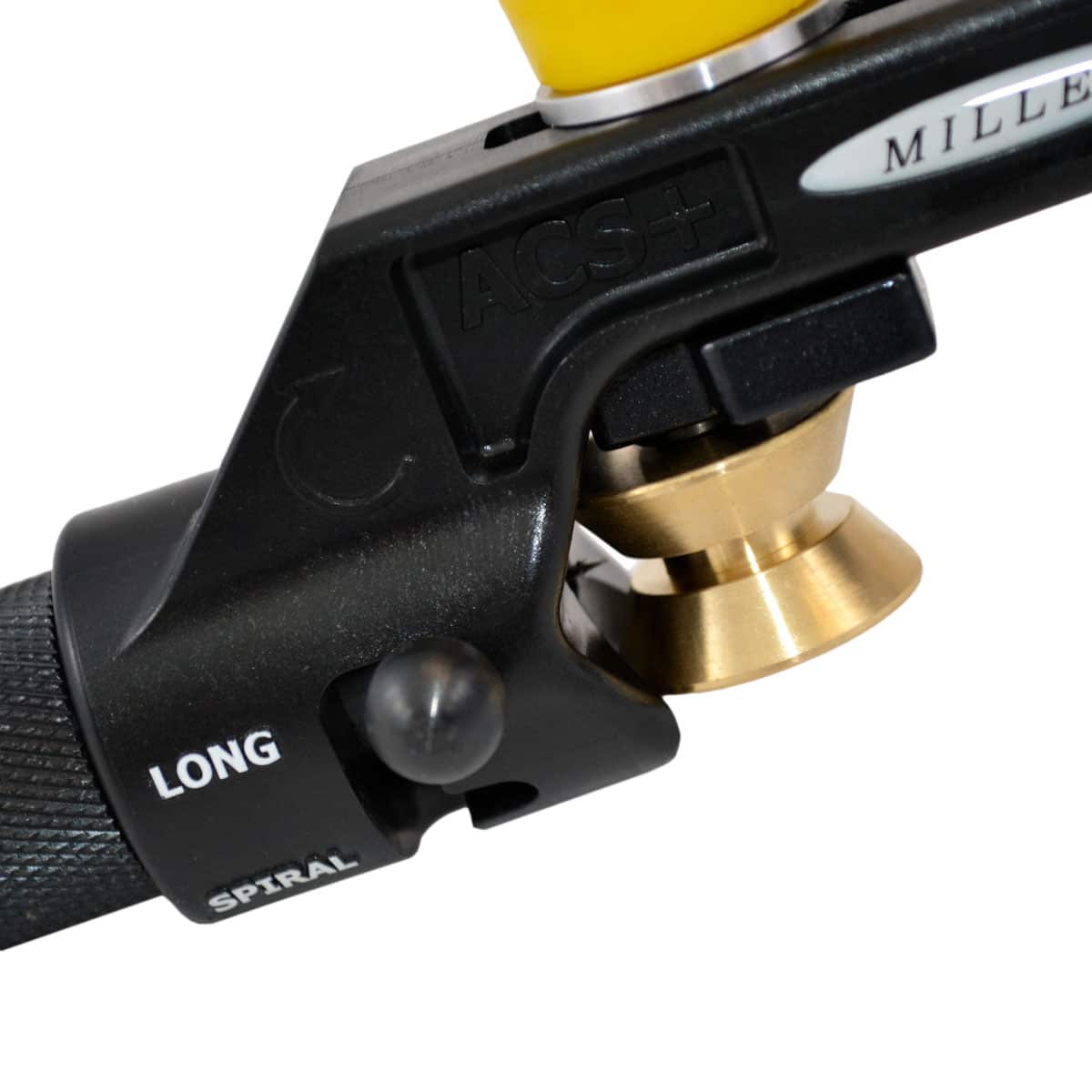

  • Ergonomic design features a spring-loaded roller assembly with tension adjustment knob for faster precision cuts

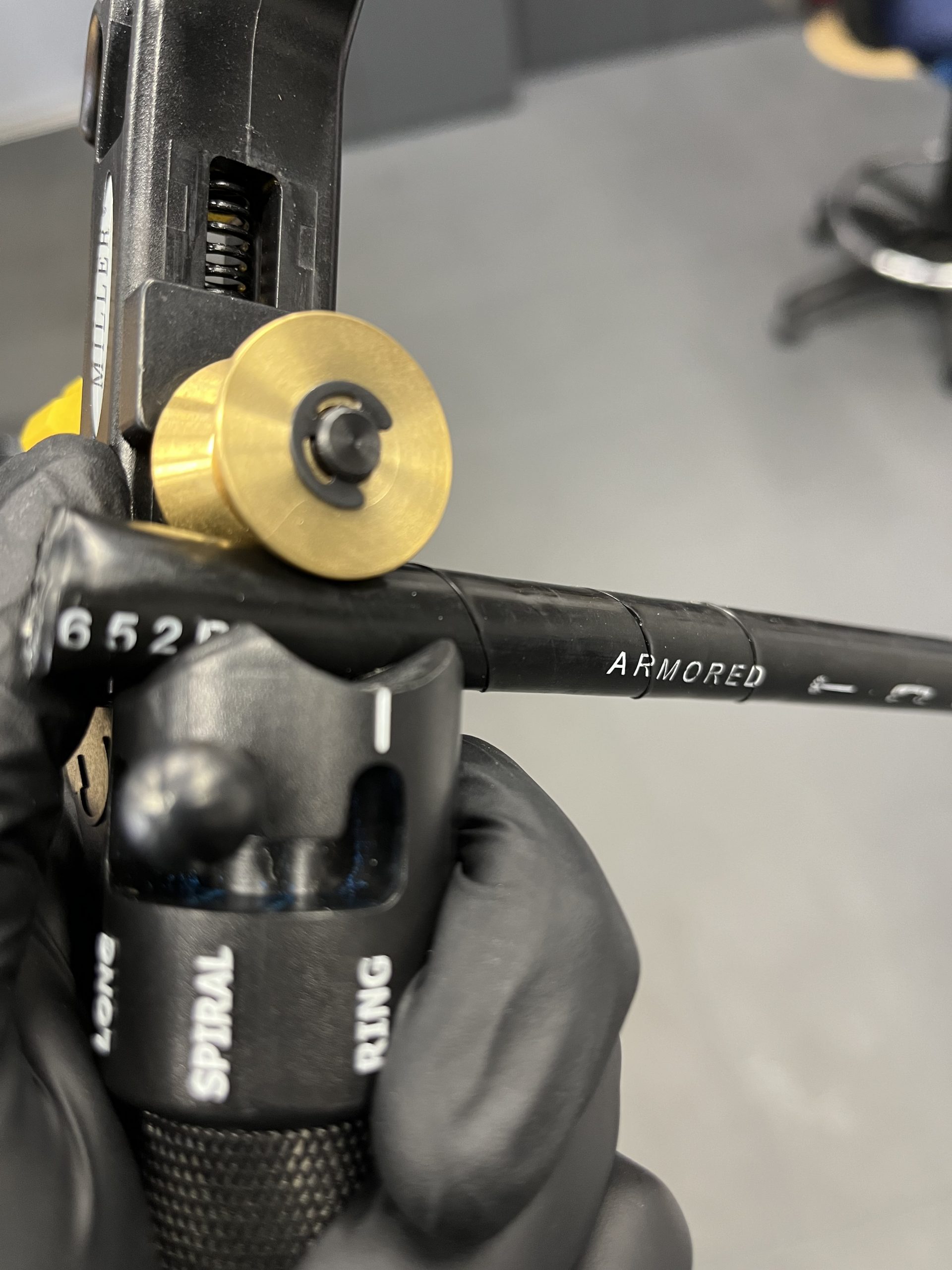

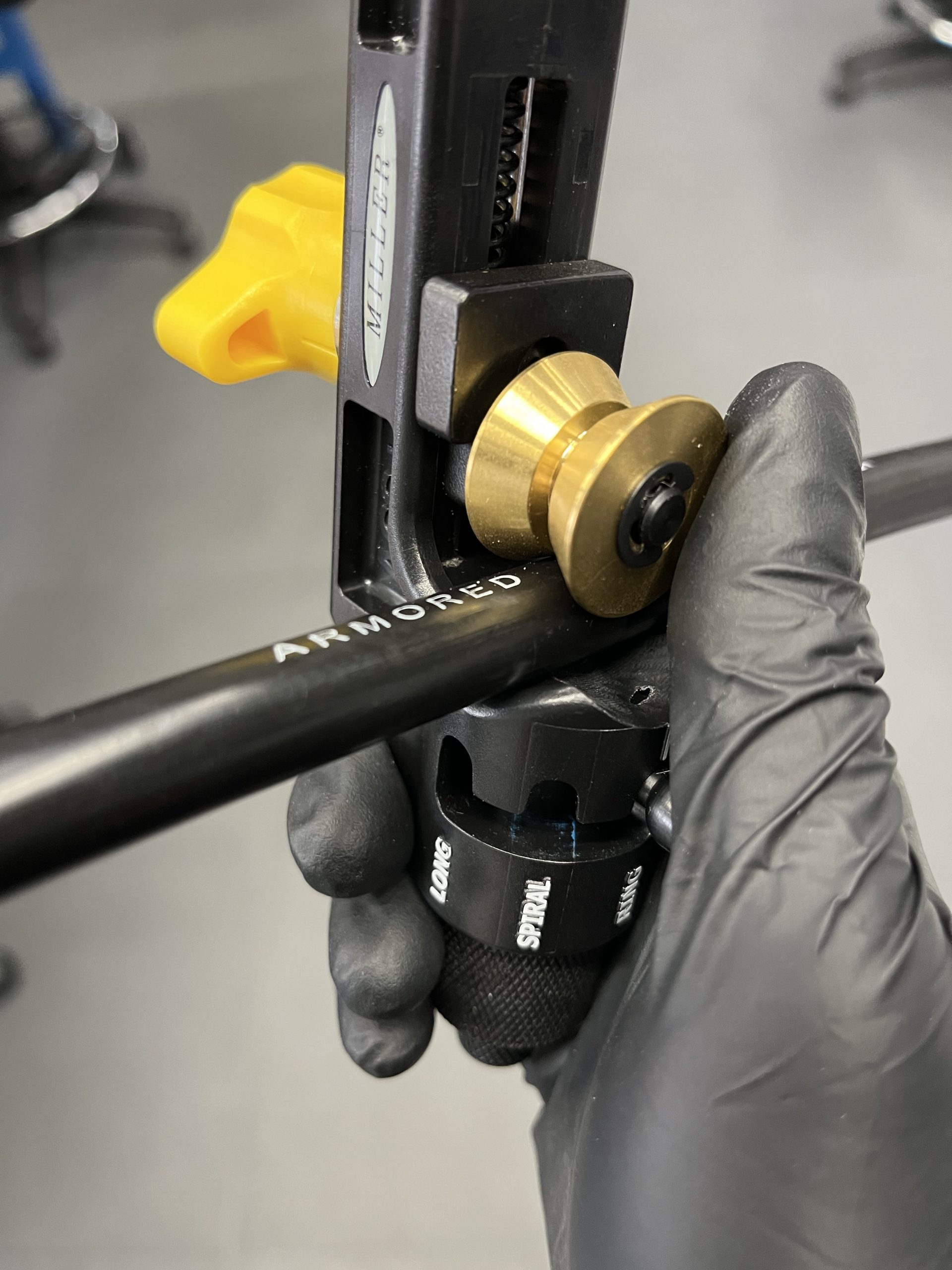

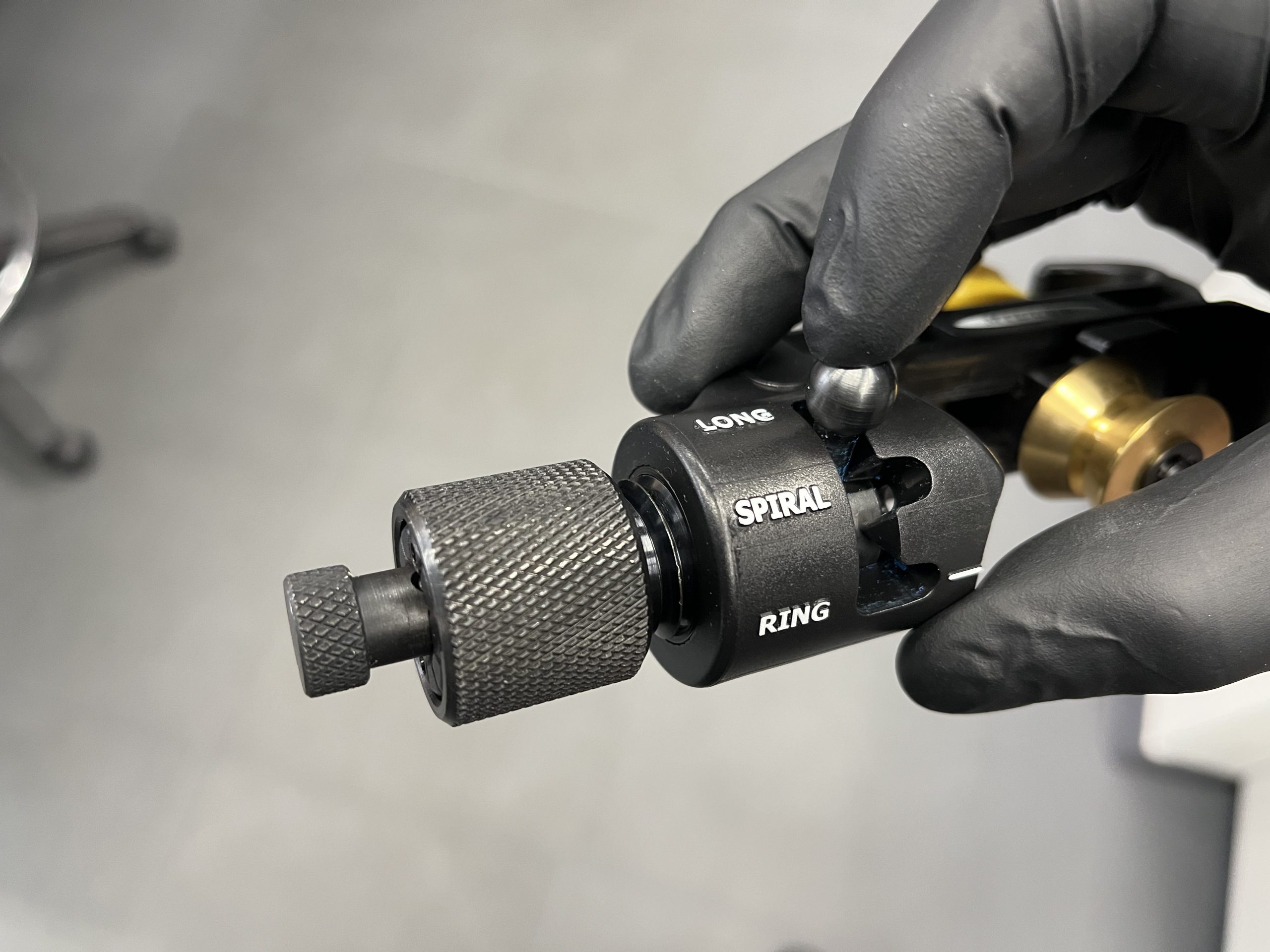

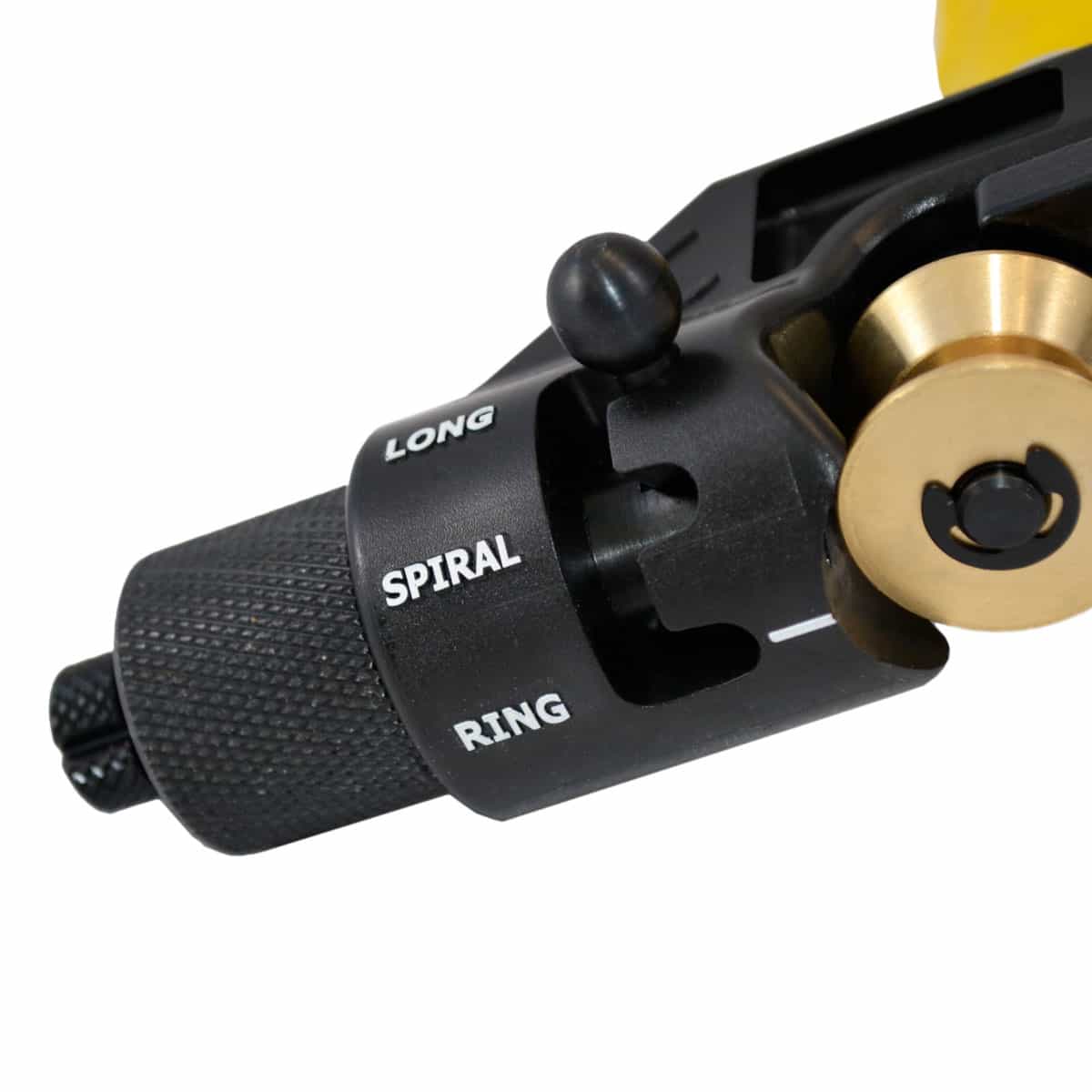

  • Performs longitudinal, circumferential (ringing) & spiral cuts
  • Replaceable, heavy-duty steel blade is easily adjusted in 0.004″ increments without any additional tools

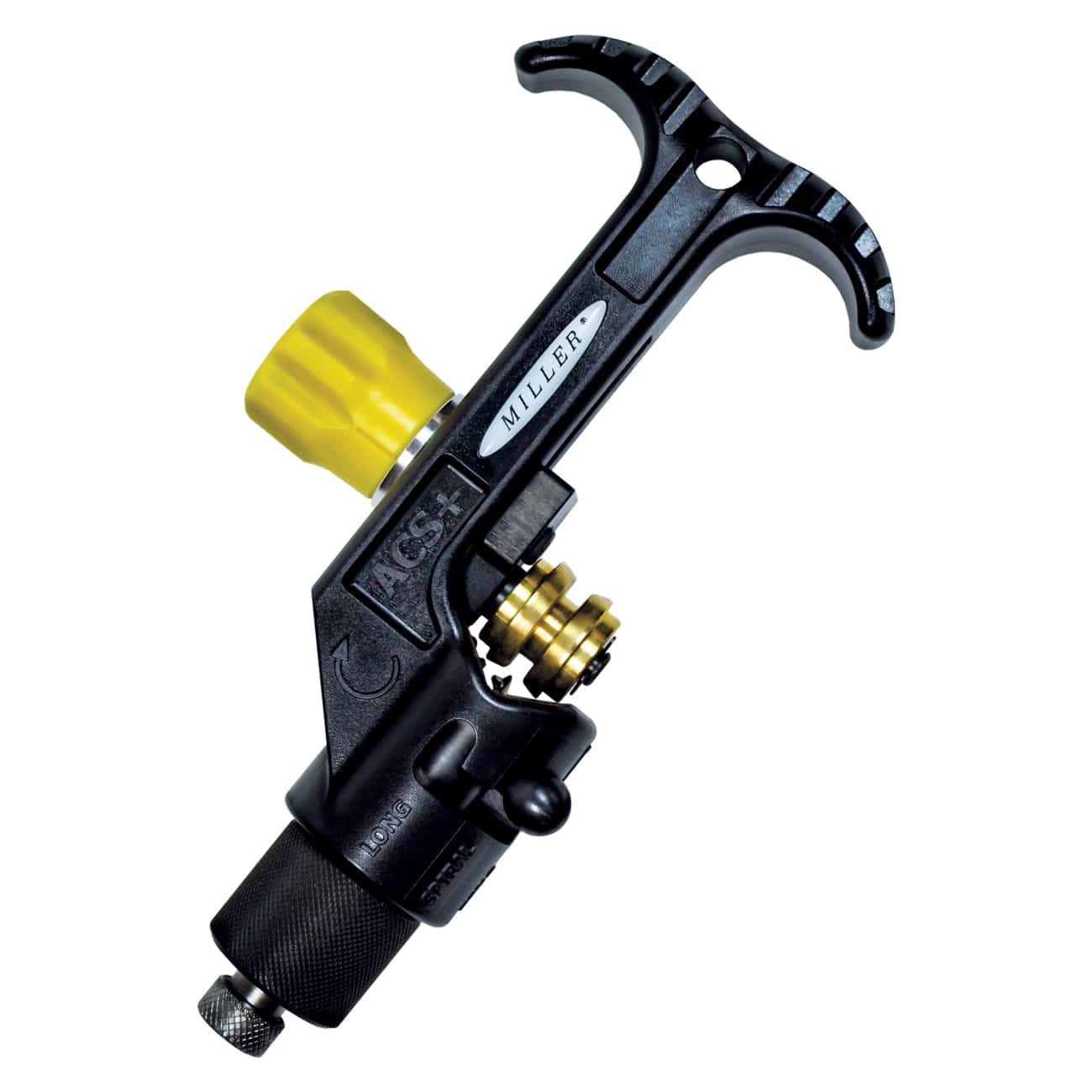

  • Lightweight & glass-reinforced injection molded body has a curved “T” handle design for improved grip & leverage during longitudinal & ring cuts

Compatibility

Cable Access Mid-Span, End
Cable Material Armored Corrugated Copper, Armored Steel, Armored Aluminum

Specifications

Length 5″ 127 mm
Weight 10 oz (284 g)
Replacement Blade Part # 37884

Comparison Chart

MODEL PART# CABLE DIAMETERS ADJUSTABLE BLADE DEPTH
ACS+ Cable Slitter for Armored & Heavy-Duty Cable MB05-7000 0.157″ - 1.125″ (4 - 28.6 mm) Up to 0.22″ (5.5 mm)
ACS+ Extended Cable Slitter for Armored & Heavy-Duty Cable, including Corning® RocketRibbon MB05-7015 0.196" - 1.125" (5 - 28.6 mm) Up to 0.27″ (7 mm)
