DDT Series

Dual Drop Cable Trimmer

One-step combination tool.

See all distributors

QuickShip Available QuickShip Available

Part No: Refer to Chart

Share this product

Downloads

Overview

  • Combination tool allows cable preparation of 59, 6, 7, 9, N48 & 11 coax cable (std, tri & quad) without the need to change out color-coded blade cassette
  • DDT-UTP model prepares CAT5, CAT5E, CAT6 & larger 10G UTP/STP type cables in one combination tool
  • One-step preparation exposes center conductor by 5/16″ (7.6 mm) & removes 1/4″ (6.35 mm) of jacket
  • Superior quality tool steel blade cassettes will perform 3500+ preparations under normal use
  • Built-in polymer braid brush & strip stop

Compatibility

Cable Access End
Conductor Exposure 5/16ʺ (7.93 mm)
Jacket Removal Length 1/4ʺ (6.35 mm)

Specifications

Material Impact-Resistant Polymer
Patent Number(s) U.S. Patent No. 5,713,132
Length 3.63″ (92.2 mm)
Weight 2 oz (57 g)

Comparison Chart

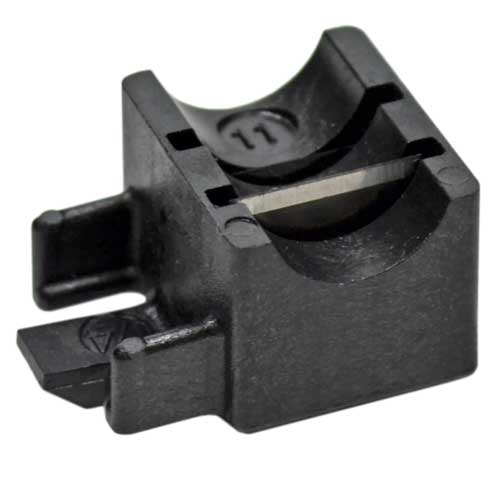

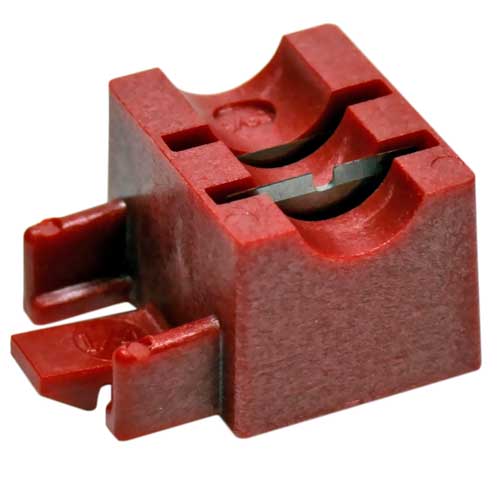

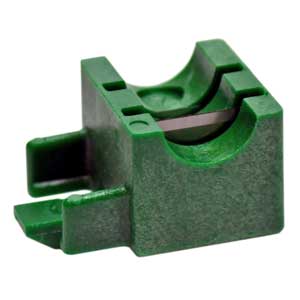

MODEL PART # GTIN CABLE TYPE STRIP STOP DE-BURR TOOL CASSETTE COLOR REPLACEMENT BLADE CASSETTE REPLACEMENT BRUSHES
DDT-596/7 42185 59/6
7
N48		 Built-In Built-In Red/Green 35241
35242		 42679 (Set of 5)
DDT-596/11 38590 QuickShip Available 856848006021 59/6
11
N48		 Built-In Built-In Red/Black 35241
35243		 42679 (Set of 5)
DDT-EUR/11 42012 59/6
9
11 N48		 Built-In Built-In Orange 42004 42679 (Set of 5)
DDT-UTP 42452 CAT 5/5E/6
CAT 10G		 Built-In Built-In Yellow/Green 42687
42768		 42679 (Set of 5)
DDT-596/MINI 38591 QuickShip Available 59/6
N35
N48
Mini 22-24 AWG		 Built-In Built-In White 38587 42679 (Set of 5)
DDT-596/MINI-1 42311 59/6
N35
Mini 24-26 AWG		 Built-In Built-In Tan 42314 42679 (Set of 5)
DDT-EUR/MINI 42018 59/6
9
N35
N48
Mini 22-24 AWG		 Built-In Built-In White 38587 42679 (Set of 5)
DDT-EUR/MINI-1 42327 59/6
9
N48
Mini 24-26 AWG		 Built-In Built-In Tan 42314 42679 (Set of 5)
