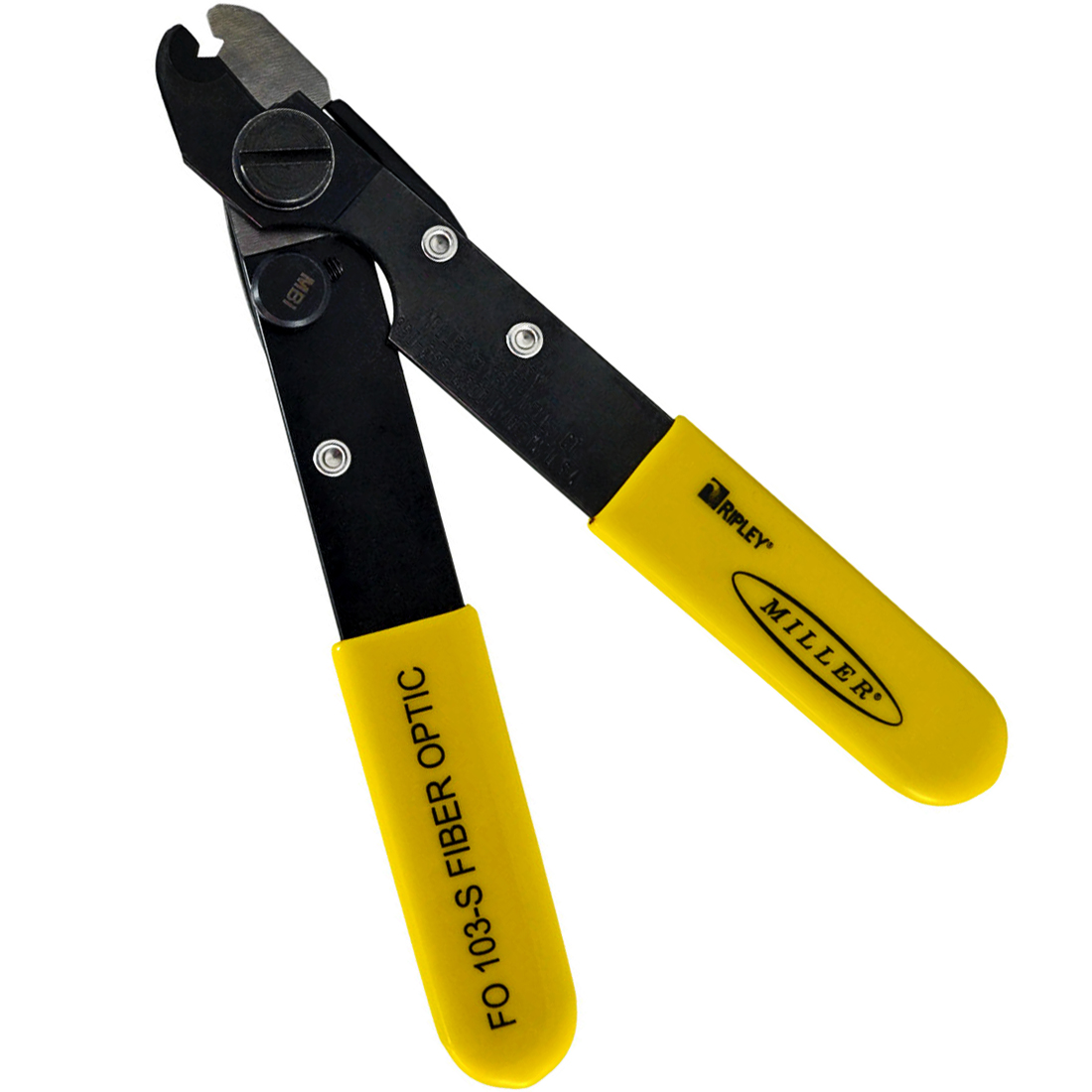

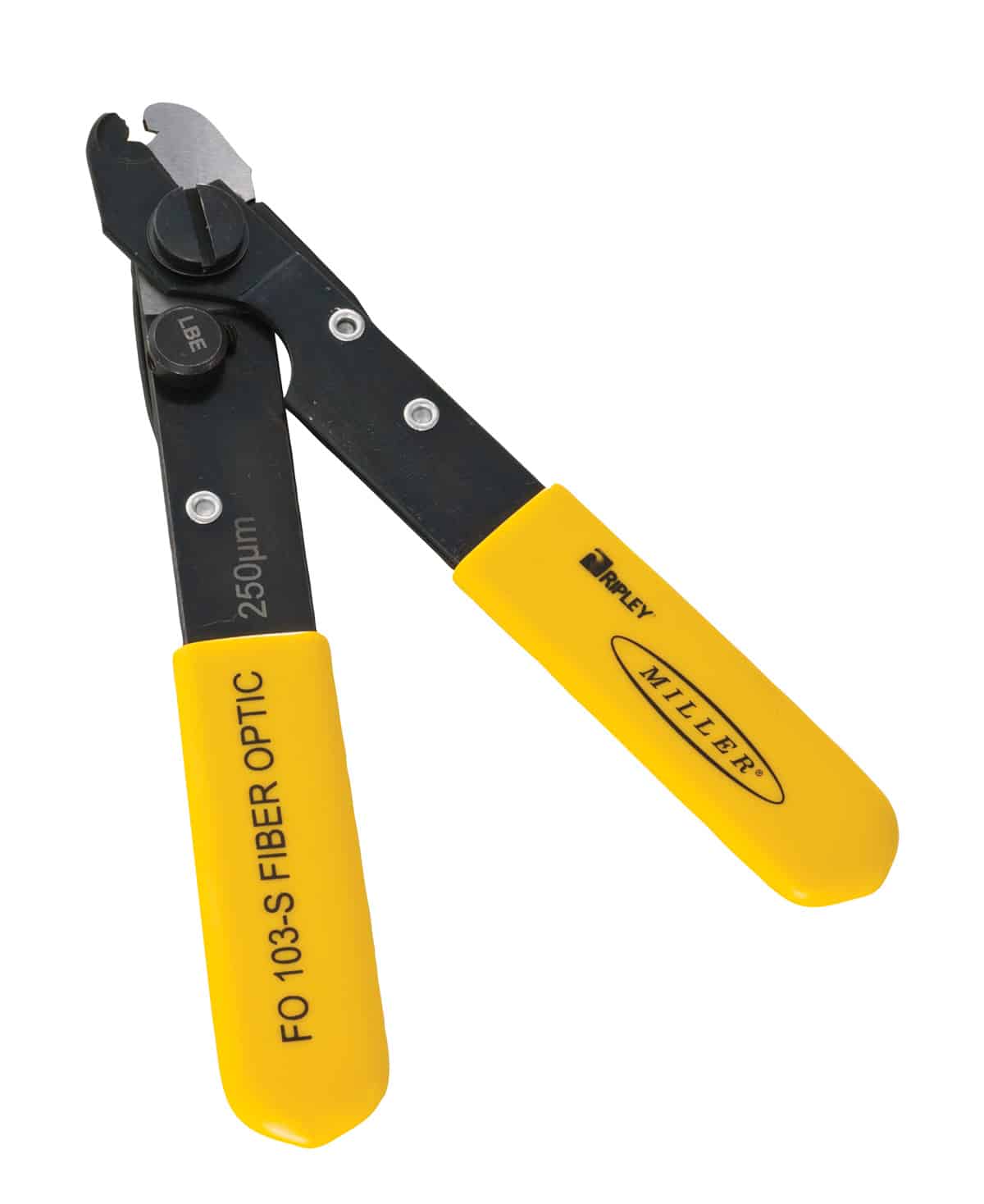

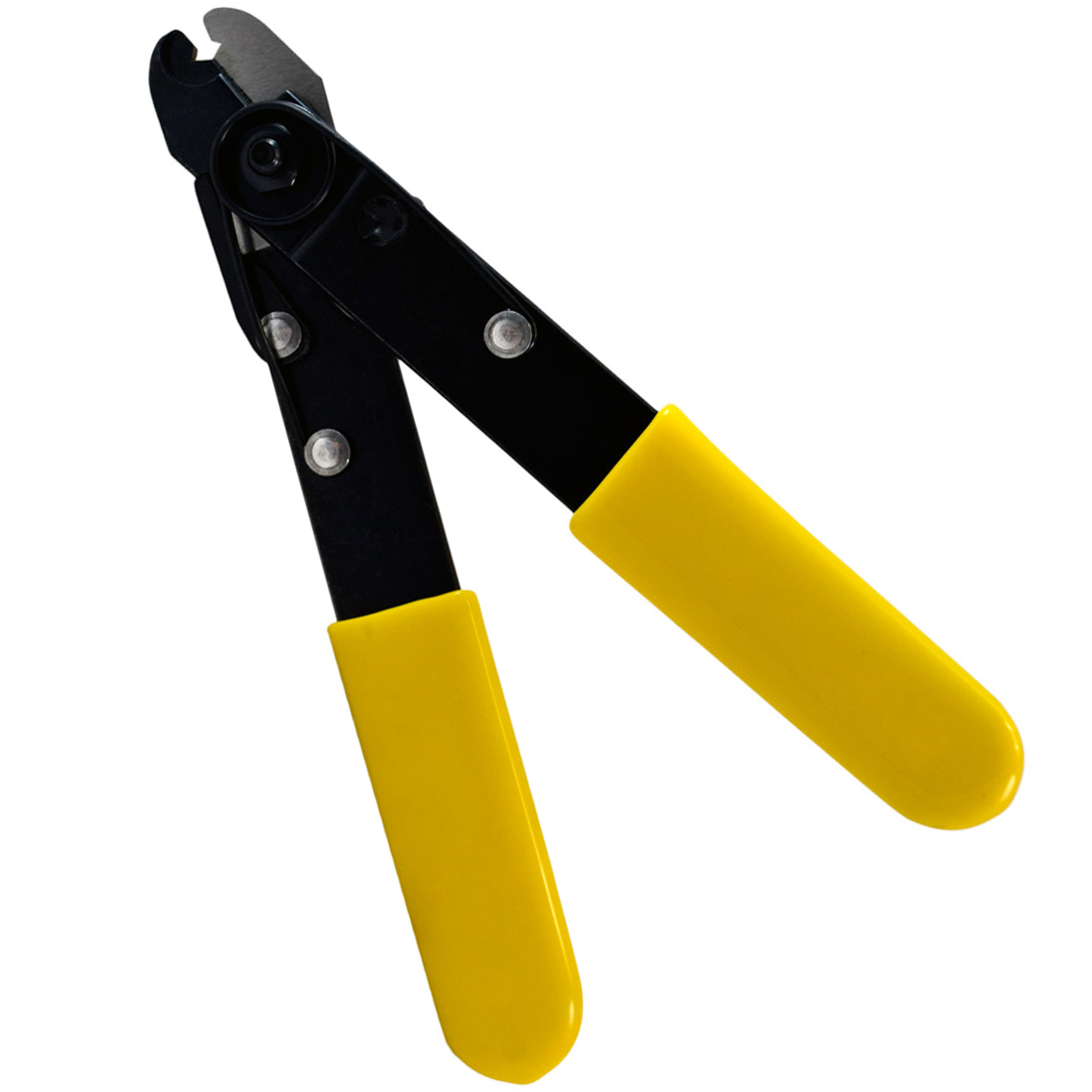

FO 103-S Series

1 Hole Fiber Optic Stripper

Compact, single-hole design for efficient fibre buffer coat stripping.

QuickShip Available QuickShip Available

Part No: 80355

Share this product

  • Singular hole design efficiently strips away the buffer coating from the bare fiber in one compact tool that is factory-set & requires no adjustment
  • Manufactured to precise tolerances, its diameter holes & V-openings in blade allow for accurate & clean stripping without scratching or nicking the bare fiber
  • Pivot pin, spring & precision handles with printed stripping reference enhance the functionality & durability of the tool
Length 5.375ʺ (137 mm)
Weight 2.5 oz (71 g)
Model Part # GTIN Nominal Tool Hole Diameter Model Type
FO 103-S 80355 QuickShip Available 856848006397 For Stripping 250 µm Buffer Coating From 125 µm Optical Fiber Standard
FO 103-S-100 80355-1 114 µm (0.0045″) Custom
FO 103-S-140 80355-15 140 µm (0.0055″) Custom
FO 103-S-150 80355-2 150 µm (0.0060″) Custom
FO 103-S-162 80355-3 162 µm (0.0066″) Custom
FO 103-S-175 80355-4 175 µm (0.0070″) Custom
FO 103-S-187.5 80355-5 187.5 µm (0.0075″) Custom
FO 103-S-200 80355-10 856848006151 200 µm (0.0080″) Custom
FO 103-S-225 80355-12 225 µm (0.0090″) Custom
FO 103-S-250 80355-6 250 µm (0.0100″) Custom
FO 103-S-280 80355-7 280 µm (0.0110″) Custom
FO 103-S-300 80355-8 300 µm (0.0120″) Custom
FO 103-S-400 80355-16 400 µm (0.0160″) Custom
FO 103-S-525 80355-9 525 µm (0.0210″) Custom
FO 103-S-880 80355-17 880 µm (0.0350″) Custom
FO 103-S-1140 80355-18 1140 µm (0.0450″) Custom
