Infinity

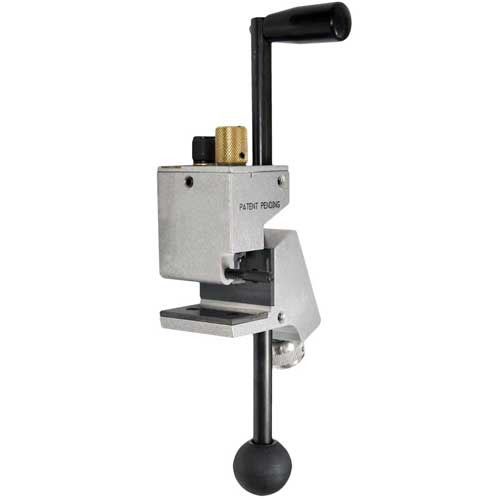

Adjustable Cable Stripper

Designed for mid-span and end stripping on primary and secondary utility cables.

Part No: Refer to Chart

Share this product

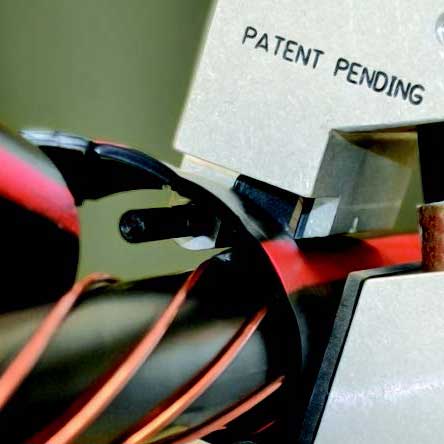

Introducing the industry’s most versatile, reliable and accurate adjustable tool for mid-span and end stripping on primary and secondary utility cables. It’s the one tool everyone needs on the job!

  • Eliminates the need for traditional stripping knives, reducing the risk of cuts or lacerations.
  • Heavy duty tool easily removes jacket & various types of insulation materials.
  • Easily adjusts for 0.5″ to 2.5″ (12.7 mm to 63.5 mm) cable diameters.

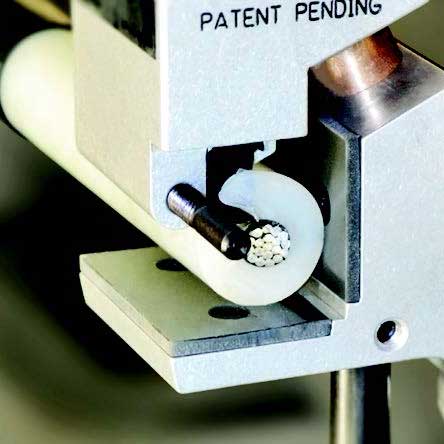

  • Patent-pending, self-aligning design maintains optimum blade position to produce precise cuts for reliable splices & unions.
  • Well-balanced tool has low friction parts & ergonomic handles to reduce effort & potential strain from repetitive stripping functions.

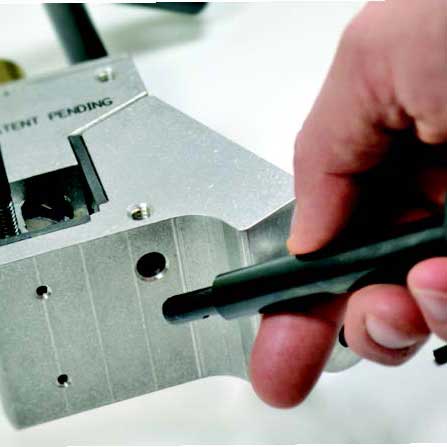

  • Recessed blade increases safety & is easily replaced.

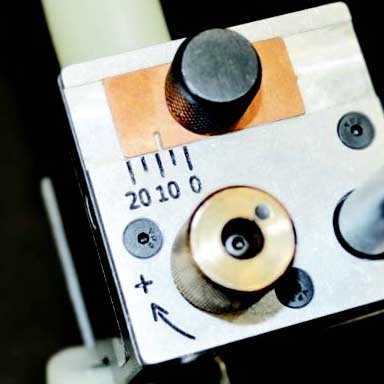

  • Blade depth & angle are adjustable for greatest range of applications.
  • Detachable, ergonomic handles for use in tight spaces.
  • Standard & EPR optimized blades easily accommodate various jacket & insulation materials.
  • Optional blade depth gauge provides positive depth control while making blind cuts during mid-span applications.
Cable Compatibility Primary Distribution Overhead, Primary Distribution Underground, Secondary Distribution, Tree Wire, Spacer Cables
Cable Access Mid-Span, End
Min. Cable Outer Diameter 0.5″ (12.7 mm)
Max. Cable Outer Diameter 2.5″ (63.5 mm)
Min. Voltage 600 V
Max. Voltage 35 kV
Material Aluminum
Length 12″ (304.8 mm)
Weight 3 lb (1.36 kg)
MODEL PART # GTIN ITEM TYPE HANDLES REPLACEMENT BLADE PART #
US01 Standard US01-7000 856848006885 Tool w/ Handles 1 Rotating Handle 1 Ball Handle US01-7501
US01 w/ Ball Handles US01-7001 Tool w/ Handles 2 Ball Handles US01-7501
US01 w/ Depth Gauge US01-7002 Tool w/ Handles 1 Rotating Handle 1 Ball Handle US01-7501
US01 EPR Optimized US01-7005 Tool w/ Handles 1 Rotating Handle 1 Ball Handle US01-7505
Rotating Handle Assembly US01-7502 Handle Assembly Only 1 Rotating Handle N/A
Ball Handle Assembly US01-7503 Handle Assembly Only 1 Ball Handle N/A
Blade Depth Gauge Kit US01-7504 Add-Ons N/A N/A
