MSAT® 16 Series
MSAT® Series

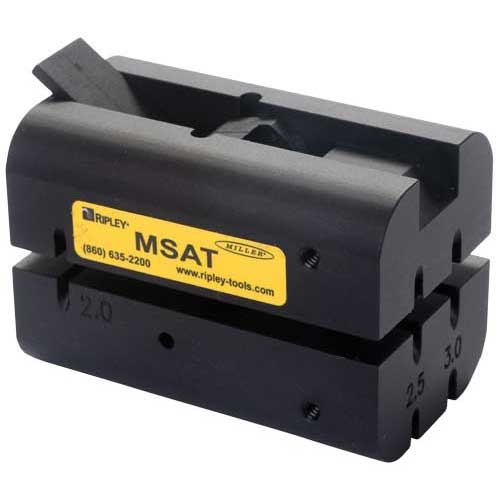

3-Channel Mid-Span Fiber Access Tool
Designed for quick access to fiber in 2, 2.5 & 3 mm buffer tubes.
Part No: 80785
GTIN: 856848006250
Share this product
Downloads
- Image: Photo 1: MSAT Mid-Span Fiber Access Tool
- Document: MSAT Instruction Sheet (EN)
- Document: MSAT Instruction Sheet (ES)
- Catalog: Full Broadband Catalog
Overview
- 3 convenient slitting channels quickly access fiber in 2, 2.5 & 3 mm buffer tubes
- Sizing channels on the tool body determine the proper diameter channel
- Spring-loaded lever opens the tool body & remains flush when the tool is closed
- Factory-set blades require no adjustments
Compatibility
| 2.0 MM | 2.5 MM | 3.0 MM |
|---|---|---|
| 0.071″ - 0.086″ (1.9 - 2.1 mm) | 0.090″ - 0.110″ (2.4 - 2.6 mm) | 0.110″ - 0.126″ (2.9 - 3.1 mm) |
| Buffer Tube Diameter: | 0.071″ - 0.126″ (1.9 - 3.1 mm) |
|---|
Specifications
| Length | 2.5″ (63.5 mm) |
|---|---|
| Weight | 8 oz (226.7 g) |
| Replacement Blade Part # | 80794 |
