MSAT® All Access Kit – CFS-3
MSAT® 16 Series
16-Channel Mid-Span Fiber Access Tool
Designed to easily size and access fibers in loose tube cables ranging from 1 to 3 mm diameters in mid-span applications.
Part No: MB01-7000. GTIN: 856848006540
Share this product
Introducing the new MSAT® 16, an exciting new solution designed to easily size and access fibers in loose tube cables ranging from 1 to 3 mm diameters in mid-span applications.
- Safe, compact & ergonomic design fits comfortably in hand for easy operation without risk of injury.

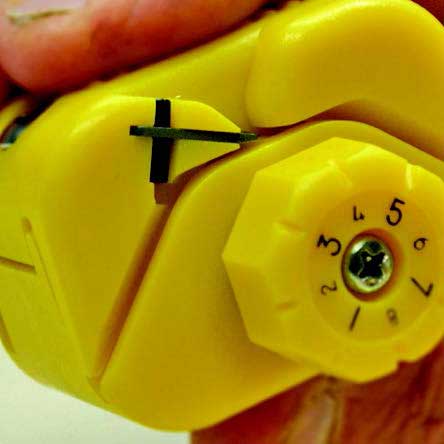

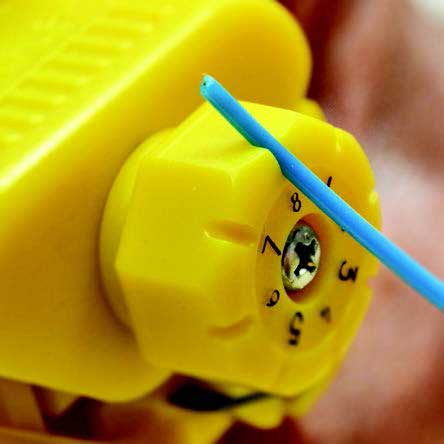

16 unique diameter settings accommodate loose tubes ranging from 1 mm to 3 mm. - Convenient built-in sizing channels quickly determine proper setting for a wide variety of loose tube cables.

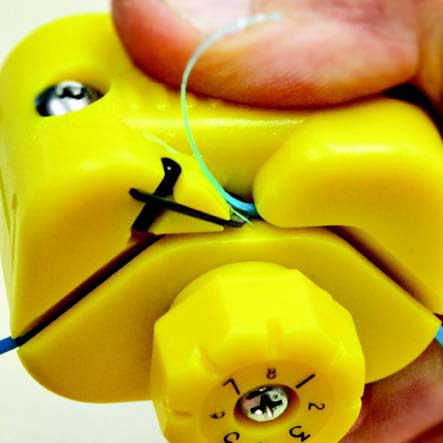

- Patent-pending design features a self-aligning, easy-to-load buffer tube channel that supports & guides the tube through precision shaving operation.
- Rugged polymer construction is lightweight & durable.
- Spring-loaded design eliminates need to lock or clamp tool while in use.

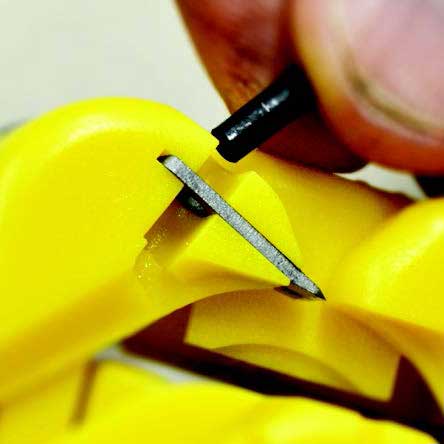

- Fixed stainless steel blades require no adjustments and replace easily.
Compatibility
| Buffer Tube Diameter | 0.039″ - 0.118″ (1.0 - 3.0 mm) |
|---|---|
| Branded compatible cables | OFS EZ-Bend® 3.0 mm cable, Corning's outdoor ALTOS® loose tube, Microduct MiniXtend® HD and MiniXtend® cable with binderless FastAccess® Technology, indoor/outdoor FREEDM® and LSZH® loose tube cables, PPC Semiflex 3 mm cable, and other similar style cables |
Specifications
| Material | Impact-Resistant Polymer |
|---|---|
| Patent Number(s) | U.S. Patent No. 10,459,185 |
| Dimensions | 1.875″ x 2.75″ x 2.25″ (47.6 x 69.9 x 57.2 mm) |
| Weight | 3.2 oz (90.7 g) |
| Replacement Blade Part # | MB01-7500 |
Downloads
- Document: MSAT 16 Sale Sheet (EN)
- Document: MSAT 16 Sale Sheet (ES)
- Document: MSAT 16 Blade Replacement Instruction Sheet (EN)
- Document: MSAT 16 Instruction Sheet (EN)
- Document: MSAT 16 Instruction Sheet (ES)
- Document: MSAT 16 Blade Replacement Instruction Sheet (ES)
- Catalog: Full Broadband Catalog
