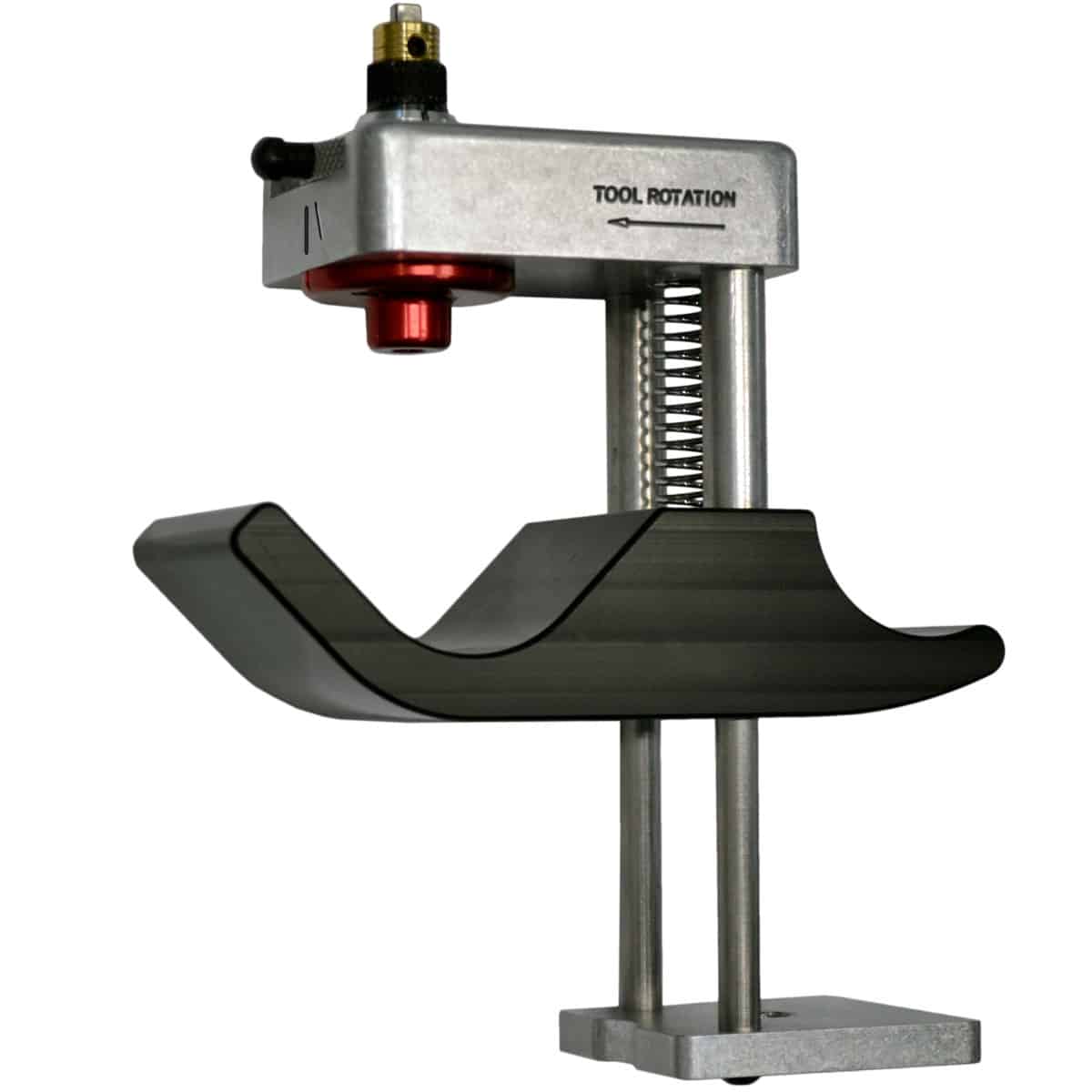

SCS MAX Series
SCS Series
Adjustable Cable Semi-Con Scoring Tool
Compact and user-friendly scoring tool.
Part No: Refer to Chart
Share this product
Downloads

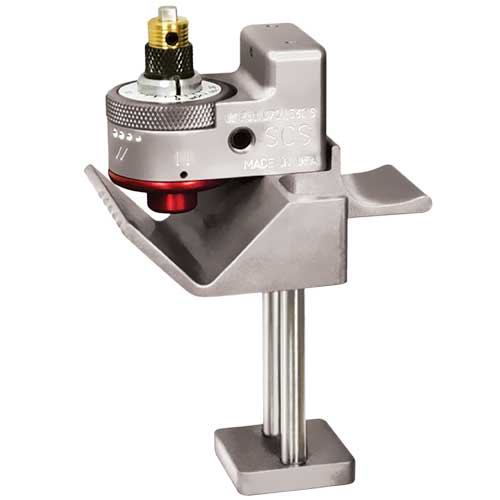

- Image: Photo 1: SCS Adjustable 5-35 kV Cable Semi-Con Scoring Tool
- Document: SCS Sale Sheet (EN)
- Document: SCS Sale Sheet (ES)
- Document: SCS Instruction Sheet (EN)
- Document: SCS Instruction Sheet (ES)
- Catalog: Full Utility Catalog
Overview
- Compact & user-friendly scoring tool scores semi-con on all medium voltage 5 to 35kV cables without damaging the insulation
- Accommodates cable diameters from 0.31″ to 2.0″ (8 to 51 mm)

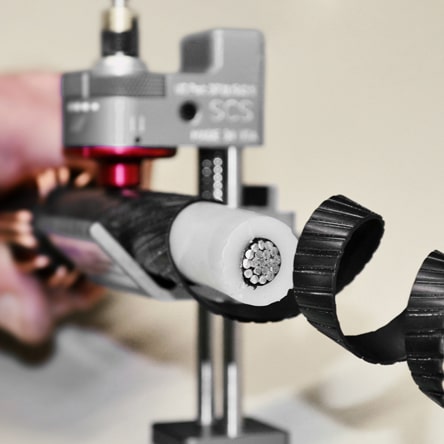

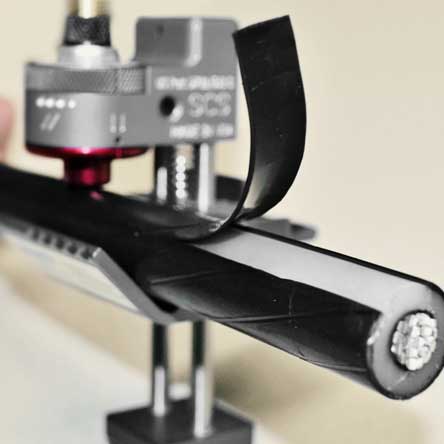

- Capable of performing longitudinal, spiral & calibrated square cuts

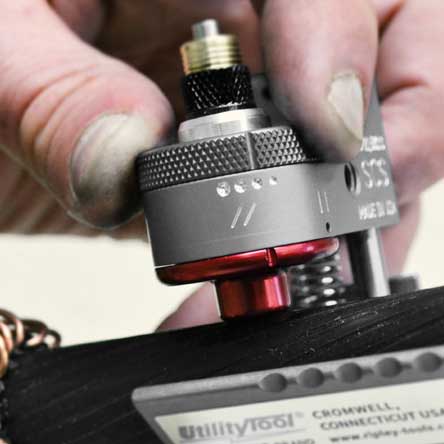

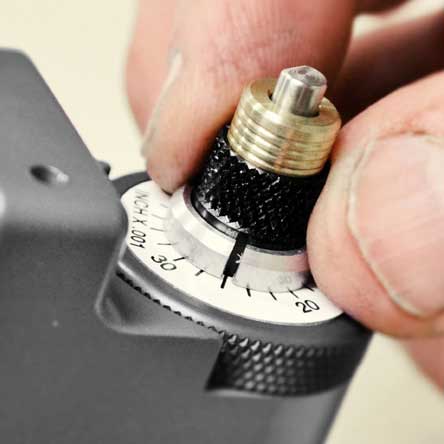

- Precise blade depth adjustment provides accurate semi-con scoring
- Operates in a 2″ (51 mm) envelope on larger cables
- Easy blade replacement
SCS
- Standard cable guide
- General purpose semi-con scoring for most medium voltage cable constructions
SCS V2
- Narrowed cable guide suitable for sheathed & jacketed 3 phase assemblies
- Allows for better control on highly bowed or curved cable
Compatibility
| Cable Compatibility | Primary Distribution Underground |
|---|---|
| Cutting Type | Spiral, Longitudinal, Calibrated Square Cuts |
Specifications
| Cable Access | End |
|---|---|
| Min. Voltage | 5 kV |
| Max. Voltage | 35 kV |
| Patent Number(s) | U.S. Patent No. D721,563 |
| Shaves Semi-Con | Yes |
| Length | 5″ (127 mm) |
| Weight | 9.6 oz (270 g) |
| Replacement Blade Part # | 43645 |
Comparison Chart
| MODEL | PART # | SCALE | SCALE INCREMENTS | MIN. CABLE OUTER DIAMETER | MAX. CABLE OUTER DIAMETER | ADJUSTABLE BLADE DEPTH |
|---|---|---|---|---|---|---|
| SCS (Metric) | 43625 | Metric | 0.05 mm | 8 mm | 51 mm | 0 - 4 mm |
| SCS (Inch) | 43630 | Imperial | 0.002″ | 0.31″ | 2.0″ | 0″ - 0.16″ |
| SCS V2 (Metric) | 43650 | Metric | 0.05 mm | 8 mm | 51 mm | 0 - 4 mm |
| SCS V2 (Inch) | 43651 | Imperial | 0.002″ | 0.31″ | 2.0″ | 0″ - 0.16″ |
