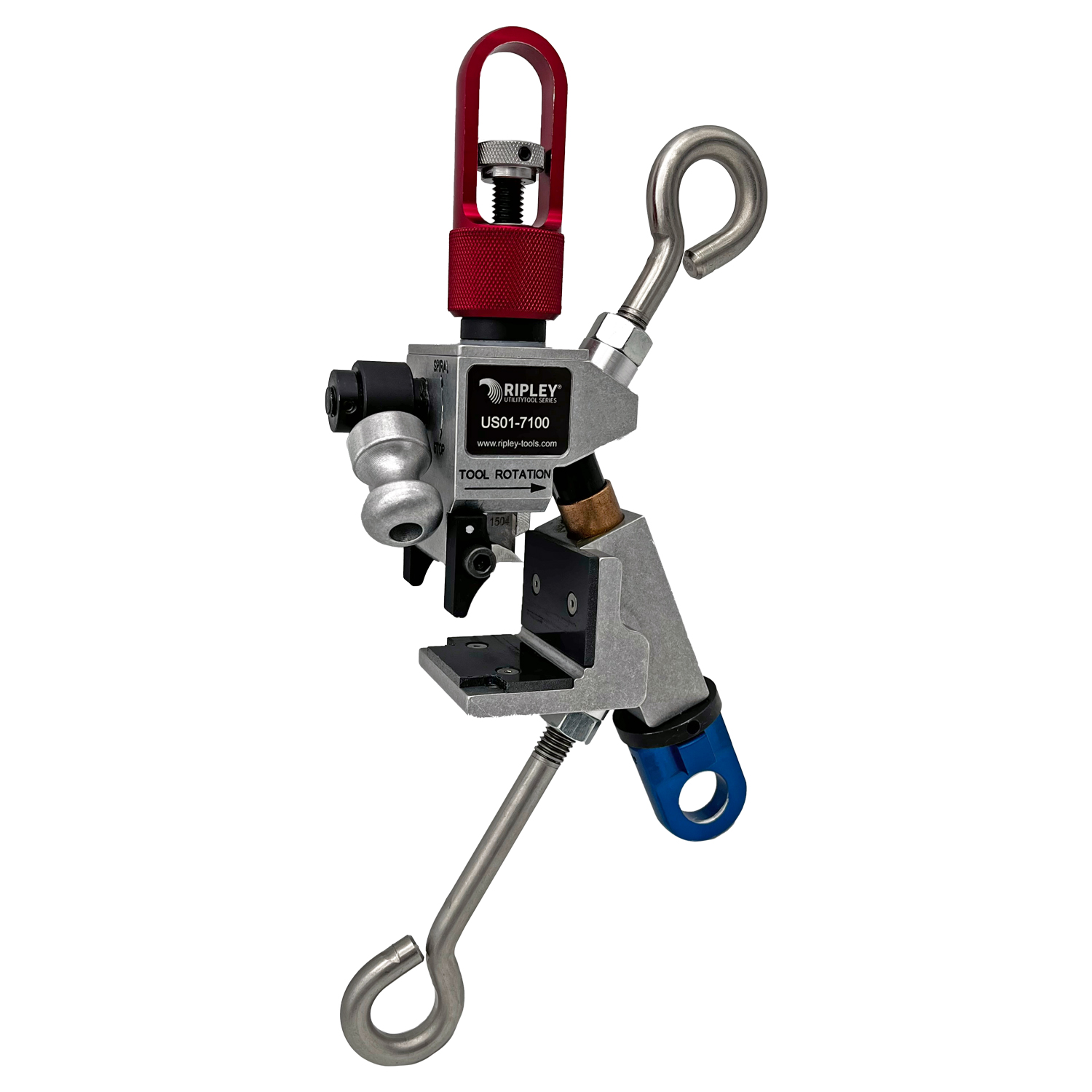

WS 1 Series
Adjustable Cable Stripper
Adjustable mid-span and end stripping on tree wire and spacer cables via hotsticks for live line work
Part No: US01-7100
Share this product
The next generation of adjustable overhead skinners – faster, simpler and safer than ever. Designed start to finish with linemen in mind, the US01-7100 is the most dependable solution for tackling a wide variety of 15-35kV overhead wire
Cable Compatibility | Primary Distribution Overhead, Tree Wire, Spacer Cables |
---|---|
Cable Access | Mid-Span, End |
Min. Cable Outer Diameter | 0.625″ (15.9 mm) |
Max. Cable Outer Diameter | 2.5″ (63.5 mm) |
Min. Voltage | 600 V |
Max. Voltage | 35 kV |
Material | Aluminum |
---|---|
Dimensions | 11.5”x5.7”x2.7” (292.1 x 144.8 x 68.6mm) |
Weight | 3.2 lb (1.45 kg) |
Patent Number | U.S. Patent No. 10,630,062 |
MODEL | PART # | ITEM TYPE | HANDLES | REPLACEMENT BLADE PART # |
---|---|---|---|---|
US01 Hotstick Operable | US01-7100 | Overhead tool | Eyehooks for hotsticks | US01-7501 |
