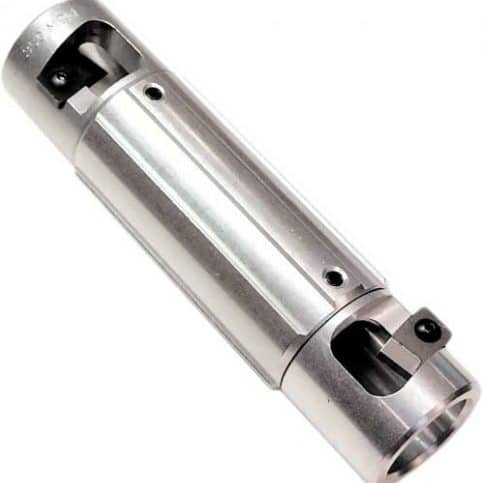

WS 22A & WS 22 SNAP Series

Power-Driven End Strippers

Designed for 600 volt secondary cable.

See all distributors

Part No: Refer to Chart

Share this product

Downloads

Overview

  • Ergonomic end stripping tool designed for 600 volt secondary cable with bushings from 1/0 AWG to 1000 kcmil
  • Reduce working time & effort on repetitive stripping functions
  • WS 22 SNAP’s patent-pending quick connect collar design makes changing bushings faster & more efficient even with gloves on
  • Guarded blades increase safety
  • Adjustable strip stop with adjustment window allows easy setup for 1″ to 5″ (25.4 to 127 mm) strip lengths on WS 22A models & 1.5″ to 5.25″ (28.1 – 133.4 mm) on WS 22 SNAP models

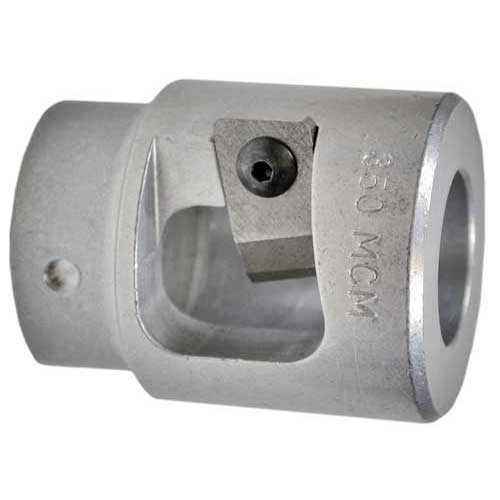

NOTE: The WS 22 is available with or without bushings. Select square cut bushings from the bushings tab. Please specify two bushings when ordering the WS 22A.

Compatible Bushings

Compatibility

Conductor Type Concentric, Compressed, Compacted
Cable Compatibility Secondary Distribution
Cable Access End
Min. Cable Outer Diameter #1/0 AWG
Max. Cable Outer Diameter 1000 kcmil
Max. Voltage 600 V

Specifications

Item Type Tool Body Only
Strip Stop Scale Yes

Comparison Chart

MODEL PART # ITEM TYPE QUICK CONNECT / RELEASE COLLAR LENGTH WEIGHT STRIP LENGTH DRIVE ATTACHMENTS
WS 22A 12340-1 Tool Body Only No 7.44″ (189 mm) 15 oz (426 g) 1″ - 5″ (25.4 - 127 mm) 1/4ʺ Hex
WS 22A 12340-2 Tool Body Only No 7.44″ (189 mm) 15 oz (426 g) 1″ - 5″ (25.4 - 127 mm) 3/8ʺ Square
WS 22A 12340-3 Tool Body Only No 7.44″ (189 mm) 15 oz (426 g) 1″ - 5″ (25.4 - 127 mm) 1/2ʺ Square
WS 22A 12340 Tool Body Only No 7.44″ (189 mm) 15 oz (426 g) 1″ - 5″ (25.4 - 127 mm) 3/8ʺ Drill
WS 22 SNAP 40130 Tool Body Only Yes 8.4″ (213.4 mm) 9.6 oz (272.2 g) 1.5″ - 5.25″ (28.1 - 133.4 mm) 3/8ʺ Drill
