WS 68 & WS 68 SNAP Series

Power-Driven End Strippers

For safe and efficient cable stripping.

See all distributors

Part No: Refer to Chart

Share this product

Downloads

Overview

  • Increases safety by eliminating the use of traditional knives, reducing the risk of cuts or lacerations

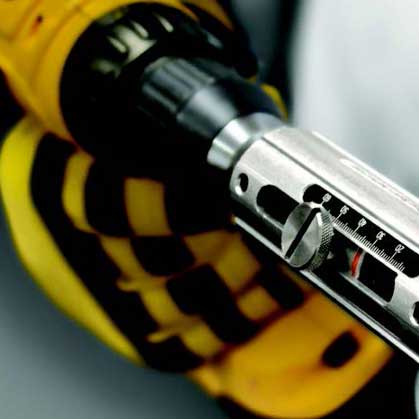

  • Easily attaches to a power drill for safe & efficient cable stripping

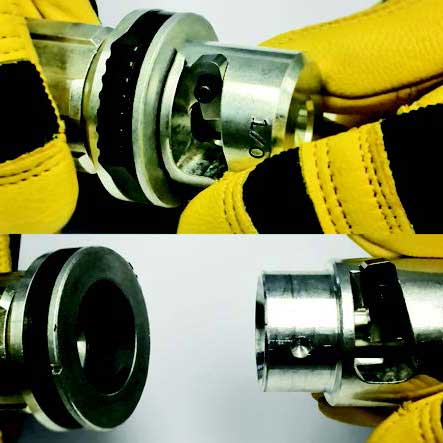

  • WS 68 SNAP’s patented quick connect collar design makes changing bushings faster & more efficient even with gloves on
  • Compatible with #6 AWG to 750 MCM & features adjustable strip lengths ranging from 0.625″ up to 5.0″ (15.875 to 127 mm) depending on the model

Compatible Bushings

Compatibility

Conductor Type Concentric, Compressed, Compacted
Cable Compatibility Secondary Distribution
Cable Access End
Min. Cable Outer Diameter #6 AWG
Max. Cable Outer Diameter 750 kcmil
Max. Voltage 600 V

Specifications

Item Type Tool Body Only

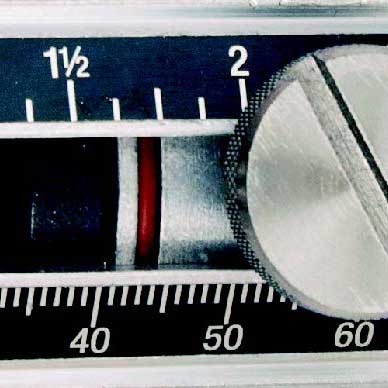

Strip Stop Scale Yes
Patent Number U.S. Patent No. 10,819,091

Comparison Chart

MODEL PART # ITEM TYPE QUICK CONNECT / RELEASE COLLAR LENGTH WEIGHT STRIP LENGTH DRIVE ATTACHMENTS
WS 68 37430-1 Tool Body Only No 6.63″ (168 mm) 10.4 oz (294 g) 0.625″ - 2.5″ (15.875 - 63.5 mm) 3/8ʺ Drill
WS 68 37430-2 Tool Body Only No 6.63″ (168 mm) 10.4 oz (294 g) 0.625″ - 2.5″ (15.875 - 63.5 mm) 3/8ʺ Square
WS 68 37430-3 Tool Body Only No 6.63″ (168 mm) 10.4 oz (294 g) 0.625″ - 2.5″ (15.875 - 63.5 mm) 1/2ʺ Square
WS 68 37430 Tool Body Only No 6.63″ (168 mm) 10.4 oz (294 g) 0.625″ - 2.5″ (15.875 - 63.5 mm) 1/4ʺ Hex
WS 68 SNAP 40100-1 Tool Body Only Yes 6.5″ (165.1 mm) 12.6 oz (357.2 g) 0.625″ - 2.5″ (15.875 - 63.5 mm) 1/4ʺ Hex
3/8ʺ Square
WS 68 SNAP 40100-2 Tool Body Only Yes 6.5″ (165.1 mm) 12.6 oz (357.2 g) 0.625″ - 2.5″ (15.875 - 63.5 mm) 1/4ʺ Hex
WS 68 SNAP 40100-3 Tool Body Only Yes 6.5″ (165.1 mm) 12.6 oz (357.2 g) 0.625″ - 2.5″ (15.875 - 63.5 mm) 3/8ʺ Square
WS 68 SNAP 40100-4 Tool Body Only Yes 6.5″ (165.1 mm) 12.6 oz (357.2 g) 0.625″ - 2.5″ (15.875 - 63.5 mm) 1/2ʺ Square
WS 68 SNAP 40100 Tool Body Only Yes 6.5″ (165.1 mm) 12.6 oz (357.2 g) 0.625″ - 2.5″ (15.875 - 63.5 mm) 3/8ʺ Drill
WS 68 SNAP XL 40115-1 Tool Body Only Yes 9.0″ (228.6 mm) 14.2 oz (401.9 g) 0.625″ - 5″ (15.875 - 127 mm) 1/4ʺ Hex
3/8ʺ Square
WS 68 SNAP XL 40115-2 Tool Body Only Yes 9.0″ (228.6 mm) 14.2 oz (401.9 g) 0.625″ - 5″ (15.875 - 127 mm) 1/4ʺ Hex
WS 68 SNAP XL 40115-3 Tool Body Only Yes 9.0″ (228.6 mm) 14.2 oz (401.9 g) 0.625″ - 5″ (15.875 - 127 mm) 3/8ʺ Square
WS 68 SNAP XL 40115-4 Tool Body Only Yes 9.0″ (228.6 mm) 14.2 oz (401.9 g) 0.625″ - 5″ (15.875 - 127 mm) 1/2ʺ Square
WS 68 SNAP XL 40115 Tool Body Only Yes 9.0″ (228.6 mm) 14.2 oz (401.9 g) 0.625″ - 5″ (15.875 - 127 mm) 3/8ʺ Drill
