2×2 Plus Series
Square-Cut Bushings
Compatible with 2x2 Plus & 4x4® Plus Series, as well as WS-68 Series
Part No: Refer to Chart
Share this product
Downloads

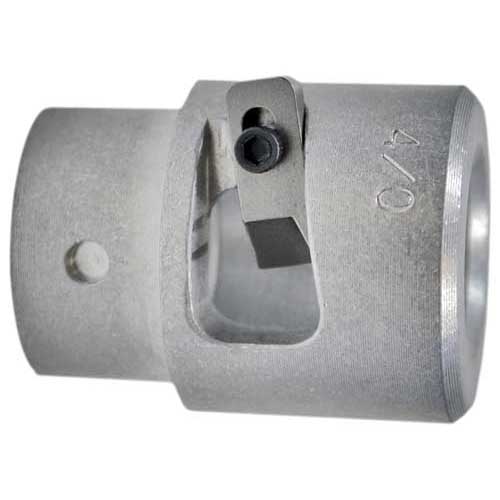

- Image: Photo 1: Square Cut Bushings
- Catalog: Full Utility Catalog
Specifications
| Replacement Blade Part # | 19207 |
|---|
Comparison Chart
| MODEL | PART # | MAX. CABLE OUTER DIAMETER | INSULATION THICKNESS | CONDUCTOR TYPE | CONDUCTOR SIZE | CUTTING TYPE |
|---|---|---|---|---|---|---|
| Compacted 6 AWG | 10-30030 | 0.290″ (7.37 mm) | 45 mils | Compacted | 6 AWG | Square |
| Compressed 6 AWG | 10-30030 | 0.290″ (7.37 mm) | 45 mils | Compressed | 6 AWG | Square |
| Concentric 6 AWG | 10-30030 | 0.290″ (7.37 mm) | 45 mils | Concentric | 6 AWG | Square |
| Compacted 6 AWG | 10-32540 | 0.315″ (8.00 mm) | 60 mils | Compacted | 6 AWG | Square |
| Compressed 6 AWG | 10-32540 | 0.315″ (8.00 mm) | 60 mils | Compressed | 6 AWG | Square |
| Concentric 6 AWG | 10-32540 | 0.315″ (8.00 mm) | 60 mils | Concentric | 6 AWG | Square |
| Compacted 4 AWG | 10-35030 | 0.340″ (8.64 mm) | 45 mils | Compacted | 4 AWG | Square |
| Compressed 4 AWG | 10-35030 | 0.340″ (8.64 mm) | 45 mils | Compressed | 4 AWG | Square |
| Concentric 4 AWG | 10-35030 | 0.340″ (8.64 mm) | 45 mils | Concentric | 4 AWG | Square |
| Compacted 4 AWG | 10-37540 | 0.365″ (9.27 mm) | 60 mils | Compacted | 4 AWG | Square |
| Compressed 4 AWG | 10-37540 | 0.365″ (9.27 mm) | 60 mils | Compressed | 4 AWG | Square |
| Concentric 4 AWG | 10-37540 | 0.365″ (9.27 mm) | 60 mils | Concentric | 4 AWG | Square |
| Compacted 2 AWG | 10-40030 | 0.390″ (9.91 mm) | 45 mils | Compacted | 2 AWG | Square |
| Compressed 2 AWG | 10-40030 | 0.390″ (9.91 mm) | 45 mils | Compressed | 2 AWG | Square |
| Concentric 2 AWG | 10-40030 | 0.390″ (9.91 mm) | 45 mils | Concentric | 2 AWG | Square |
| Compacted 6 AWG | 10-40075 | 0.390″ (9.91 mm) | 95 mils | Compacted | 6 AWG | Square |
| Compressed 6 AWG | 10-40075 | 0.390″ (9.91 mm) | 95 mils | Compressed | 6 AWG | Square |
| Concentric 6 AWG | 10-40075 | 0.390″ (9.91 mm) | 95 mils | Concentric | 6 AWG | Square |
| Compacted 2 AWG | 10-42540 | 0.415″ (10.54 mm) | 60 mils | Compacted | 2 AWG | Square |
| Compressed 2 AWG | 10-42540 | 0.415″ (10.54 mm) | 60 mils | Compressed | 2 AWG | Square |
| Compacted 1 AWG | 10-45040-#1 | 0.440″ (11.18 mm) | 60 mils | Compacted | 1 AWG | Square |
| Concentric 2 AWG | 10-45040 | 0.440″ (11.18 mm) | 60 mils | Concentric | 2 AWG | Square |
| Compressed 1 AWG | 10-47540 | 0.465″ (11.81 mm) | 60 mils | Compressed | 1 AWG | Square |
| Concentric 1 AWG | 10-47540 | 0.465″ (11.81 mm) | 60 mils | Concentric | 1 AWG | Square |
| Compacted 1/0 AWG | 10-47540-1/0 | 0.465″ (11.81 mm) | 60 mils | Compacted | 1/0 AWG | Square |
| Compacted 2 AWG | 10-47560 | 0.465″ (11.81 mm) | 80 mils | Compacted | 2 AWG | Square |
| Compressed 2 AWG | 10-47560 | 0.465″ (11.81 mm) | 80 mils | Compressed | 2 AWG | Square |
| Concentric 2 AWG | 10-47560 | 0.465″ (11.81 mm) | 80 mils | Concentric | 2 AWG | Square |
| Compressed 1/0 AWG | 10-50040 | 0.490″ (12.45 mm) | 60 mils | Compressed | 1/0 AWG | Square |
| Compacted 1 AWG | 10-50060 | 0.490″ (12.45 mm) | 80 mils | Compacted | 1 AWG | Square |
| Concentric 1/0 AWG | 10-52540 | 0.515″ (13.08 mm) | 60 mils | Concentric | 1/0 AWG | Square |
| Compacted 2/0 AWG | 10-52540 | 0.515″ (13.08 mm) | 60 mils | Compacted | 2/0 AWG | Square |
| Compressed 1 AWG | 10-52560 | 0.515″ (13.08 mm) | 80 mils | Compressed | 1 AWG | Square |
| Concentric 1 AWG | 10-52560 | 0.515″ (13.08 mm) | 80 mils | Concentric | 1 AWG | Square |
| Compacted 1/0 AWG | 10-52560-1/0 | 0.515″ (13.08 mm) | 80 mils | Compacted | 1/0 AWG | Square |
| Compressed 2/0 AWG | 10-55040 | 0.540″ (13.42 mm) | 60 mils | Compressed | 2/0 AWG | Square |
| Compressed 1/0 AWG | 10-55060 | 0.540″ (13.42 mm) | 80 mils | Compressed | 1/0 AWG | Square |
| Concentric 2/0 AWG | 10-57540 | 0.565″ (14.35 mm) | 60 mils | Concentric | 2/0 AWG | Square |
| Compacted 3/0 AWG | 10-57540-3/0 | 0.565″ (14.35 mm) | 60 mils | Compacted | 3/0 AWG | Square |
| Concentric 1/0 AWG | 10-57560 | 0.565″ (14.35 mm) | 80 mils | Concentric | 1/0 AWG | Square |
| Compacted 2/0 AWG | 10-57560-2/0 | 0.565″ (14.35 mm) | 80 mils | Compacted | 2/0 AWG | Square |
| Compacted 1/0 AWG | 10-57575 | 0.565″ (14.35 mm) | 95 mils | Compacted | 1/0 AWG | Square |
| Compressed 3/0 AWG | 10-60040 | 0.590″ (14.99 mm) | 60 mils | Compressed | 3/0 AWG | Square |
| Compressed 2/0 AWG | 10-60060 | 0.590″ (14.99 mm) | 80 mils | Compressed | 2/0 AWG | Square |
| Concentric 2/0 AWG | 10-60060 | 0.590″ (14.99 mm) | 80 mils | Concentric | 2/0 AWG | Square |
| Compressed 1/0 AWG | 10-60075 | 0.590″ (14.99 mm) | 95 mils | Compressed | 1/0 AWG | Square |
| Concentric 1/0 AWG | 10-60075 | 0.590″ (14.99 mm) | 95 mils | Concentric | 1/0 AWG | Square |
| Compacted 2/0 AWG | 10-60075-2/0 | 0.590″ (14.99 mm) | 95 mils | Compacted | 2/0 AWG | Square |
| Concentric 3/0 AWG | 10-62540 | 0.615″ (15.62 mm) | 60 mils | Concentric | 3/0 AWG | Square |
| Compacted 4/0 AWG | 10-62540-4/0 | 0.615″ (15.62 mm) | 60 mils | Compacted | 4/0 AWG | Square |
| Compacted 3/0 AWG | 10-62560 | 0.615″ (15.62 mm) | 80 mils | Compacted | 3/0 AWG | Square |
| Compressed 2/0 AWG | 10-62575 | 0.615″ (15.62 mm) | 95 mils | Compressed | 2/0 AWG | Square |
| Compressed 3/0 AWG | 10-65060 | 0.640″ (16.26 mm) | 80 mils | Compressed | 3/0 AWG | Square |
| Concentric 2/0 AWG | 10-65075 | 0.640″ (16.26 mm) | 95 mils | Concentric | 2/0 AWG | Square |
| Compacted 3/0 AWG | 10-65075 | 0.640″ (16.26 mm) | 95 mils | Compacted | 3/0 AWG | Square |
| Compressed 4/0 AWG | 10-67540 | 0.665″ (16.89 mm) | 60 mils | Compressed | 4/0 AWG | Square |
| Concentric 4/0 AWG | 10-67540 | 0.665″ (16.89 mm) | 60 mils | Concentric | 4/0 AWG | Square |
| Concentric 3/0 AWG | 10-67560 | 0.665″ (16.89 mm) | 80 mils | Concentric | 3/0 AWG | Square |
| Compacted 4/0 AWG | 10-67560-4/0 | 0.665″ (16.89 mm) | 80 mils | Compacted | 4/0 AWG | Square |
| Compressed 3/0 AWG | 10-67575 | 0.665″ (16.89 mm) | 95 mils | Compressed | 3/0 AWG | Square |
| Compressed 4/0 AWG | 10-70060 | 0.690″ (17.53 mm) | 80 mils | Compressed | 4/0 AWG | Square |
| Concentric 3/0 AWG | 10-70075-3/0 | 0.690″ (17.53 mm) | 95 mils | Concentric | 3/0 AWG | Square |
| Compacted 4/0 AWG | 10-70075 | 0.690″ (17.53 mm) | 95 mils | Compacted | 4/0 AWG | Square |
| Compacted 250 kcmil | 10-72560-250MCM | 0.715″ (18.16 mm) | 80 mils | Compacted | 250 kcmil | Square |
| Concentric 4/0 AWG | 10-72560 | 0.715″ (18.16 mm) | 80 mils | Concentric | 4/0 AWG | Square |
| Compacted 250 kcmil | 10-75075-250MCM | 0.740″ (18.80 mm) | 95 mils | Compacted | 250 kcmil | Square |
| Compressed 4/0 AWG | 10-75075 | 0.740″ (18.80 mm) | 95 mils | Compressed | 4/0 AWG | Square |
| Concentric 4/0 AWG | 10-75075 | 0.740″ (18.80 mm) | 95 mils | Concentric | 4/0 AWG | Square |
| Concentric 500 kcmil | 11-100060 | 0.990″ (25.15 mm) | 80 mils | Concentric | 500 kcmil | Square |
| Compressed 500 kcmil | 11-102575 | 1.015″ (25.78 mm) | 95 mils | Compressed | 500 kcmil | Square |
| Concentric 500 kcmil | 11-105075 | 1.040″ (26.42 mm) | 95 mils | Concentric | 500 kcmil | Square |
| Compressed 250 kcmil | 11-75060 | 0.740″ (18.80 mm) | 80 mils | Compressed | 250 kcmil | Square |
| Concentric 250 kcmil | 11-77560 | 0.765″ (19.43 mm) | 80 mils | Concentric | 250 kcmil | Square |
| Compressed 250 kcmil | 11-77575 | 0.765″ (19.43 mm) | 95 mils | Compressed | 250 kcmil | Square |
| Compacted 350 kcmil | 11-80060 | 0.790″ (20.07 mm) | 80 mils | Compacted | 350 kcmil | Square |
| Concentric 250 kcmil | 11-80075 | 0.790″ (20.07 mm) | 95 mils | Concentric | 250 kcmil | Square |
| Compressed 350 kcmil | 11-85060 | 0.840″ (21.34 mm) | 80 mils | Compressed | 350 kcmil | Square |
| Compacted 350 kcmil | 11-85075 | 0.840″ (21.34 mm) | 95 mils | Compacted | 350 kcmil | Square |
| Concentric 350 kcmil | 11-87560 | 0.865″ (21.97 mm) | 80 mils | Concentric | 350 kcmil | Square |
| Compressed 350 kcmil | 11-90075 | 0.890″ (22.61 mm) | 95 mils | Compressed | 350 kcmil | Square |
| Concentric 350 kcmil | 11-90075 | 0.890″ (22.61 mm) | 95 mils | Concentric | 350 kcmil | Square |
| Compacted 500 kcmil | 11-92560 | 0.915″ (23.34 mm) | 80 mils | Compacted | 500 kcmil | Square |
| Compressed 500 kcmil | 11-97560 | 0.965″ (24.51 mm) | 80 mils | Compressed | 500 kcmil | Square |
| Compacted 500 kcmil | 11-97575 | 0.965″ (24.51 mm) | 95 mils | Compacted | 500 kcmil | Square |
