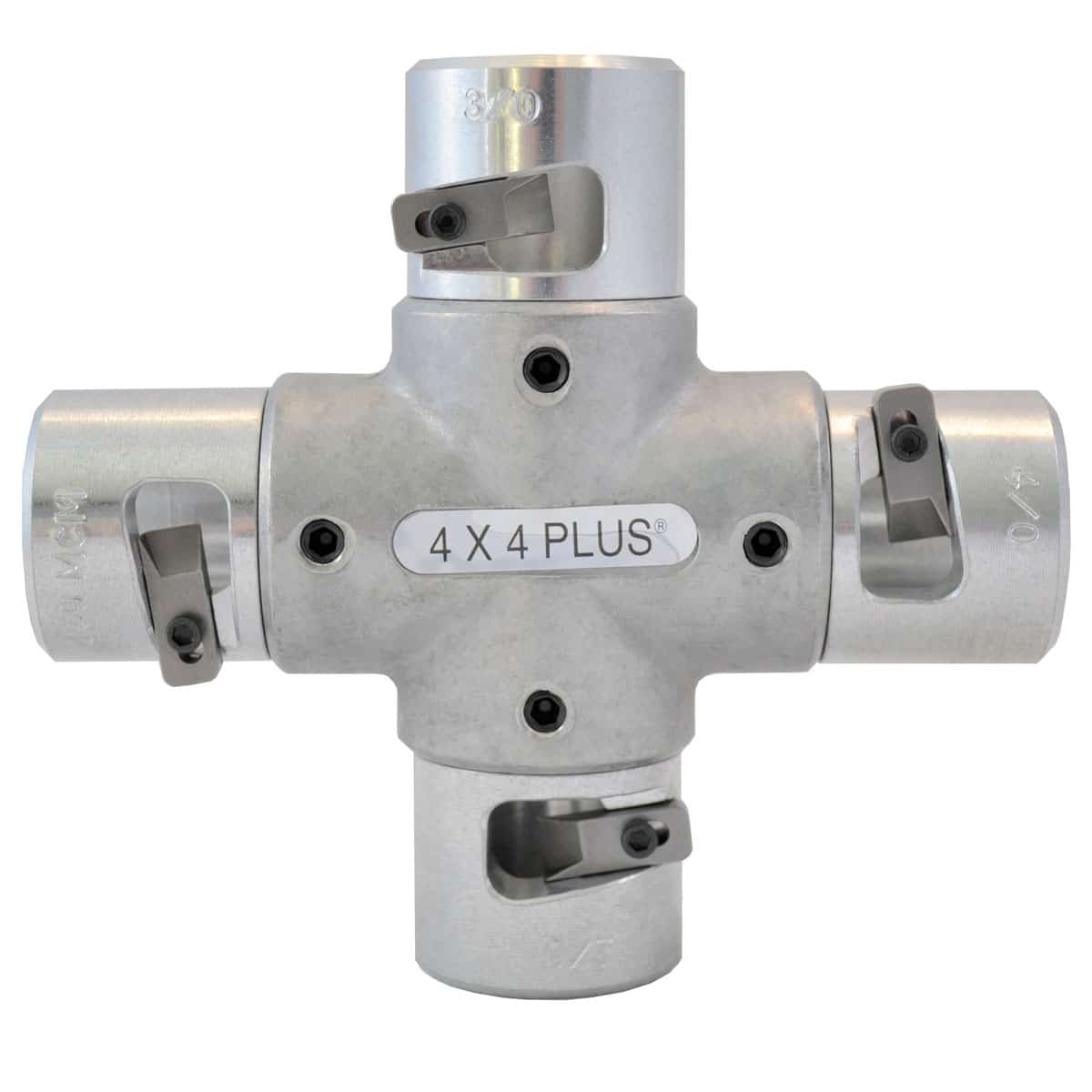

4×4® Plus Series

600V Cable Stripper with 4 Cable Bushings

Designed for efficient and precise 600V secondary cable stripping.

See all distributors

Part No: Refer to Chart

Share this product

Downloads

Overview

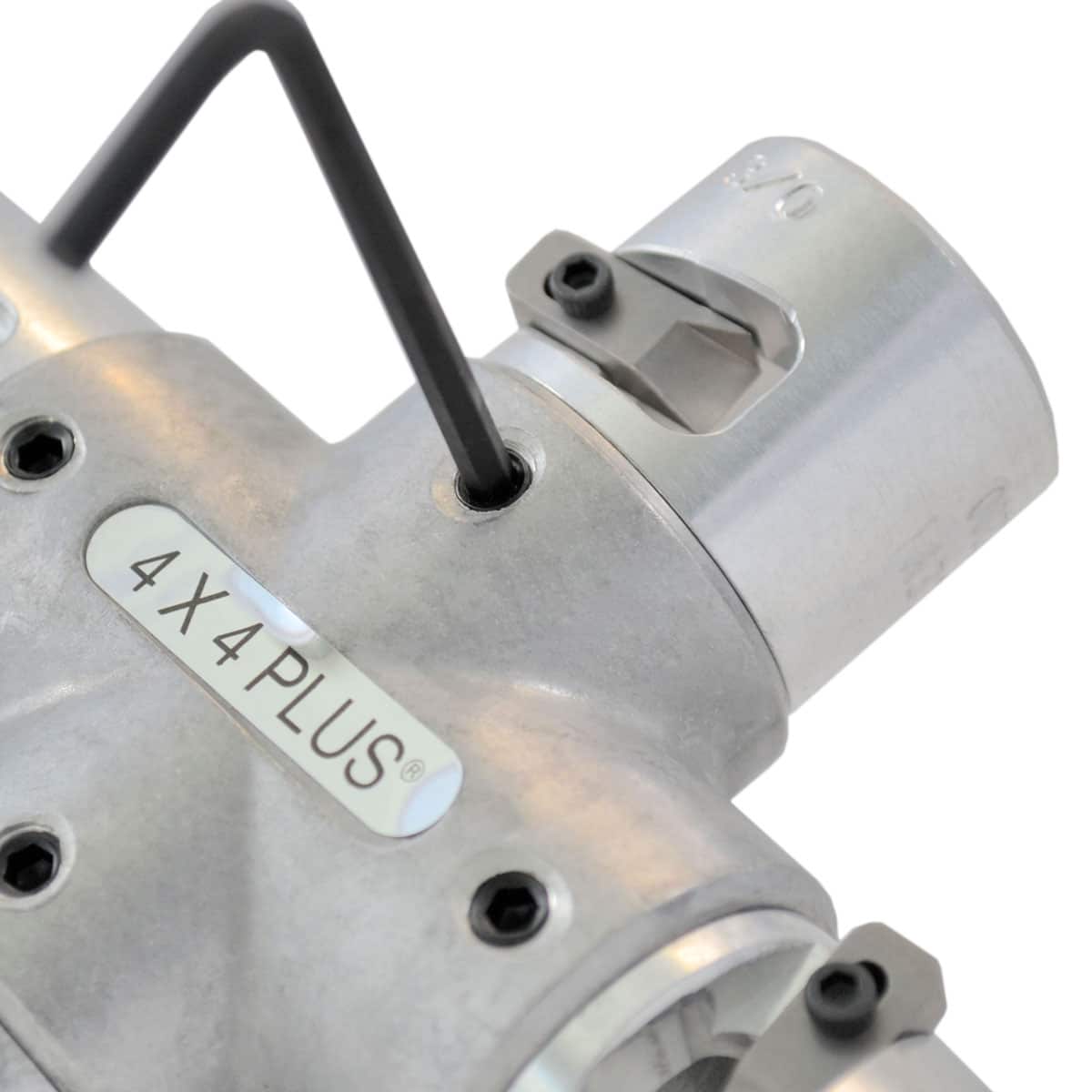

  • Four-sided design accommodates four bushings that easily change out with a hex wrench

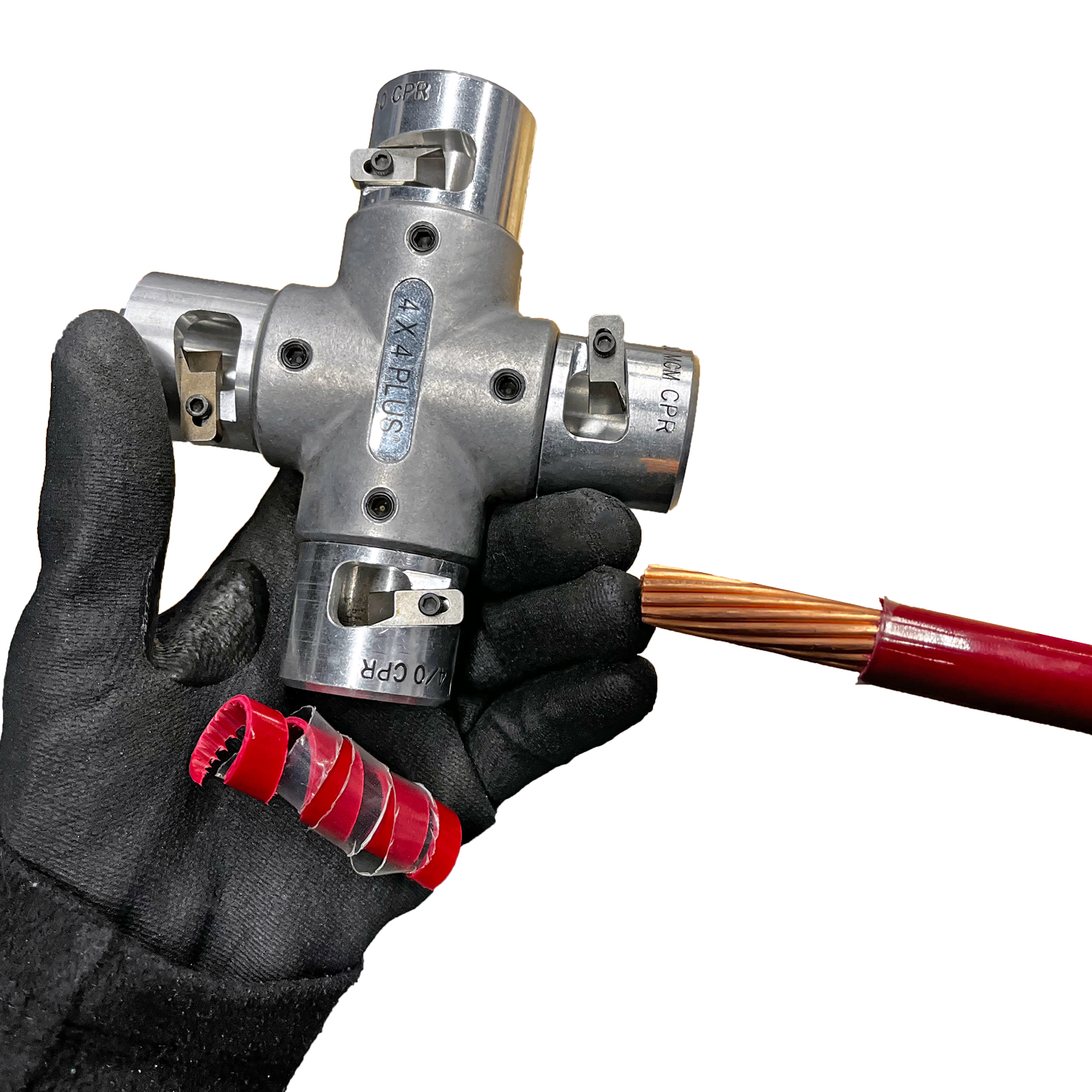

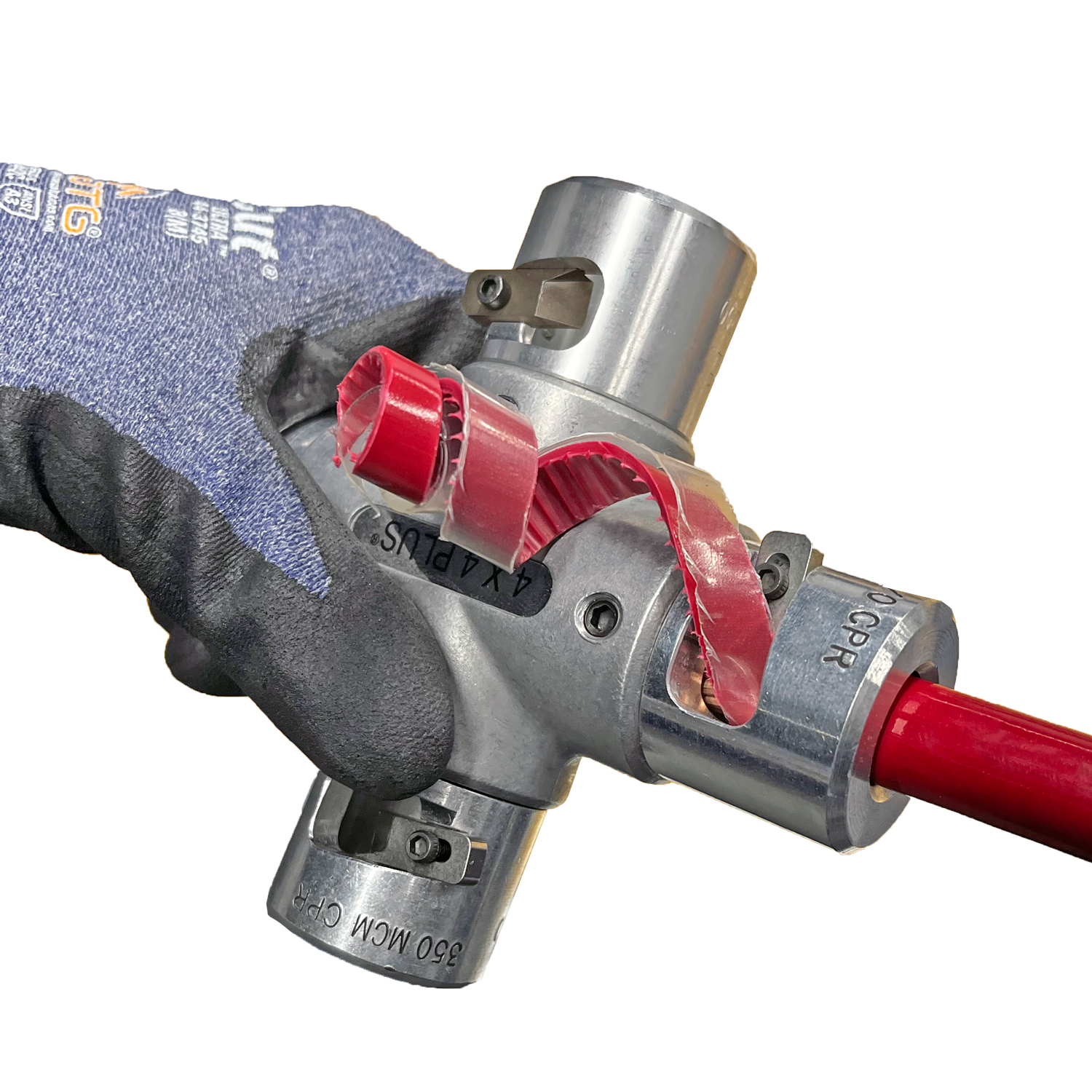

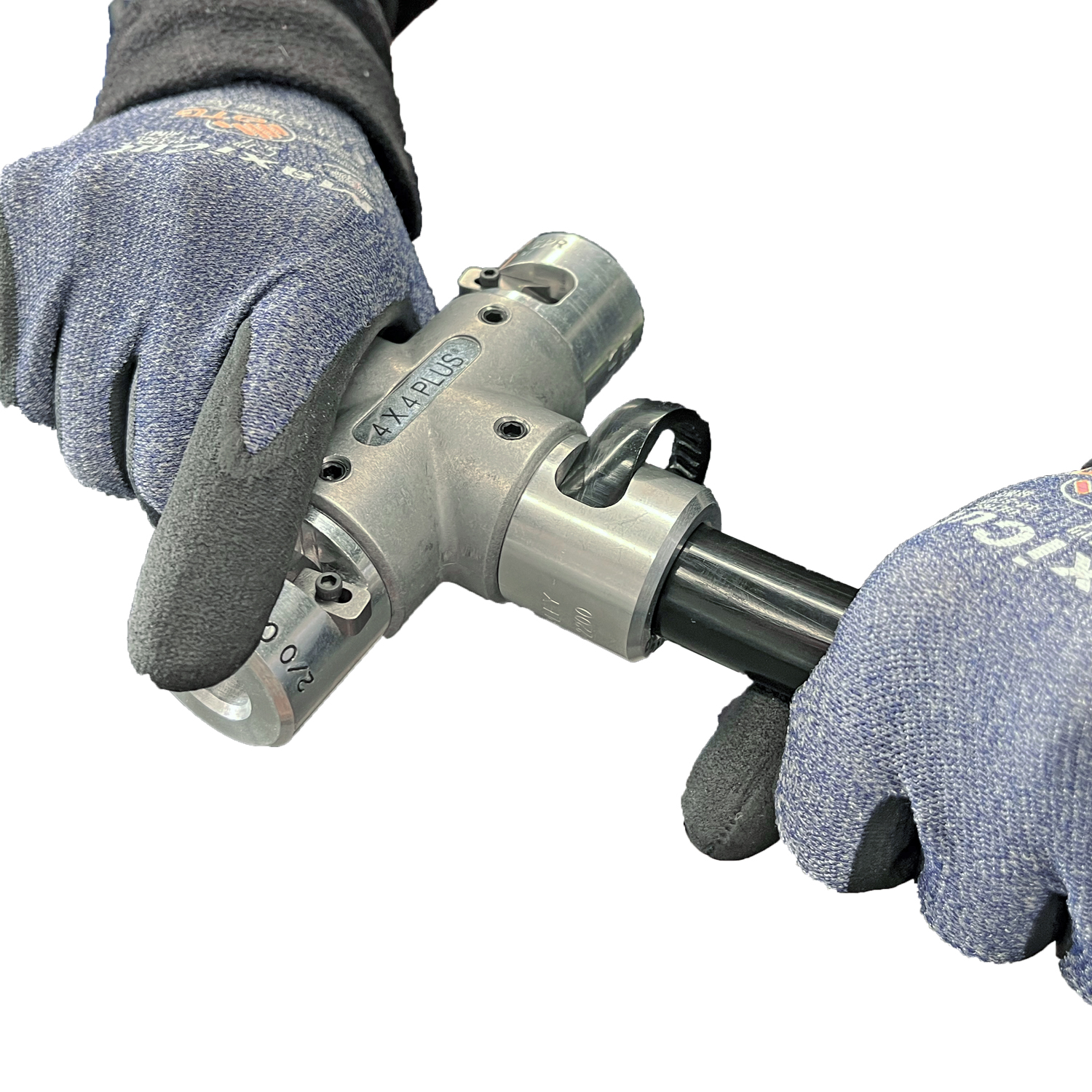

  • Efficiently & precisely strip 600V secondary cable without damaging the conductor, even in cold climates
  • Compatible square or chamfer cut bushings for stripping 45 mil to 95 mil secondary insulations with concentric, compressed or compacted conductors #6 AWG to 750 kcmil
  • Guarded bushing cutting blades prevent injury

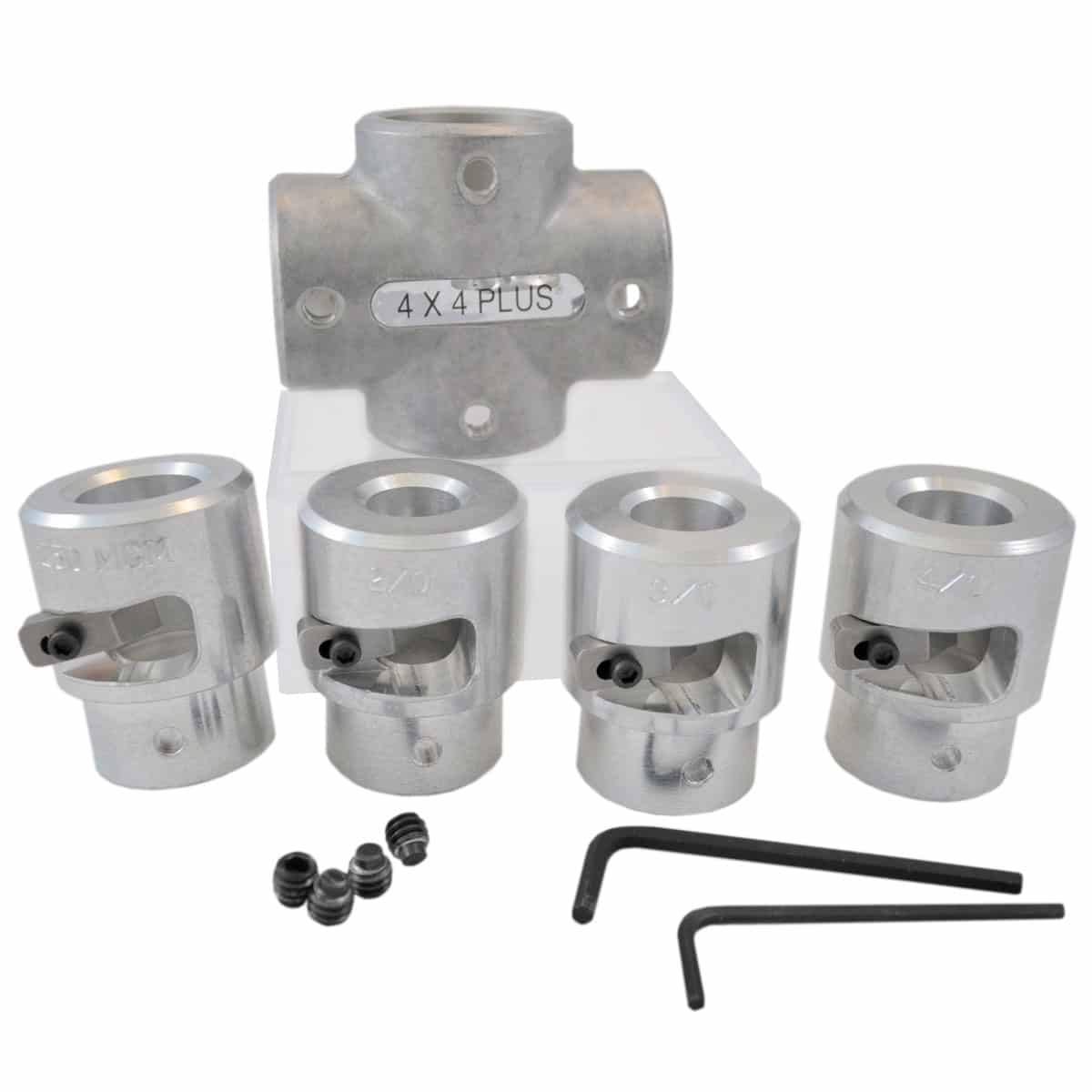

NOTE: The 4×4 Plus® is available with or without bushings. Select square or chamfer cut bushings from the bushings below. Please specify four bushings when ordering the 4×4 Plus®.

Compatible Bushings

Compatibility

Conductor Type Concentric, Compressed, Compacted
Cable Compatibility Secondary Distribution
Cable Access End
Min. Cable Outer Diameter #6 AWG
Max. Cable Outer Diameter 750 kcmil
Max. Voltage 600 V
Insulation Thickness 45 mils, 60 mils, 80 mils, 95 mils

Specifications

Max. Bushing Capacity 4

Comparison Chart

MODEL PART # ITEM TYPE DIMENSIONS WEIGHT
4x4 Plus® 36001H Tool Body Only 4.5″ x 5″ (114 x 127 mm) 14 oz (397 g)
Quick Connect Collar R40110 Collar for quickly swapping bushings N/A N/A
