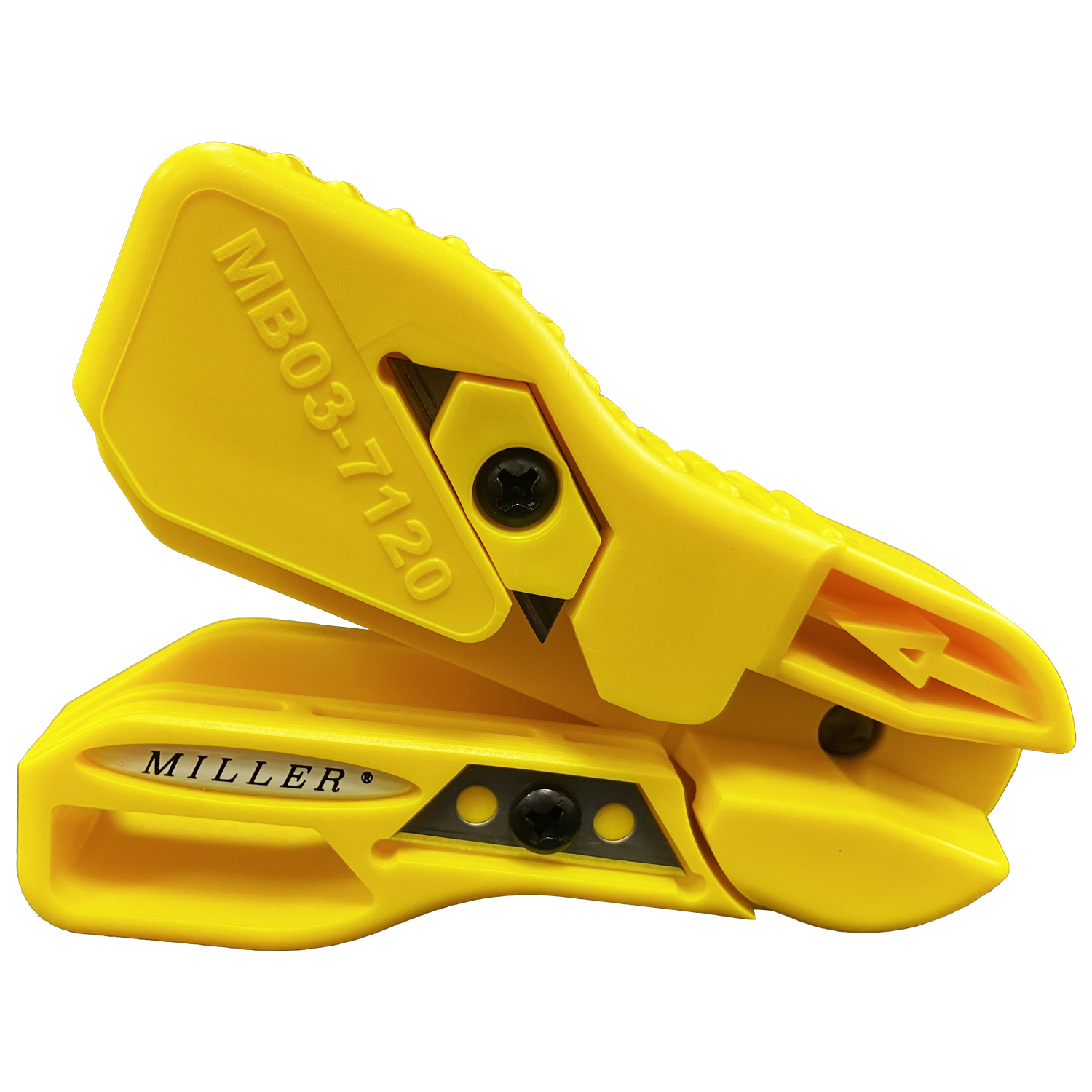

MB03-7000 Series
MB04 Series
"Twister" FTTX Drop Cable Slitter
Designed for precise, safe and easy access to fiber buffer tube.
Part No: Refer to Chart
Share this product
Downloads
- Image: Image: MB04 Series
- Image: Image: MB04-7020 ULW Drop Cable Slitter
- Image: Image: MB04-7000 Flat Drop Cable Slitter
- Document: MB04 Sales Sheet (EN)
- Document: MB04 Sales Sheet (ES)
- Document: MB04 Instruction Sheet (EN)
- Document: MB04 Instruction Sheet (ES)
- Catalog: Full Broadband Catalog
Overview

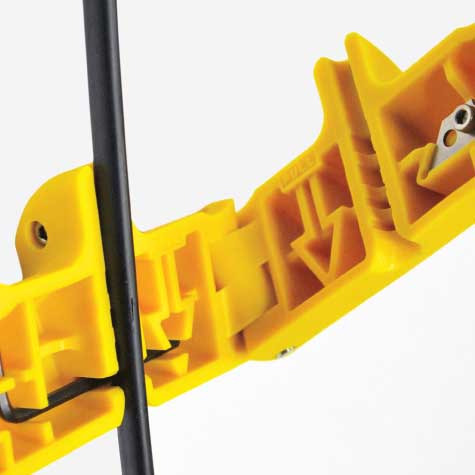

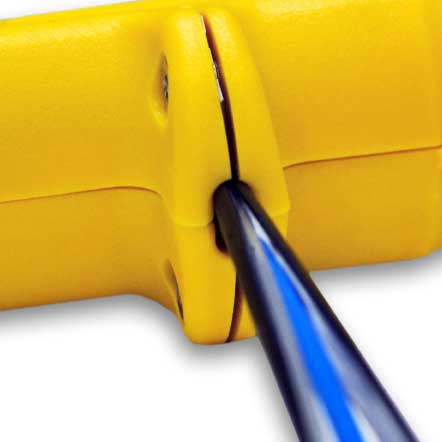

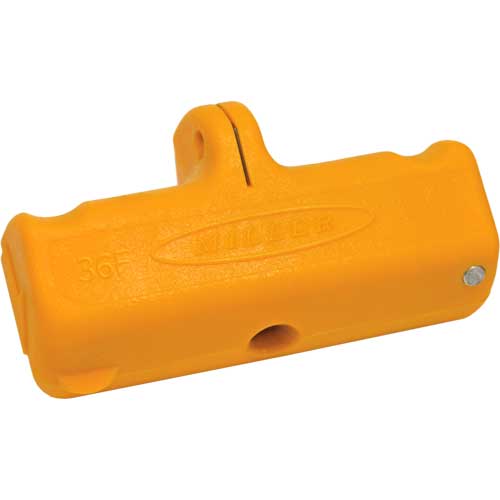

Patented design slits both sides of FTTX drop cable jackets on end or mid-span applications, and allows for precise, safe and easy access to fiber buffer tube.
- The unique articulating hinge allows accurate end AND mid-span stripping without disassembling the tool — simply close the tool over the cable and pull to slit jacket
- Shielded blades promote safe operation and prevent cuts and lacerations

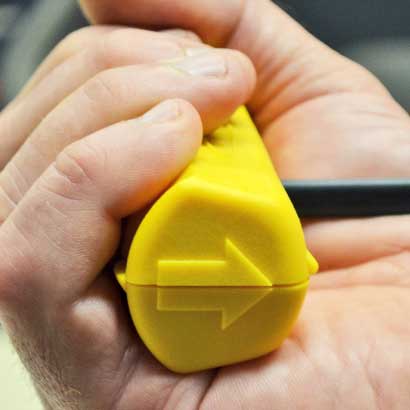

- Ergonomic design with convenient opening tabs fits comfortably in hand and requires minimal effort to use

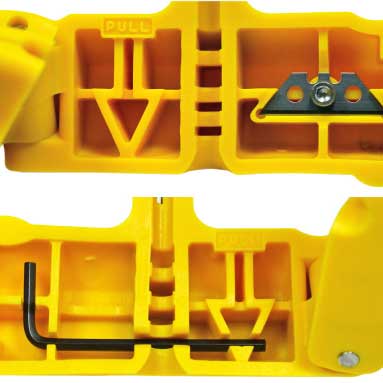

- Comes with two installed reversible blades plus two additional replacement blades stowed conveniently in the tool
- Lightweight and durable polymer construction
- Flat drop and ULW models color-coded for quick and easy identification
- Replacement blade kit comes with 4 blades
Specifications
| Cable Access | Mid-Span, End |
|---|---|
| Material | Impact-Resistant Polymer |
| Dimensions | 1.8″ x 2.1″ x 3.78″ (45 x 53 x 96 mm) |
| Weight | 3.88 oz (110 g) |
| Replacement Blade Part # | MB04-7500 |
| Patent Number | U.S. Patent No. 10,795,085 |
Comparison Chart
| MODEL | PART# | GTIN | CABLE COMPATIBILITY | CABLE DIAMETERS | CABLE WIDTH | CABLE HEIGHT |
|---|---|---|---|---|---|---|

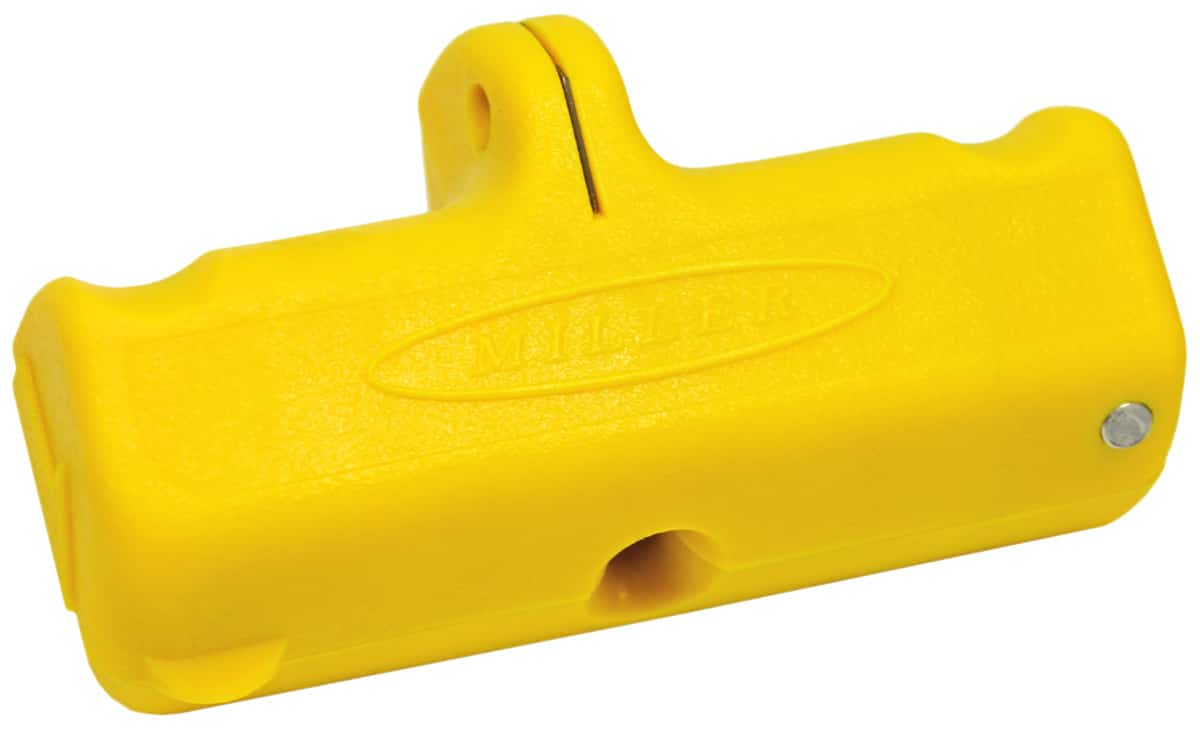

| Flat Drop Cable Slitter | MB04-7000 | 856848006557 | CommScope® Corning Draka/Comteq OFS Prysmian Superior Essex Sterilite Tech™ DROP-LITE |
N/A |
0.305ʺ - 0.350ʺ (7.7 - 8.9 mm) |
0.155ʺ - 0.185ʺ (3.9 - 4.7 mm) |
| FTTX ULW Drop Cable Slitter | MB04-7020 | N/A | Hexatronic (4/12/24/36/48F) Corning (24/36/48) OFS (24/36/48) Sterlite (24/36/48) Prysmian (24/36/48) Aginode (12/24/36/48) ZTT (12/36/48/72F) |
0.275ʺ (7 mm) | N/A | N/A |
