Adjustable Slit & Ring Tool
Designed to perform slit and ring cuts on fiber optic cables, buffer tubes, and jackets from 0.05″ to 0.25″ (1.2 to 6.4 mm) in diameter.
Part No: MB06-7000
Share this product

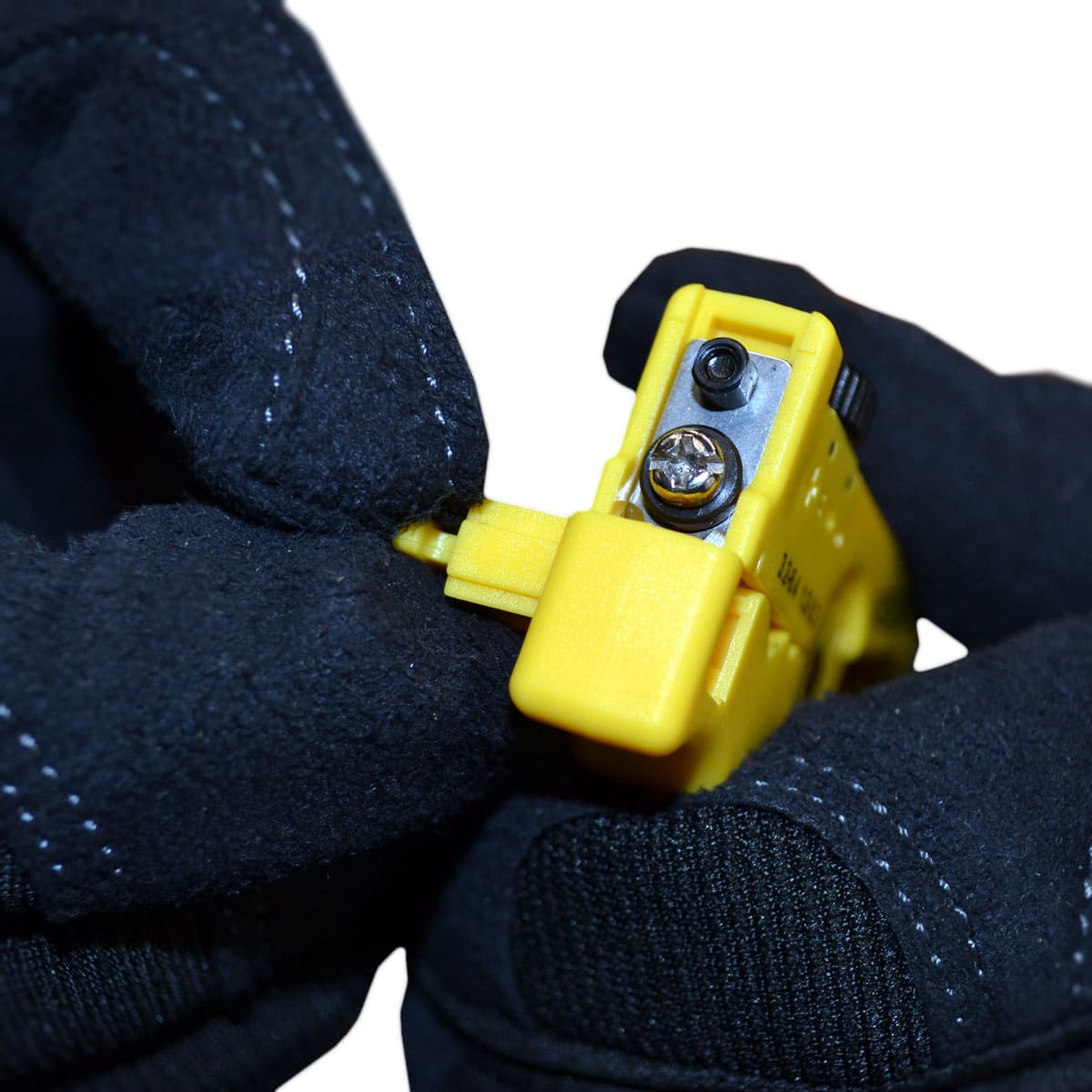

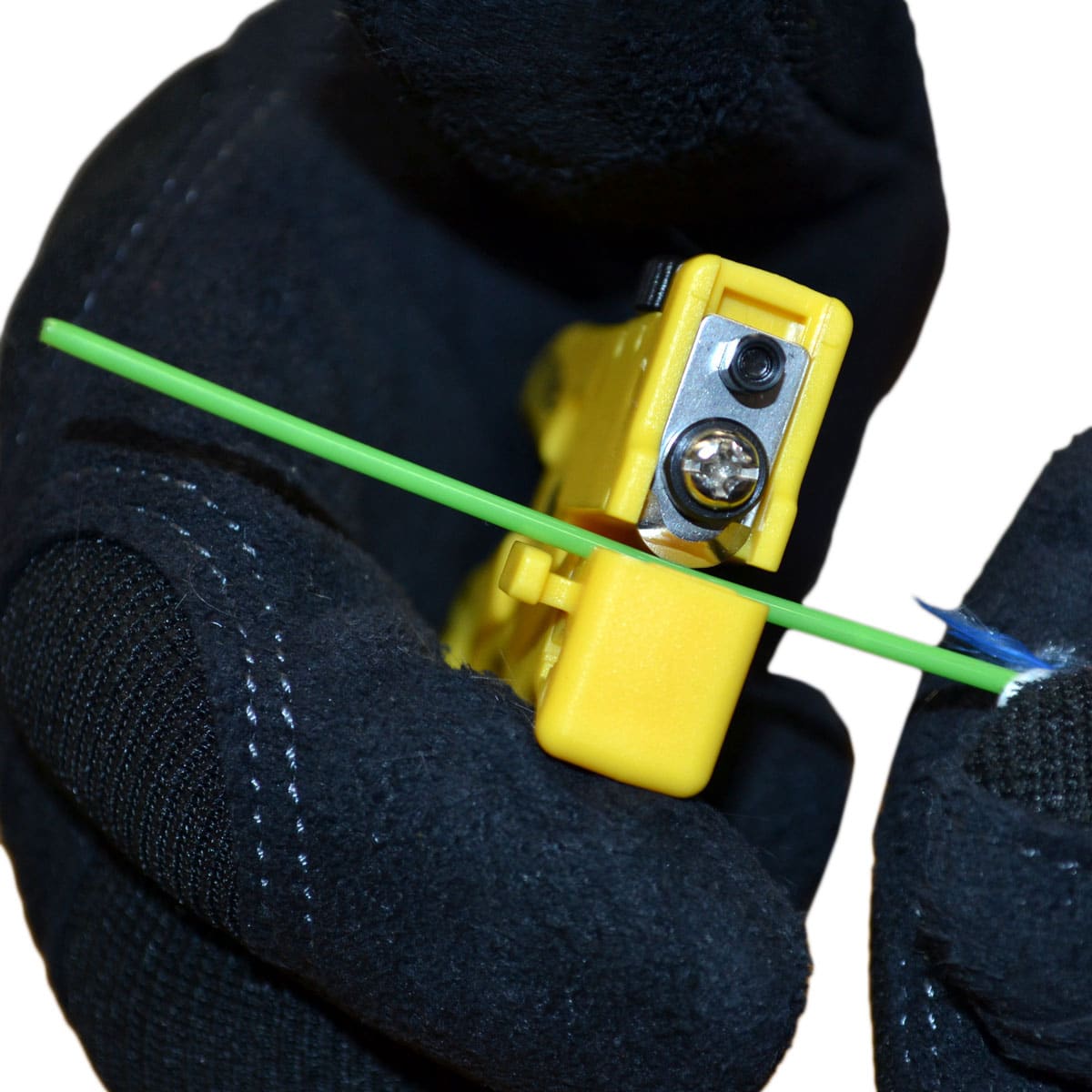

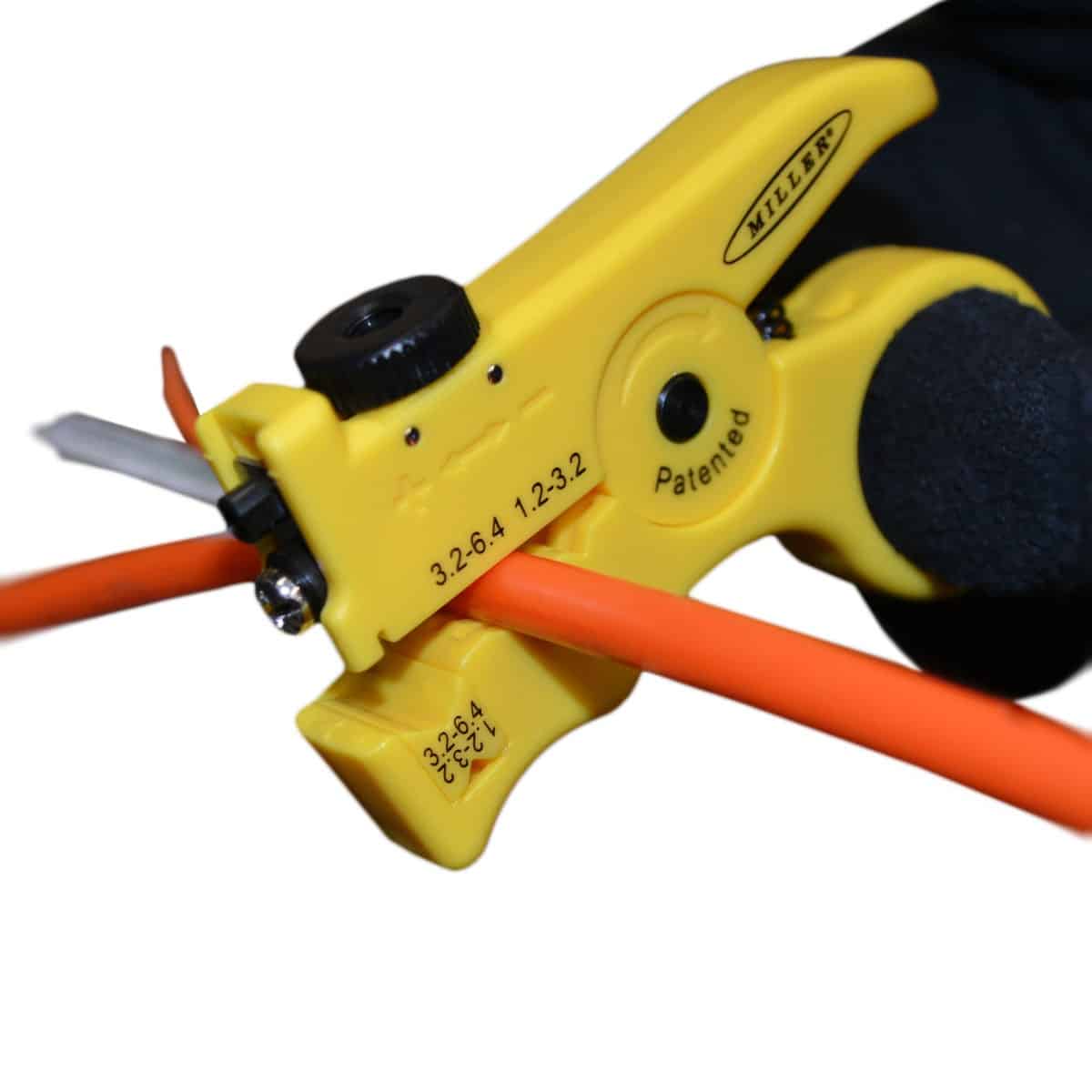

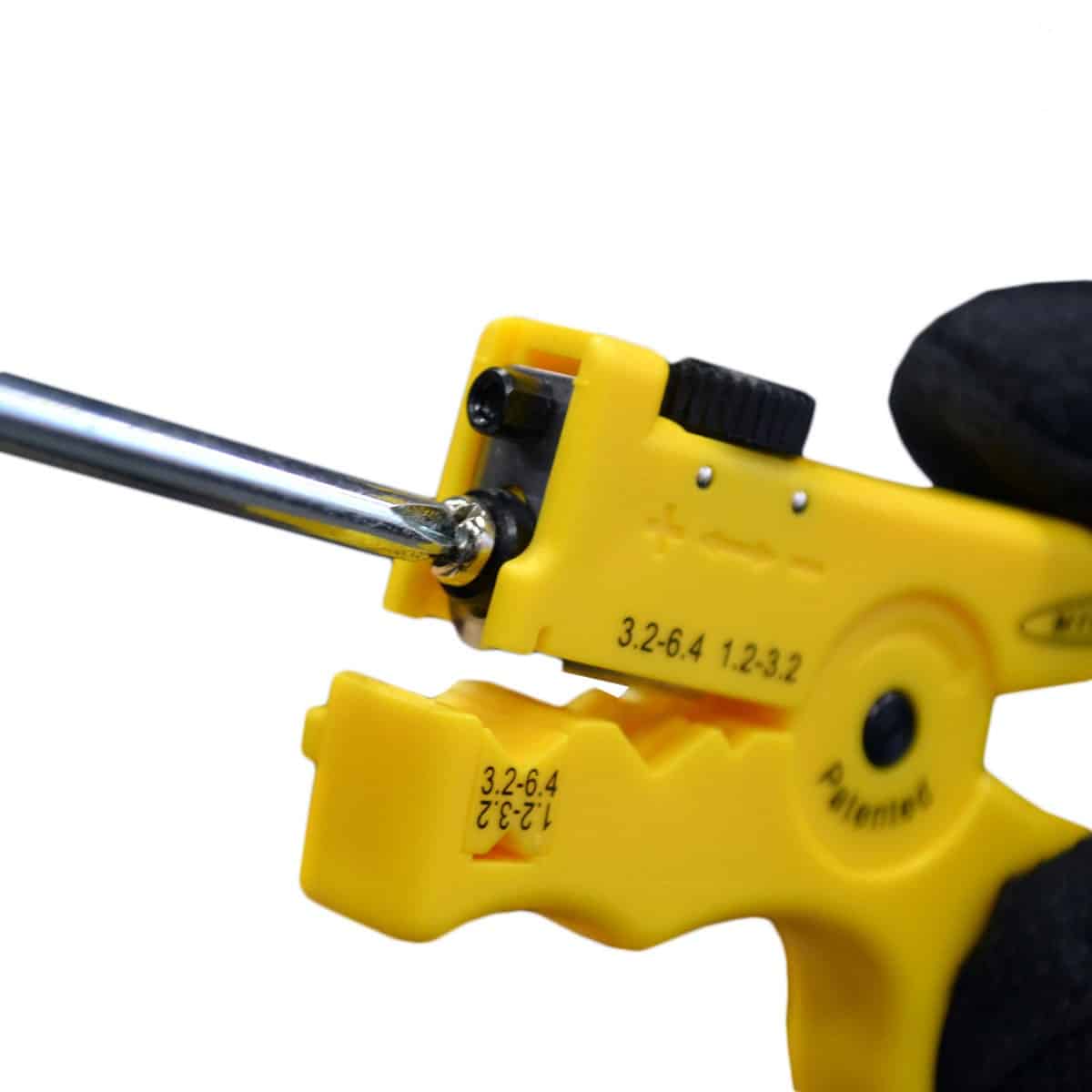

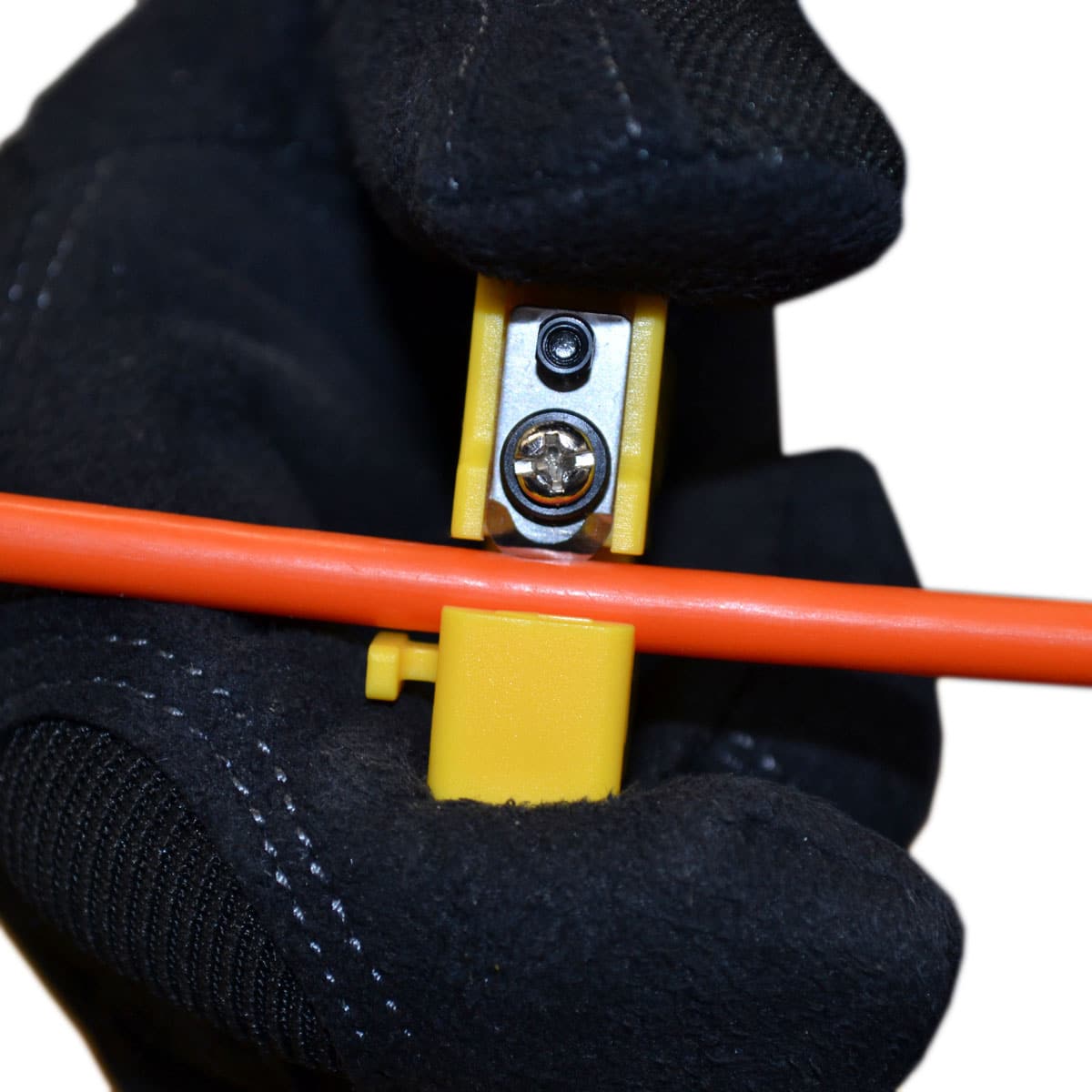

The compact Miller® MB06 is designed to perform slit and ring cuts on fiber optic cables, buffer tubes, and jackets from 0.05″ to 0.25″ (1.2 to 6.4 mm) in diameter. The tool features easily adjustable slit and ring blades. The MB06 has two ring cut channels and a reversible V block that improves slitting performance to accommodate the full diameter range.
|Cable Access||Mid-Span, End|
|Min. Cable Outer Diameter||0.05″ (1.2 mm)|
|Max. Cable Outer Diameter||0.25″ (6.4 mm)|
|Dimensions||0.5″ x 2.8″ x 2.1″ (12.7 mm x 71.1 mm x 53.3 mm)|
|Weight||0.81 oz (22.96 g)|
|Replacement Blade Part #||MB06-7500|
