MSAT® Micro Series

Compact Mid-Span Fiber Access Tool

Patent-pending, compact & user-friendly mid-span access tool with interchangeable inserts to accommodate buffer tube diameters from 1.2 to 1.8 mm.

See all distributors

Part No: 81460

Share this product

  • Patent-pending, compact & user-friendly mid-span access tool with interchangeable inserts to accommodate buffer tube diameters from 1.2 to 1.8 mm
  • Double-sided blade increases longevity & fixed components require no additional adjustments
  • Locking lever mechanism provides constant pressure between the tool halves to ensure precise & consistent shaving operations

Compatibility

Buffer Tube Diameter 0.047″ - 0.071″ (1.2 - 1.8 mm)

Specifications

Length 2.5″ (63.5 mm)
Dimensions 2.88″ x 1.63″ x 1.50″ (73 x 41 x 38 mm)
Weight 6.6 oz (187 g)
Replacement Blade Part # 81472

Comparison Chart

MODEL PART DIMENSIONS WEIGHT BUFFER TUBE DIAMETER

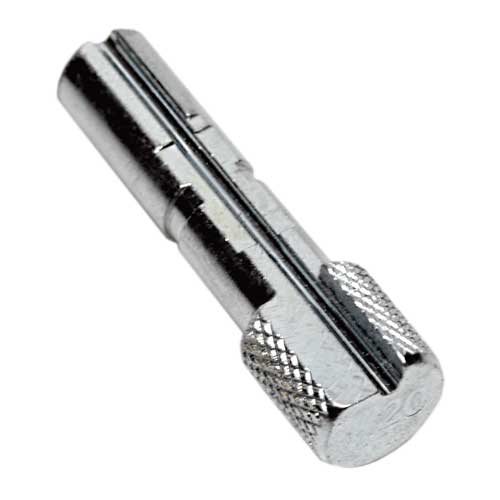

1.2 mm Insert 81512 1.77″ x 0.47″ (45 x 12 mm) 0.9 oz (26 g) 0.047″ (1.2 mm)
1.3 mm Insert 81513 1.77″ x 0.47″ (45 x 12 mm) 0.9 oz (26 g) 0.051″ (1.3 mm)

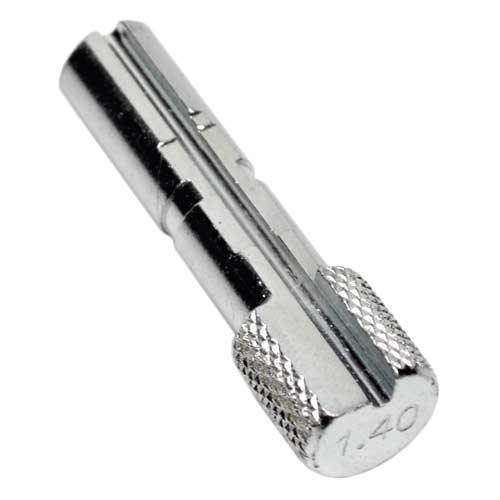

1.4 mm Insert 81514 1.77″ x 0.47″ (45 x 12 mm) 0.9 oz (26 g) 0.055″ (1.4 mm)
1.5 mm Insert 81515 1.77″ x 0.47″ (45 x 12 mm) 0.9 oz (26 g) 0.059″ (1.5 mm)

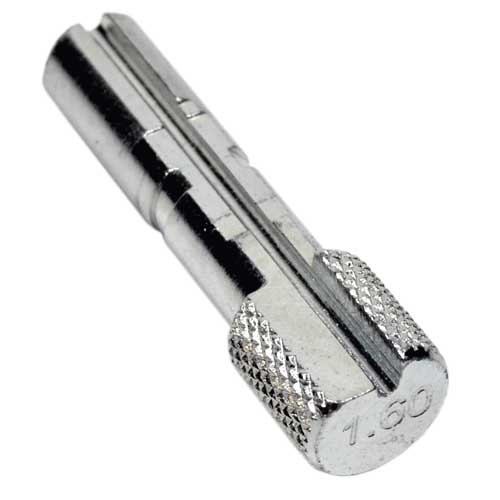

1.6 mm Insert 81516 1.77″ x 0.47″ (45 x 12 mm) 0.9 oz (26 g) 0.063″ (1.6 mm)
1.7 mm Insert 81517 1.77″ x 0.47″ (45 x 12 mm) 0.9 oz (26 g) 0.067″ (1.7 mm)

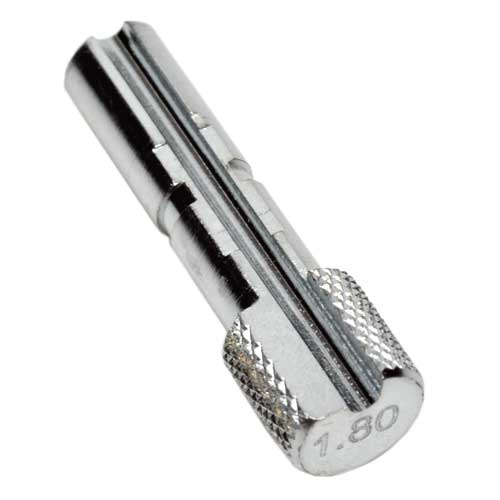

1.8 mm Insert 81518 1.77″ x 0.47″ (45 x 12 mm) 0.9 oz (26 g) 0.071″ (1.8 mm)
