Smart Aligner

Antenna Alignment

The Smart Aligner is the smallest and most powerful Antenna Alignment Tool on the market. Compact design, exceptional performance, multiple configurations and smart phone enabled makes it the smartest choice for aligning your antennas.

The incorporated GPS technology and sophisticated sensors calculate Azimuth, Tilt, Roll, Location and AGL of an antenna under the most demanding conditions.



See all distributors

Part No: WA10-7500

Share this product

Downloads

Overview

Smart design

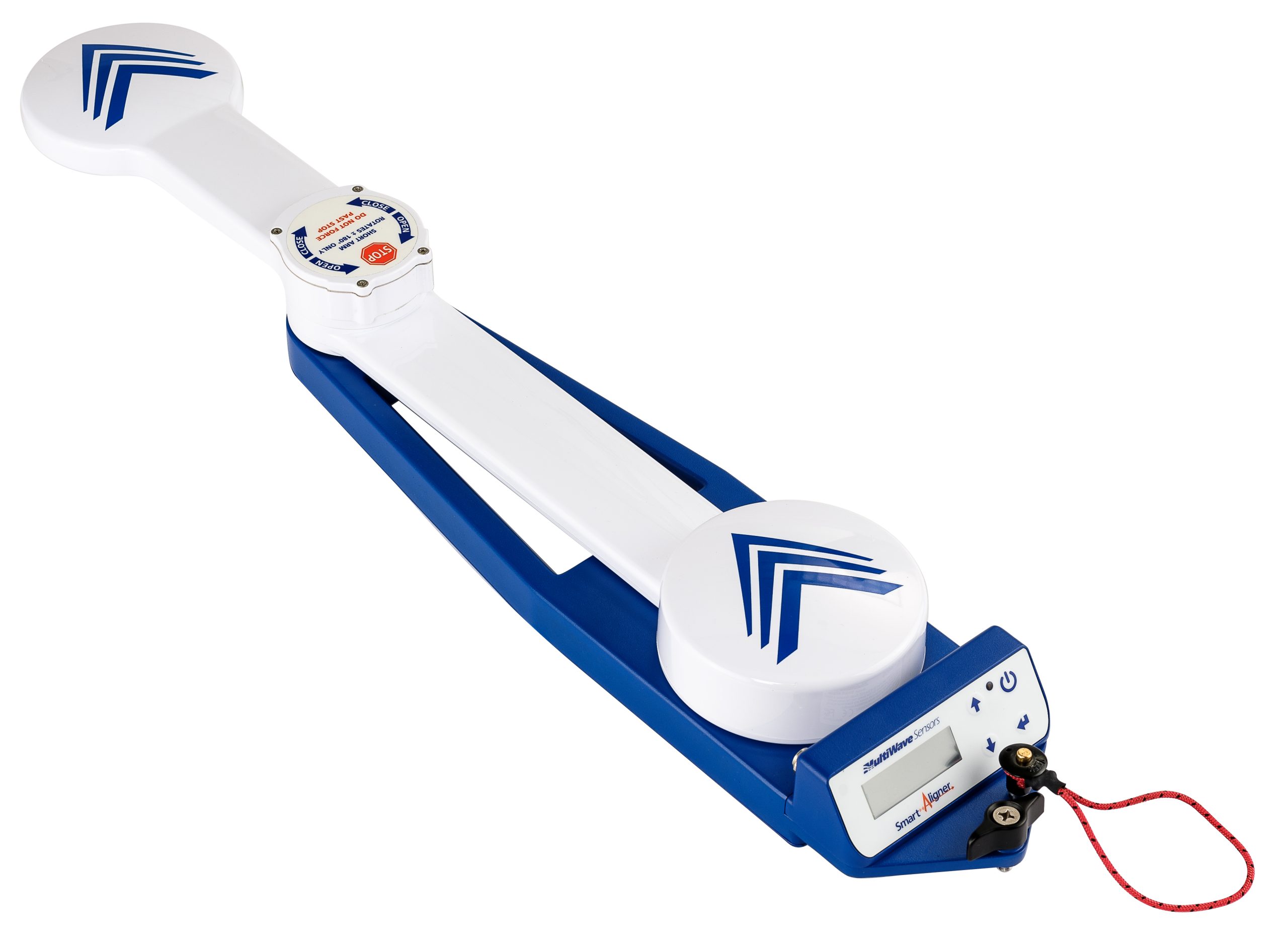

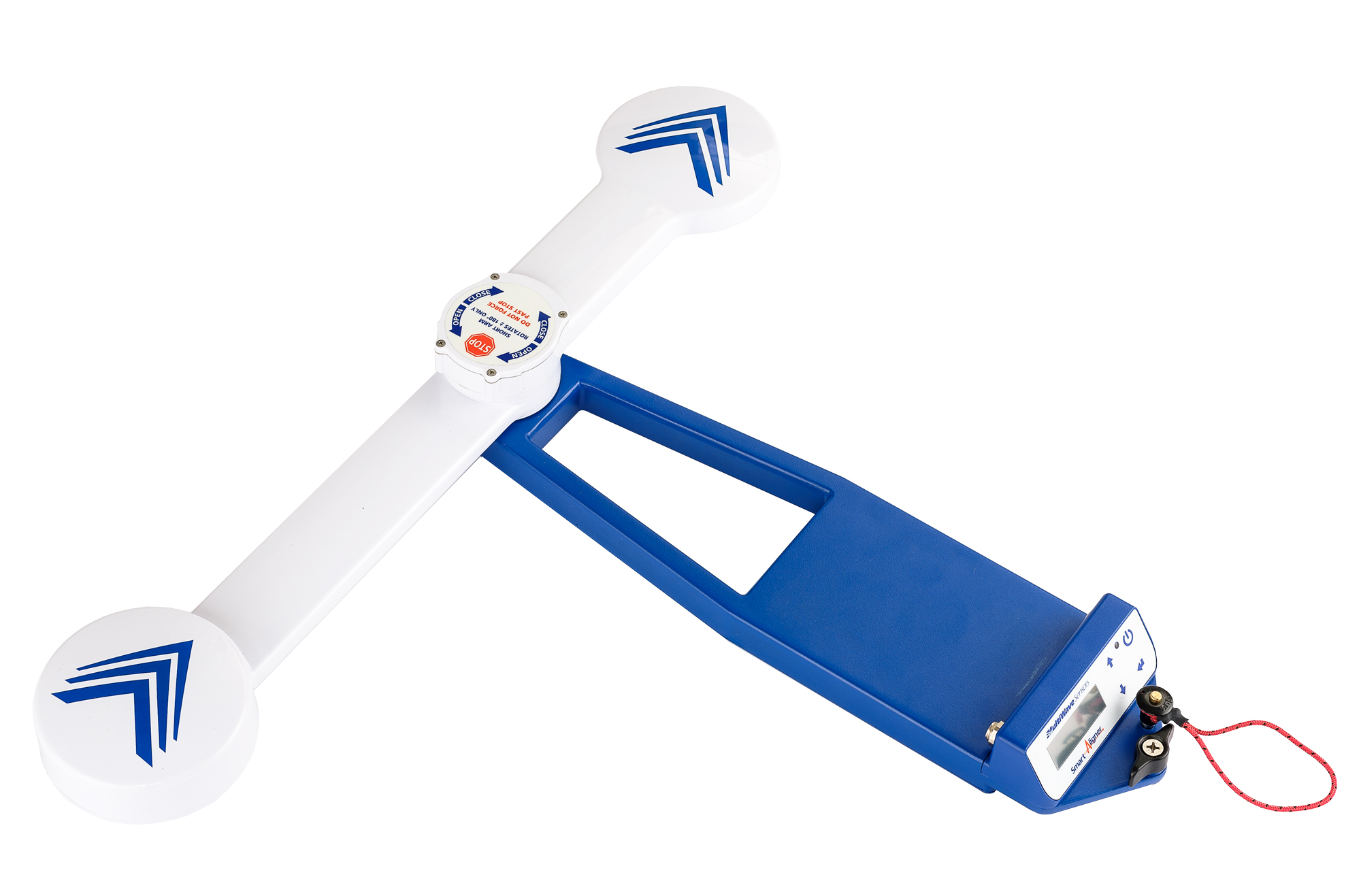

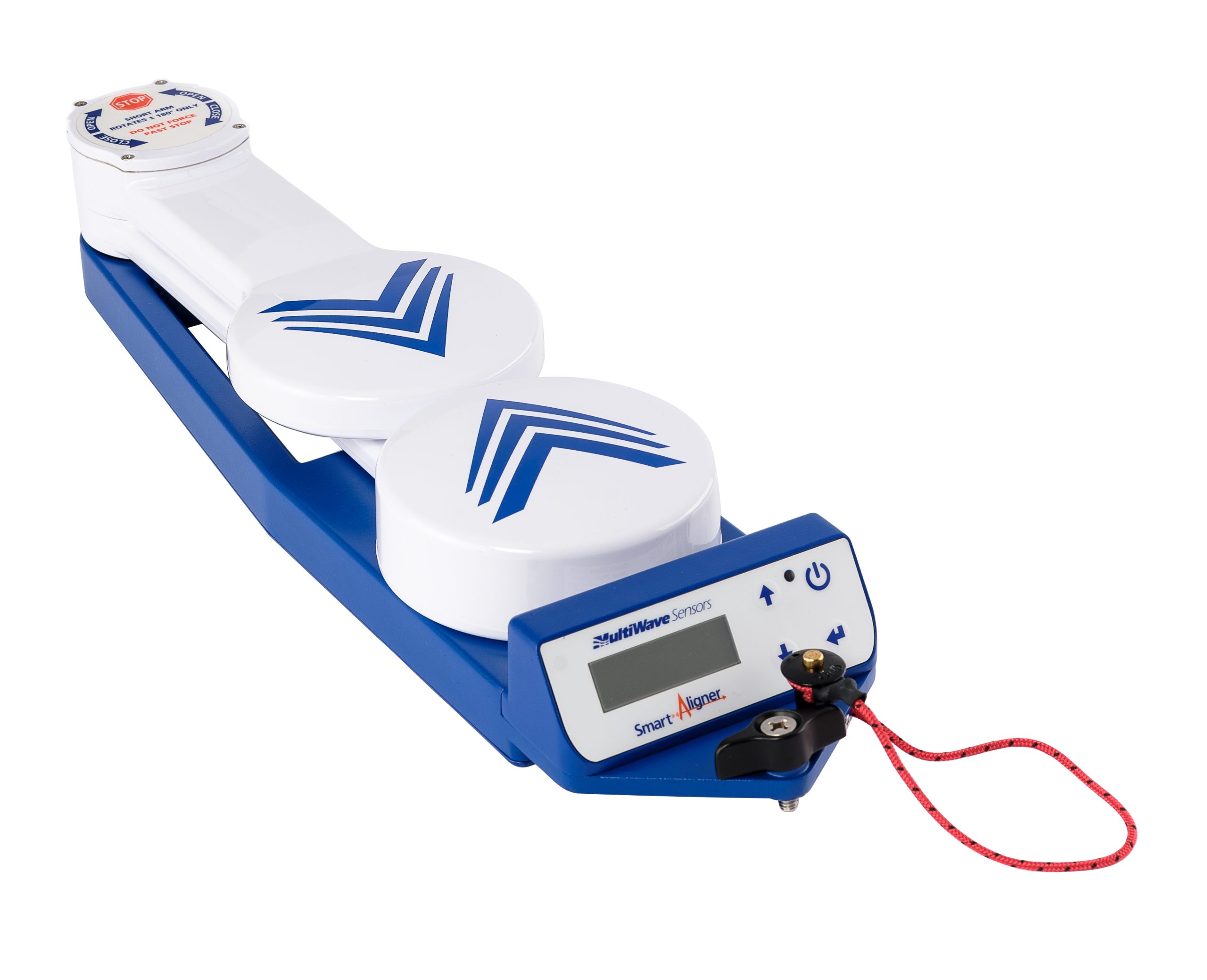

  • Foldable GPS Antenna Alignment Tool
  • Tool and Bracket fit into optional ruggedized carrying case
  • Easy to travel with, carry and transport
  • Fits into provided Tool Bag for easy transport up the tower
  • Weighs only 8 pounds (Tool & Bracket)

Smart performance

  • Typical 0.5o degree Azimuth accuracy
  • Tilt and Roll accuracy of 0.1o
  • Enhanced RF shielding
  • GLONASS enabled for increased performance
  • Fast acquisition time

Smart configuration

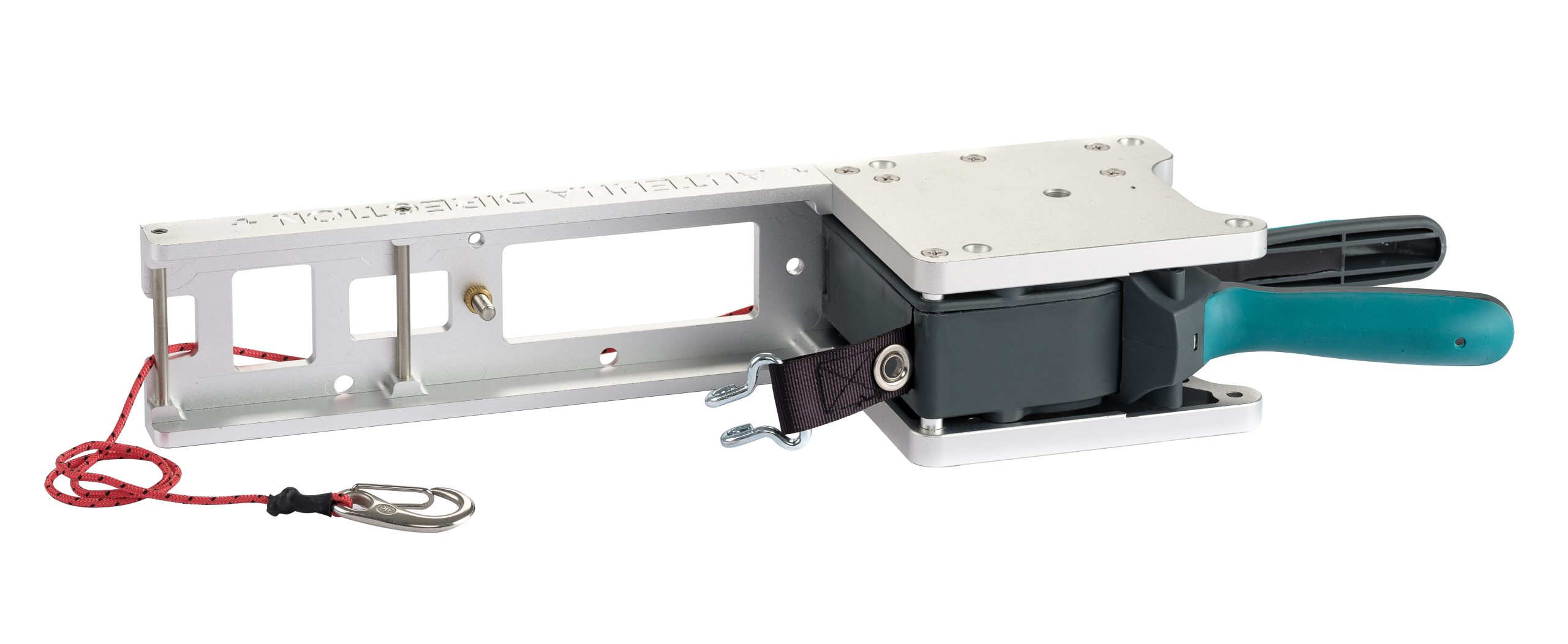

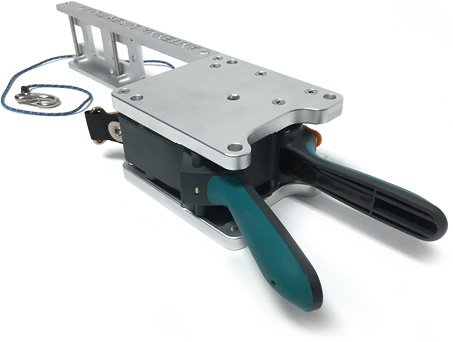

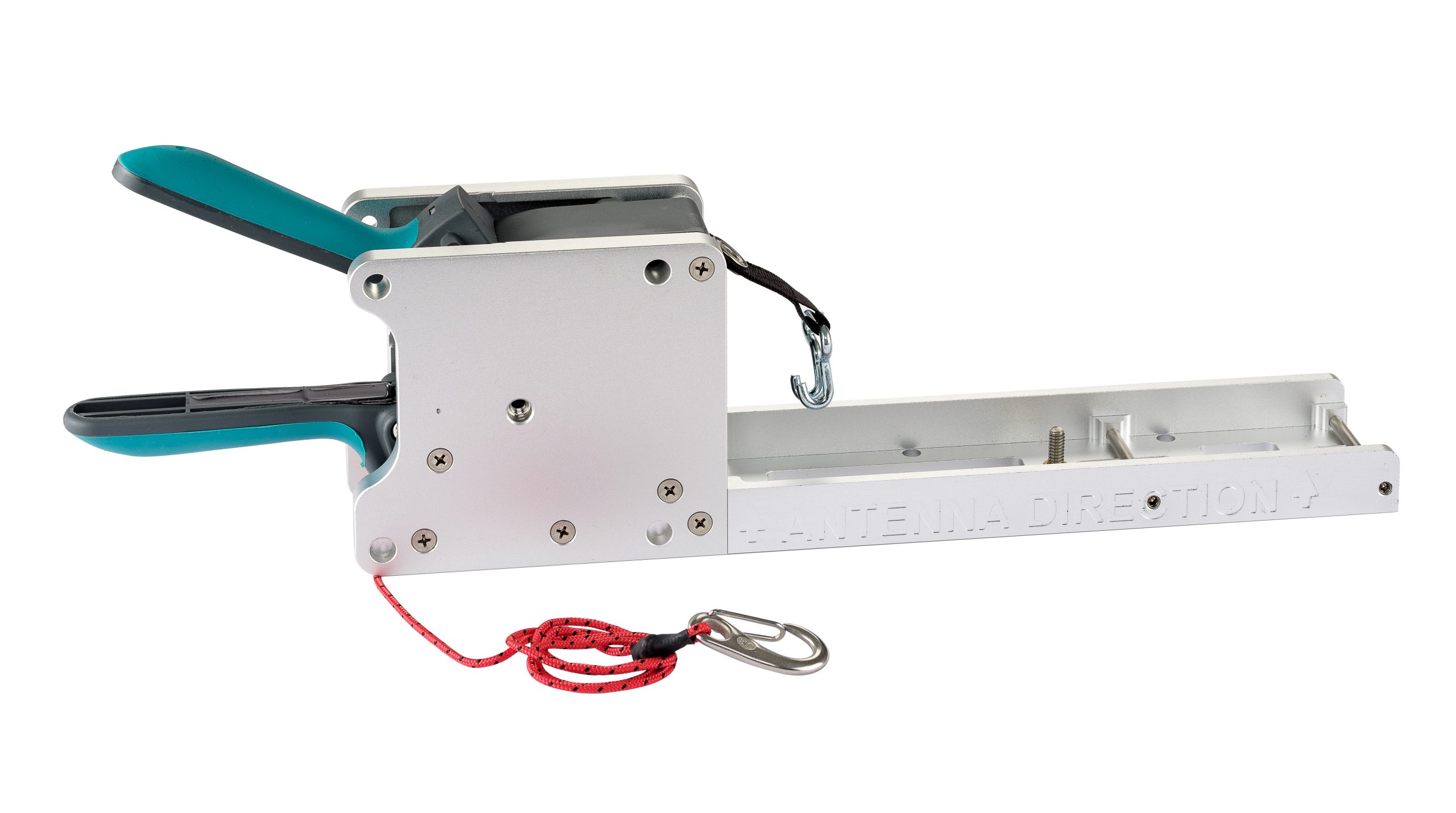

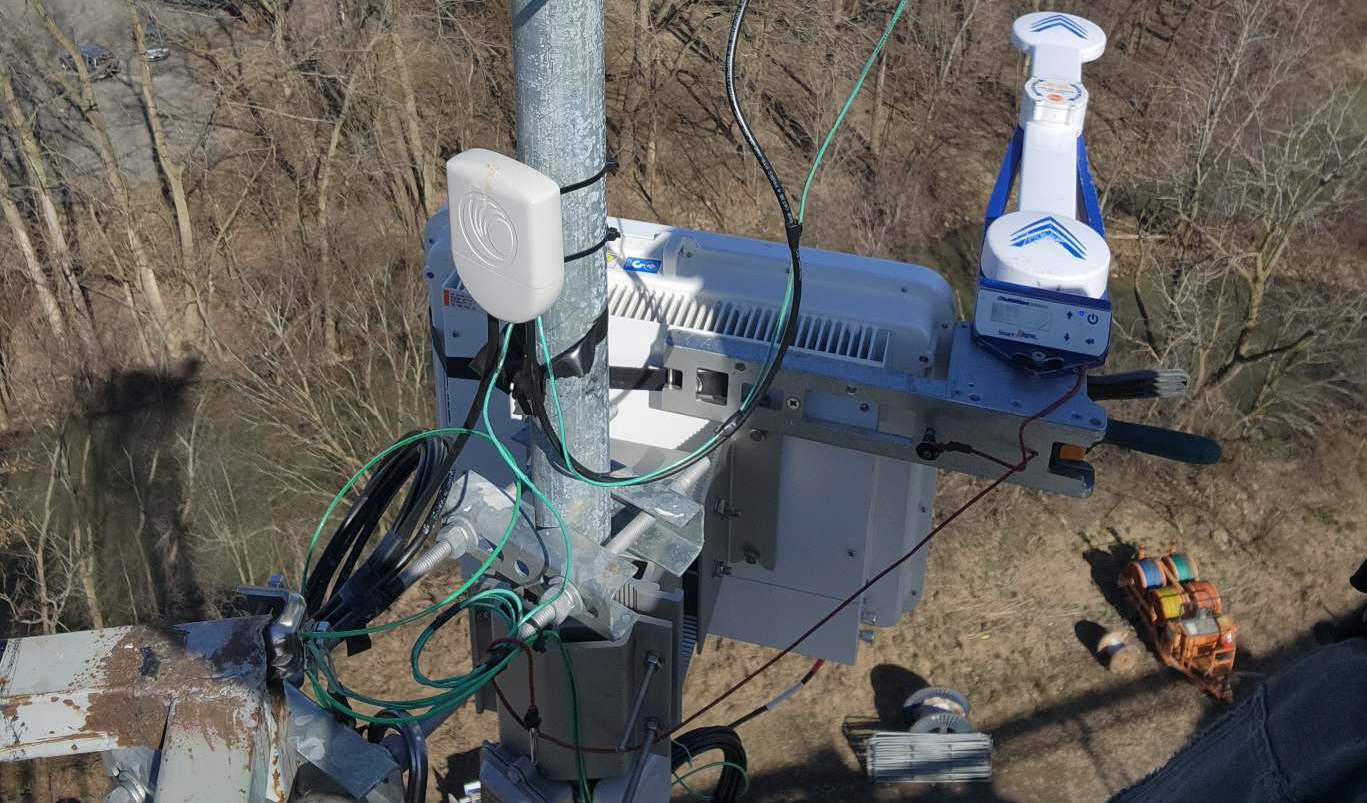

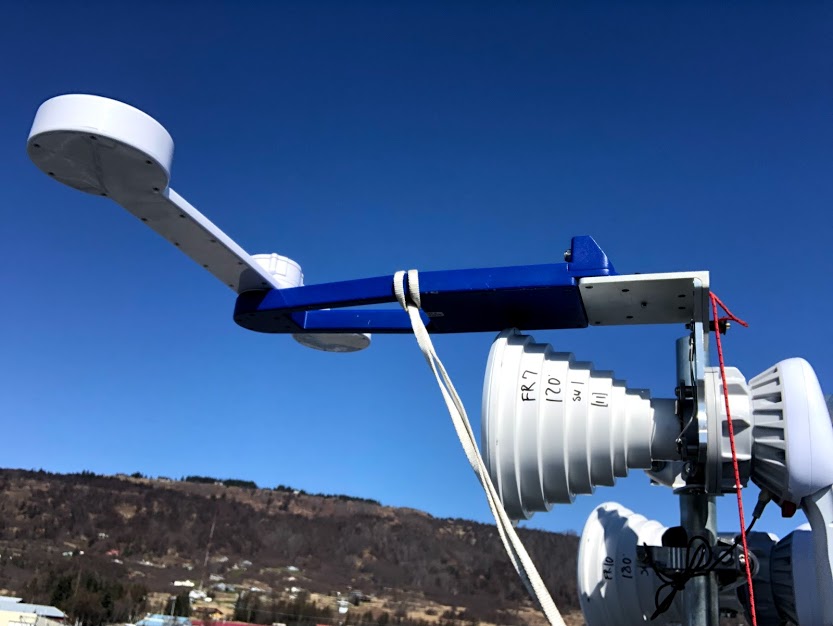

  • Universal Mounting Bracket

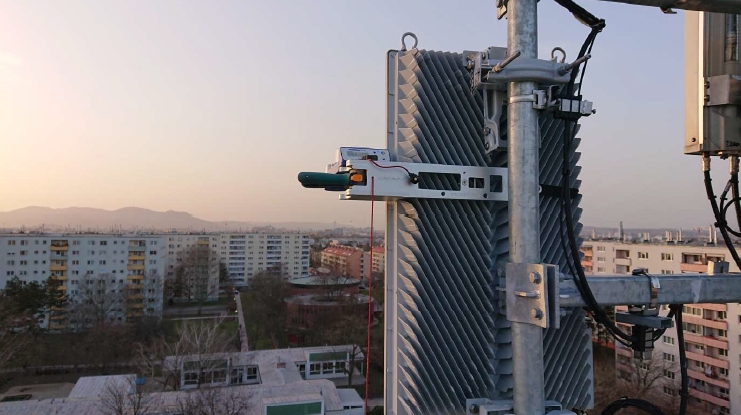

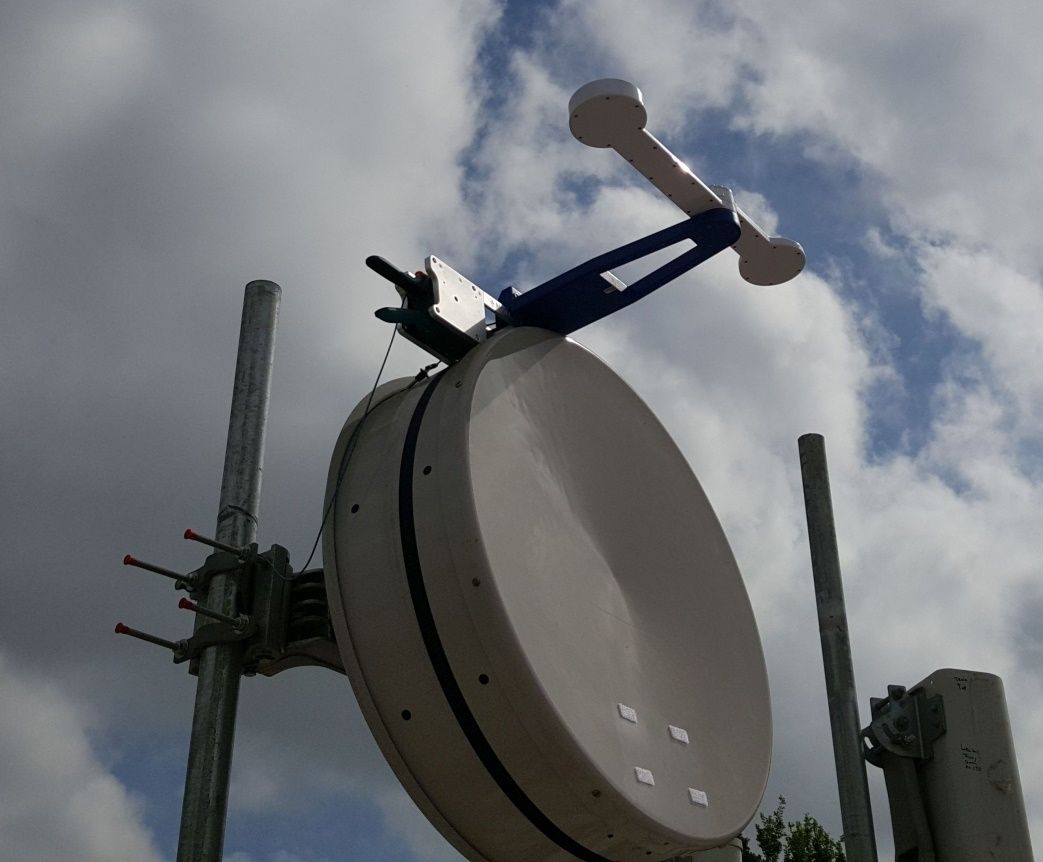

  • 18 antenna mounting positions for the most demanding spatial and RF conditions
  • Automatically calculates Azimuth, Tilt and Roll offsets for any configuration
  • Most antennas can be aligned without additional brackets
  • Optional inserts for Ericsson AIR antennas. Custom inserts available for other types of antennas

Smartphone enabled

  • Measure, verify and save alignment data using our free App
  • Create and send PDF reports wirelessly from your mobile device
  • Include up to ten photos for each antenna in the report
  • Import and export site data directly to and from App
  • Microwave Azimuth Path calculator
  • On-board storage for alignment results
  • Multiple Languages (Android only)
  • Tone Align for easier alignment

Training downloads available

Smart Aligner RMA form located here

Specifications

Description Antenna Alignment
Dimensions 19″ x 4.5″ x 3″ (48.3 cm x 11.4 cm x 7.6 cm)
Weight 4 lb (1.8 kg)
Azimuth accuracy (RMS) 0.17 degrees
Azimuth accuracy (Typical) 0.5 degrees
Tilt and Roll accuracy 0.1 degrees
Position accuracy 60 cm with SBAS
Start up time < 30 seconds
Internal battery Rechargeable lithium ion
Operation time >10 hours (over 100 alignments)
Battery charger AC wall charger and DC car charger

Parts Table

Part #
Description
Compatibility
Part#: WA10-7500
Description:

The WA10-7500 Smart Aligner System contains:

  • WA10-7000 Smart Aligner (tool)
  • WA10-7520 Universal Bracket
  • WA10-7504 Smart Aligner Case (pelican)
  • WA10-5007 Tool Pouch SA
  • M1-2006 12VDC Car Charger
  • M1-2007 Wall Adapter 12VDC 2A
Compatibility:
Part#: WA10-7000
Description:

Smart Aligner Tool Only

Compatibility:
Part#: WA10-7520
Description:

Smart Aligner Mounting Bracket Only

Compatibility:
