WS 6 Series
15-46kV Cable End Stripper
Designed to strip XLPE, polyethylene & EPR insulation on cable diameters from 0.650″ to 2.075″ (16.51 to 52.705 mm).
Part No: Refer to Chart
Share this product
Downloads
- Image: Photo 1: WS 6DA 15-46kV Cable End Stripper with WA 3 Adapter
- Document: WS 6 Instruction Sheet
- Document: WS6 with WA3-DA Instruction Sheet
- Document: WS 6-M Instruction Sheet
- Catalog: Full Utility Catalog
Overview
- Rugged, all metal precision tool designed to strip XLPE, polyethylene & EPR insulation on cable diameters from 0.9″ to 2.03″ (22.86 to 51.56 mm) without damaging the conductor
- Guarded cutting blade prevents injury & protects the blade
- Bushings accommodate various insulation & semi-con diameters
WA 1 Adapter:
Provides compatibility with the SW 2 Series Ratchet Wrench
WA 3 Adapter:
Provides strip lengths up to 5.75″ (146.1 mm) & compatibility with the SW 2 Series Ratchet Wrench
Stop Bars (Included with WA 1 & WA 3):
Adjustable stop bar provides accurate preset stripping lengths
View Compatible Bushings
Compatibility
| Cable Compatibility | Primary Distribution Underground |
|---|---|
| Cable Access | End |
| Min. Cable Outer Diameter | 0.9″ (22.86 mm) |
| Max. Cable Outer Diameter | 2.03″ (51.56 mm) |
| Insulation Materials | XLPE, EPR, PE |
| Min. Voltage | 15 kV |
| Max. Voltage | 46 kV |
| Insulation Thickness | Up to 400 mils |
Specifications
| Patent Number(s) | U.S. Patent No. 3,361,105; Japan Patent No. 1,131,678; Canada Patent No. 827,962 |
|---|---|
| Shaves Semi-Con | Yes |
| Replacement Blade Part # | 12903 |
Comparison Chart
| MODEL | PART # | SCALE | ADJUSTABLE STRIP STOP BAR | LENGTH | WEIGHT | STRIP LENGTH | DRIVE ATTACHMENTS |
|---|---|---|---|---|---|---|---|

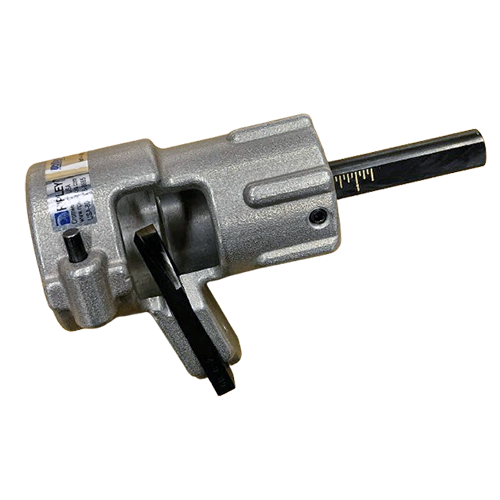

| WS 6 | 12900 | Customary | Yes | 6.5″ (156 mm) | 1.4 lb (680 g) | 0.5″ - 2.413″ (12.7 - 54.1 mm) | Manual |

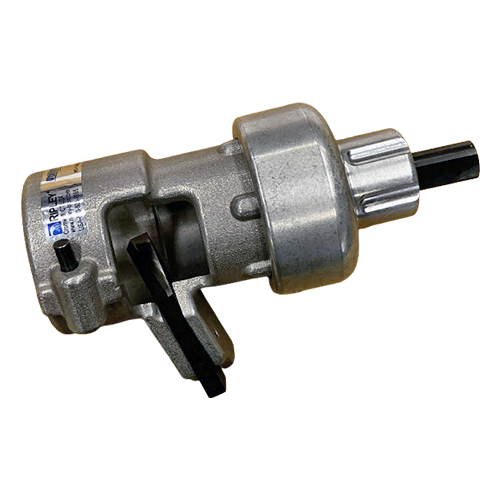

| WS 6 with WA 1 | 12917 | Customary | Yes | 6.5″ (156 mm) | 1.9 lb (861.8 g) | 0.5″ - 2.413″ (12.7 - 54.1 mm) | Manual Wrench |

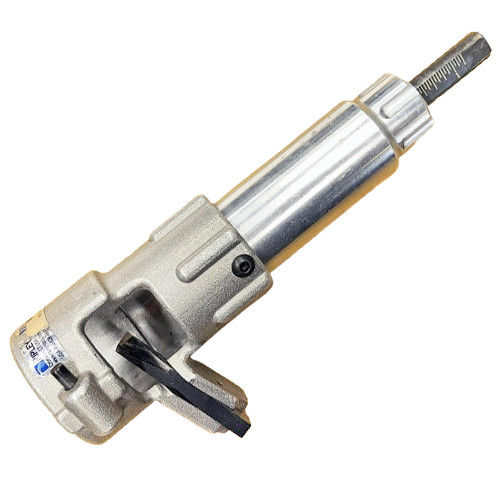

| WS 6 with WA 3 | 12918 | Customary | Yes | 10″ (254 mm) | 2 lb (907.2 g) | 0.5″ - 5.75″ (12.7 - 146.1 mm) | Manual Wrench |

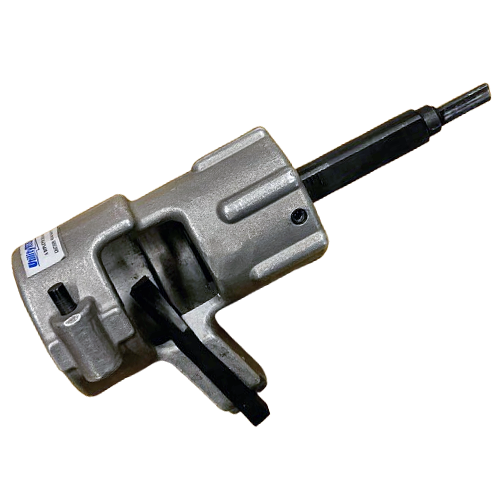

| WS 6DA | 12950 | Customary | Yes | 7.5″ (190.5 mm) | 1.5 lb (680 g) | 0.5″ - 2.413″ (12.7 - 54.1 mm) | Manual Drill |

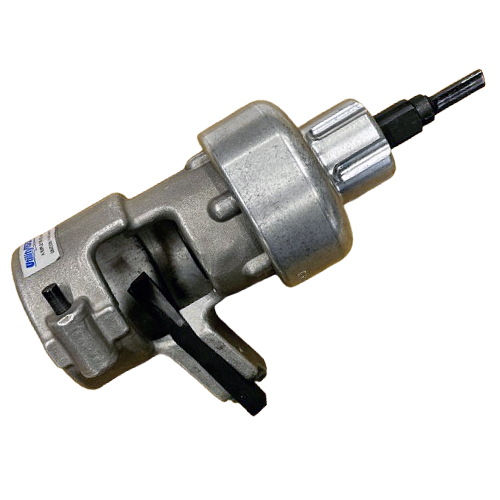

| WS 6DA with WA 1 | 12951 | Customary | Yes | 7.5″ (190.5 mm) | 2 lb (907.2 g) | 0.5″ - 2.413″ (12.7 - 54.1 mm) | Manual Wrench Drill |

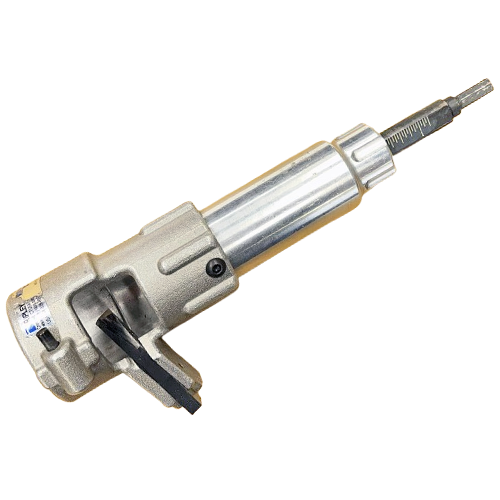

| WS 6DA with WA 3 | 12952 | Customary | Yes | 11″ (279.4 mm) | 2.1 lb (952.5 g) | 0.5″ - 5.75″ (12.7 - 146.1 mm) | Manual Wrench Drill |
| WS 6DA-M with WA 3 | 12960 | Metric | Yes | 11" (279.4mm) | 2.1 lb (952.5g) | 0.5" - 5.75" (12.7 - 146.1 mm) | Manual Wrench Drill |
