US15 Series

Large Format Cable Slitter

Designed to support slit, ring, and spiral cuts on cable diameters from 10 to 60 mm.

Part No: Refer to Chart

Share this product

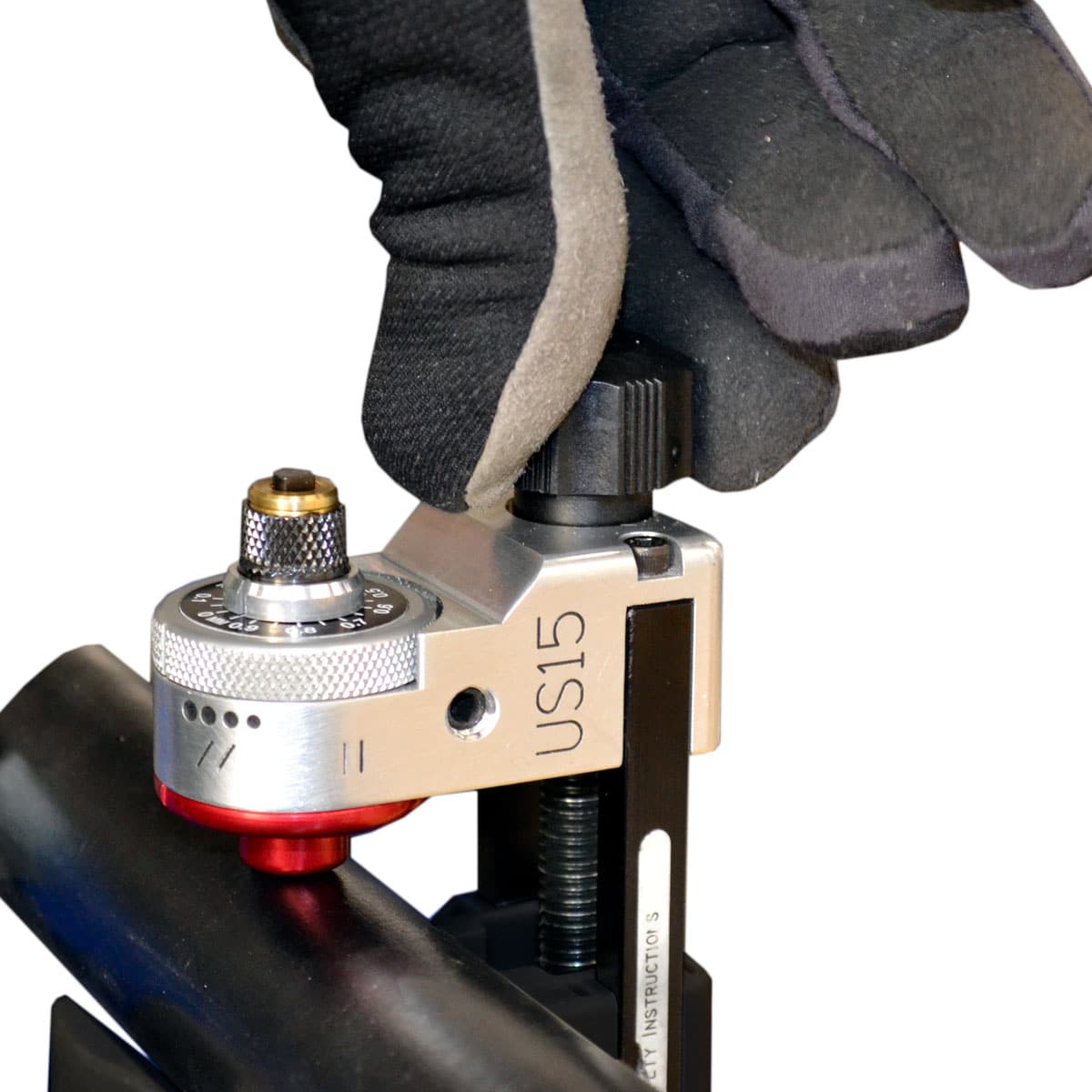

Introducing the new US15 Large Format Cable Slitter, a versatile tool capable of performing slit, ring, and spiral cuts on cable diameters from 10 to 60 mm. Equipped with a hardened steel blade, the tool provides fast, safe, and precise jacket removal from both hard and soft insulated cables without damaging the underlying layers.

  • Equipped with safe, recessed blade to prevent potential injury & blade damage

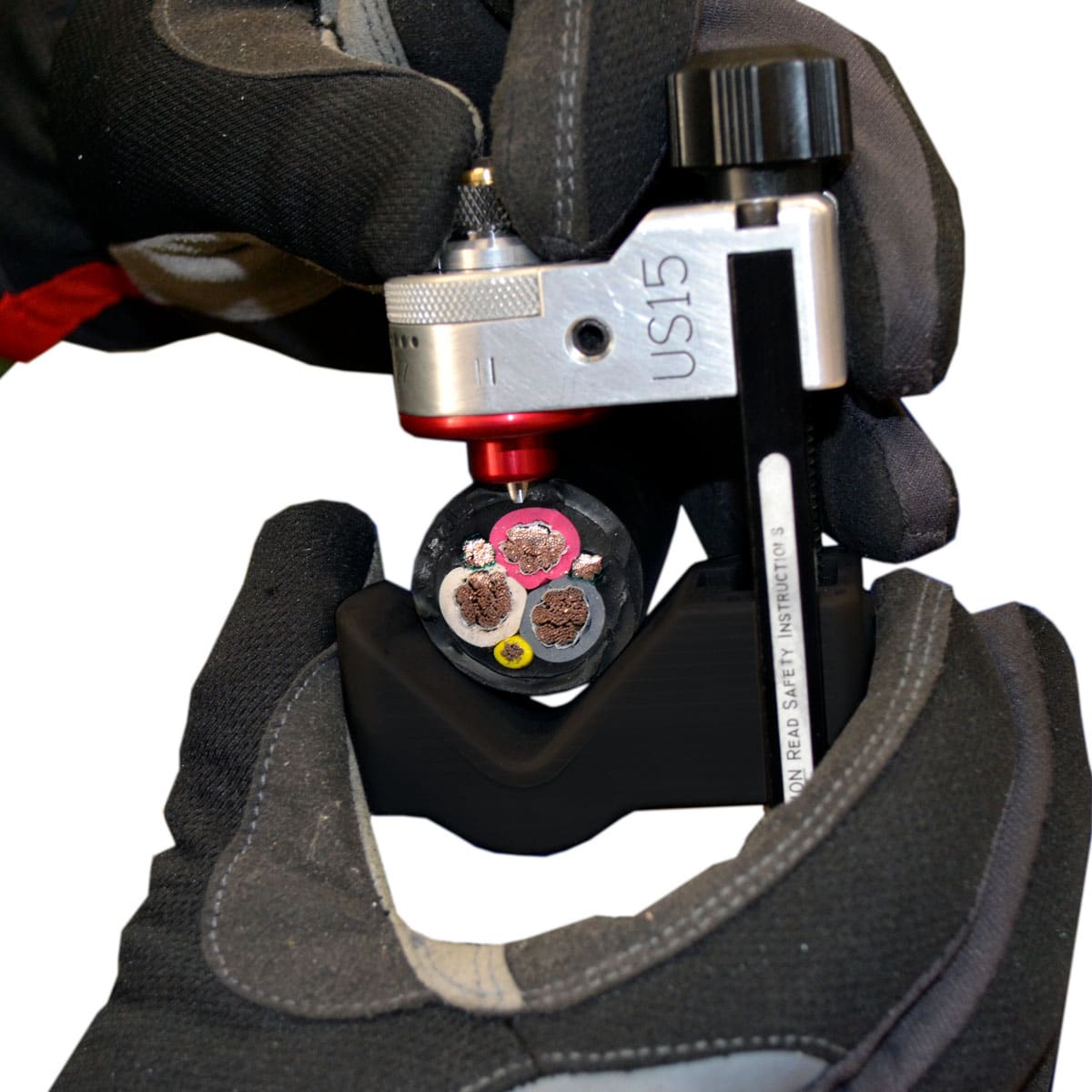

  • Compatible with large telecom cables, large fiber optic ducts & various other large diameter power cables
  • Easily adjust the blade position to perform ring, spiral & longitudinal cuts
  • Quickly adjusts to suit hard & soft insulated cables with 0.39″ to 2.36″ (10 mm – 60 mm) diameters on cable ends & 0.39″ to 1.96″ (10 – 50 mm) on cable mid-spans

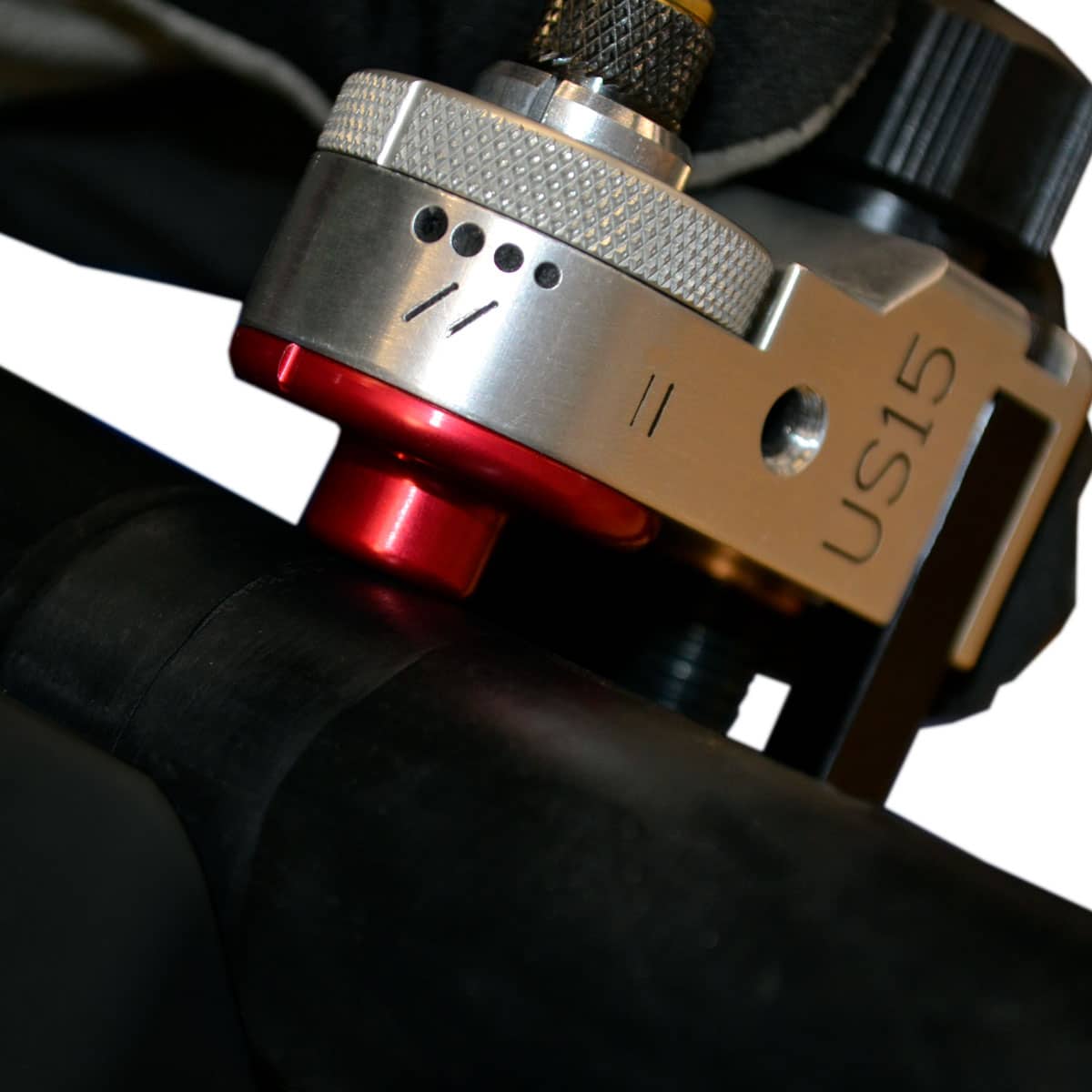

  • Blade depth knob adjusts up to 0.177″ (4.5 mm) in increments of 0.002″ (0.05 mm) & features a convenient inch or metric scale for guaranteed precision
  • Replaceable, machined & ground tool steel blade
  • Reinforced diameter adjustment jaw is durable & travels on a threaded rod to provide precise stability between the blade & jacket
Cable Access Mid-Span, End
Min. Cable Outer Diameter 0.39″ (10 mm)
Max. Cable Outer Diameter 2.36″ (60 mm) End / 1.96″ (50 mm) Mid-Span
Jacket Materials PE, PVC, Rubber, HDPE
Adjustable Blade Depth 0.177″ (4.5 mm)
Material Impact-Resistant Polymer
Handles Ergonomic
Length 5.125″ (130 mm)
Weight 8.82 oz (250 g)
Replacement Blade Part # US15-7500
Cutting Type Radial, Spiral, Longitudinal
US15 Large Format Cable Slitter (Metric Scale) US15-7000 Metric 0.05 mm
US15 Large Format Cable Slitter (Inch Scale) US15-7001 Customary 0.002″
