Large Format Slitting Tool

Heavier duty slitting tool designed to assist in the removal of outer sheathing and primary insulation on low and medium voltage power cables.

Part No: Refer to Chart

Share this product

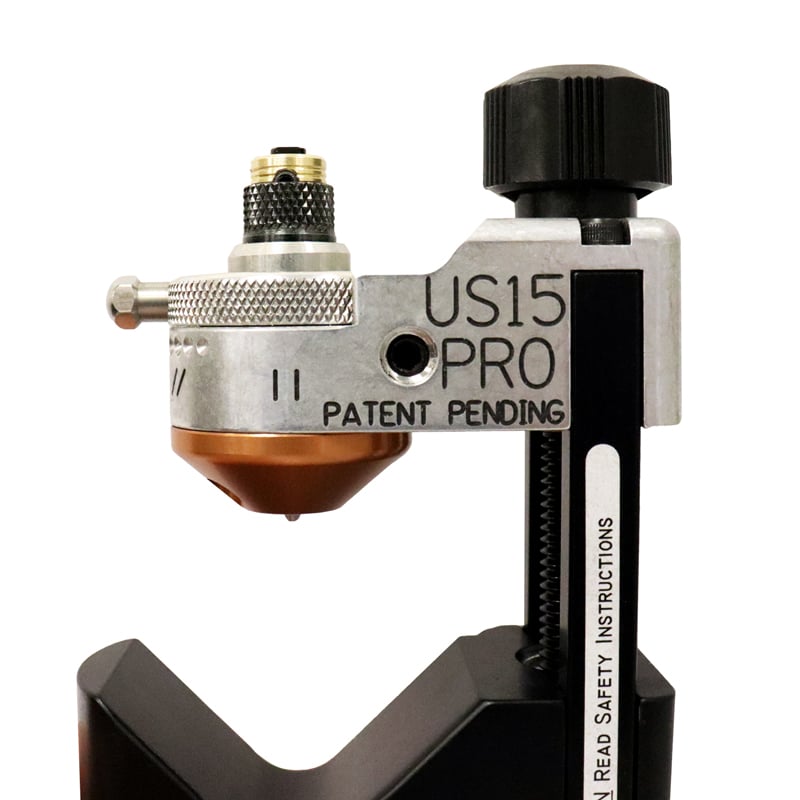

The US15 PRO Large Format Slitting Tool is capable of performing slit, ring, and spiral cuts on cable diameters from 10 to 60 mm. Equipped with a high-grade steel blade, the versatile tool provides fast, safe, and precise jacket removal from both hard and soft insulated cables without damaging the underlying layers.

  • Equipped with safe, recessed blade to prevent potential injury & blade damage
  • Compatible with various insulated materials such as PE, XLPE, PVC, EPR, silicon rubber, EPDM and TGGT
  • Easily adjust the blade position to perform ring, spiral & longitudinal cuts
  • Quickly adjusts to suit hard & soft insulated cables with 0.39″ to 2.36″ (10 mm – 60 mm) diameter

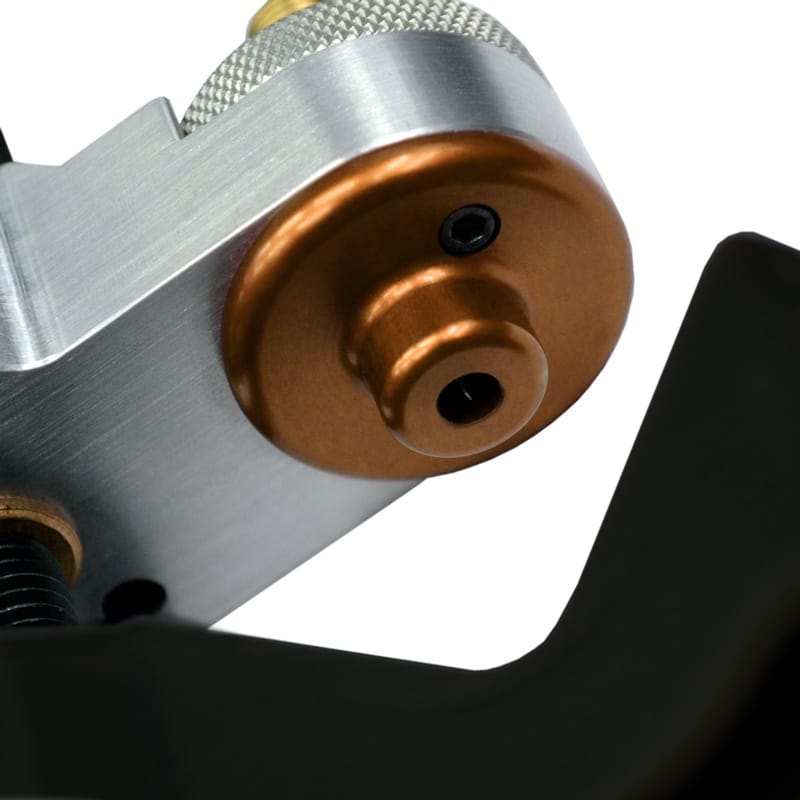

  • Blade depth knob adjusts up to 0.216″ (5.5 mm) in increments of 0.002″ (0.05 mm) & features a convenient inch or metric scale for guaranteed precision
  • Replaceable, machined & ground tool steel blade
  • Reinforced diameter adjustment jaw is durable & travels on a threaded rod to provide precise stability between the blade & jacket
Cable Access Mid-Span, End
Min. Cable Outer Diameter 0.39″ (10 mm)
Max. Cable Outer Diameter 2.36″ (60 mm)
Jacket Materials PE, XLPE, PVC, EPR, Silicon Rubber, EPDM, TGGT, Sealpic®
Adjustable Blade Depth 0.216″ (5.5 mm)
Material Impact-Resistant Polymer
Handles Ergonomic
Length 5.125″ (130 mm)
Weight 8.82 oz (250 g)
Replacement Blade Part # US15-7501
Cutting Type Radial, Spiral, Longitudinal
US15 PRO Large Slitting Tool (Metric Scale) US15-7010 Metric 0.05 mm
US15 PRO Large Slitting Tool (Inch Scale) US15-7011 Customary 0.002″
