US16 Series
US16 Series Bushings
Compatible with US16 Series Cable End Stripper
Part No: Refer to Chart
Share this product
Downloads

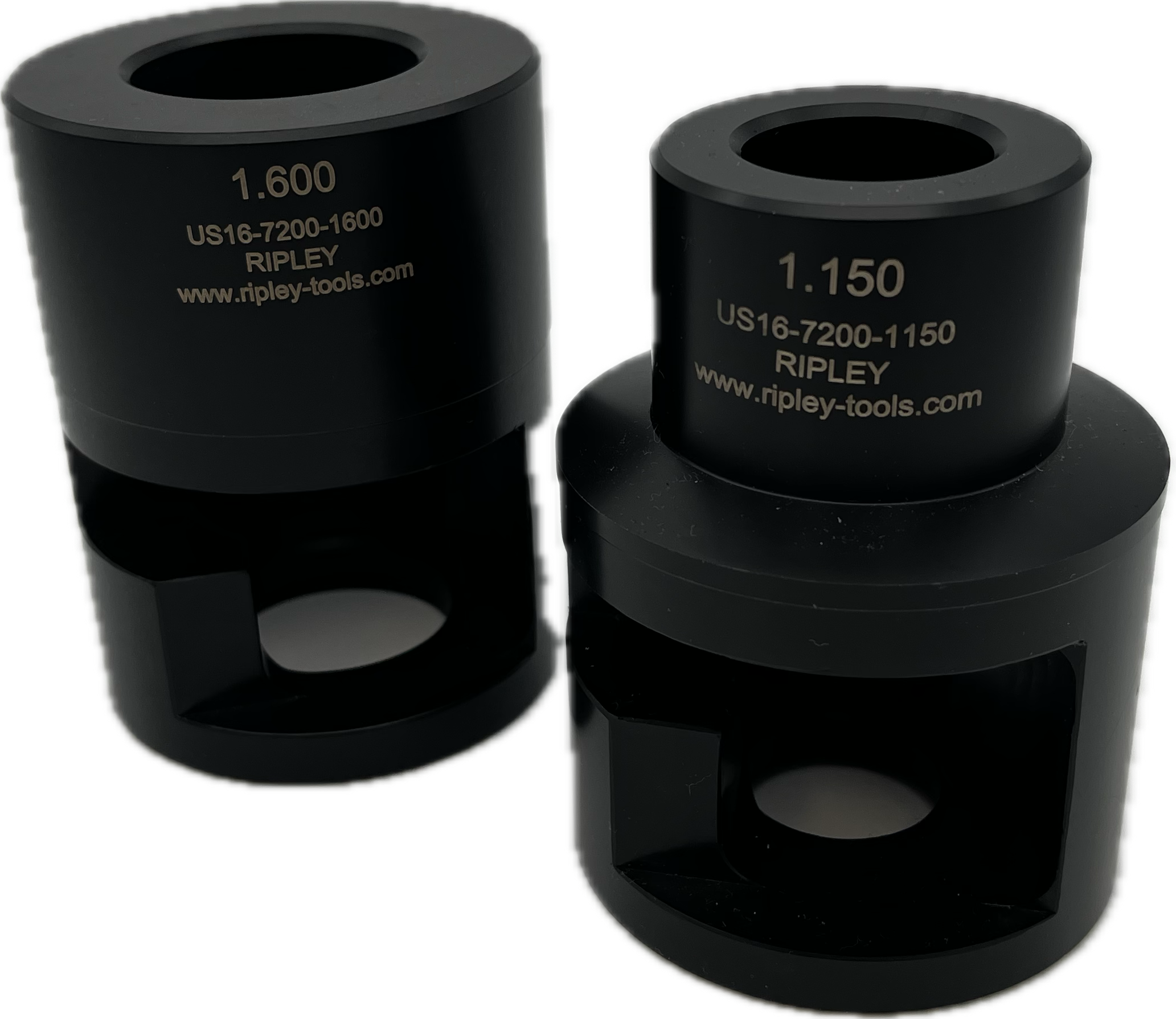

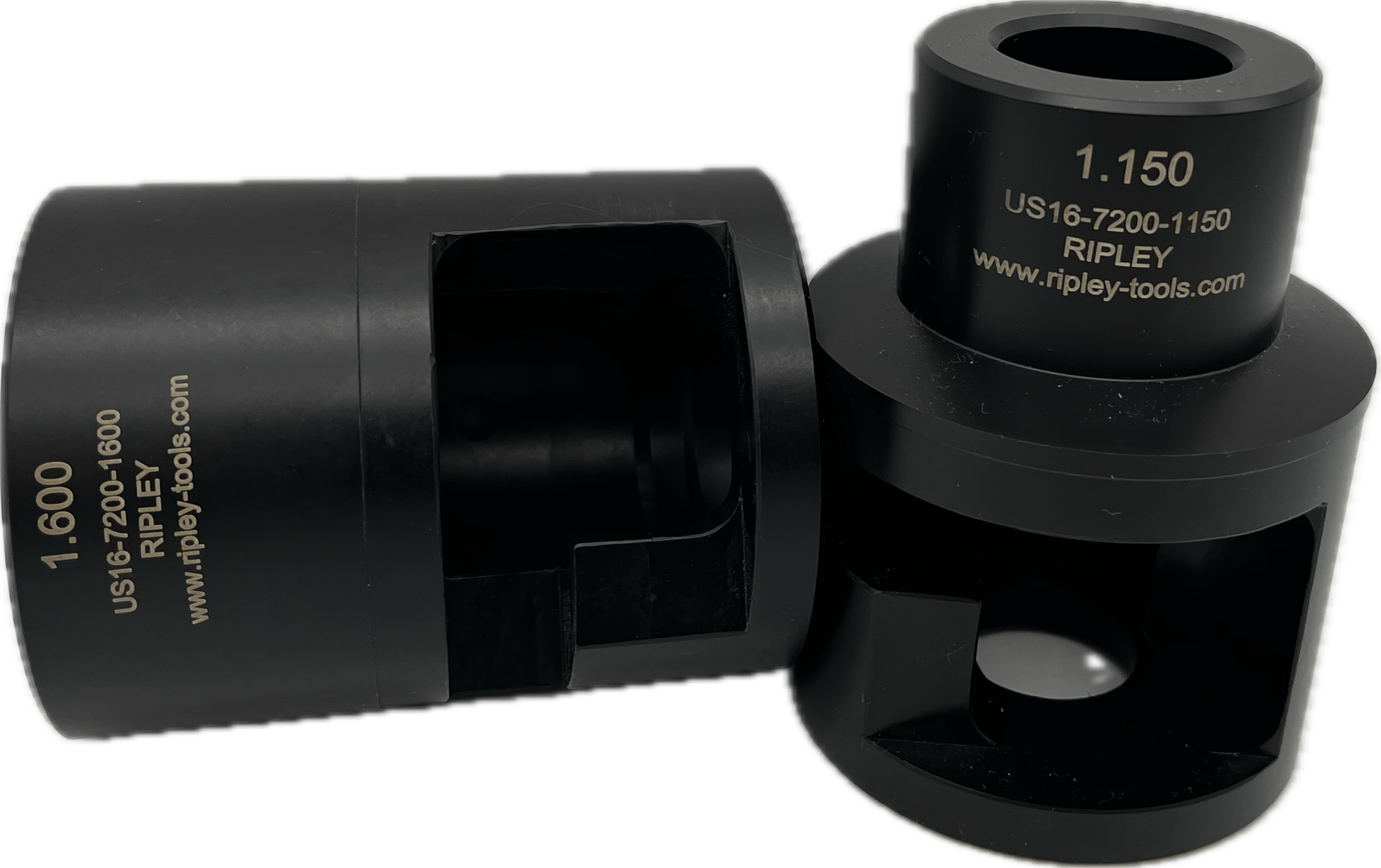

- Image: Photo 1: US16 Series Bushings
- Document: US16 Sale Sheet (EN)
- Document: US16 Instruction Sheet (EN)
- Catalog: Full Utility Catalog
Overview

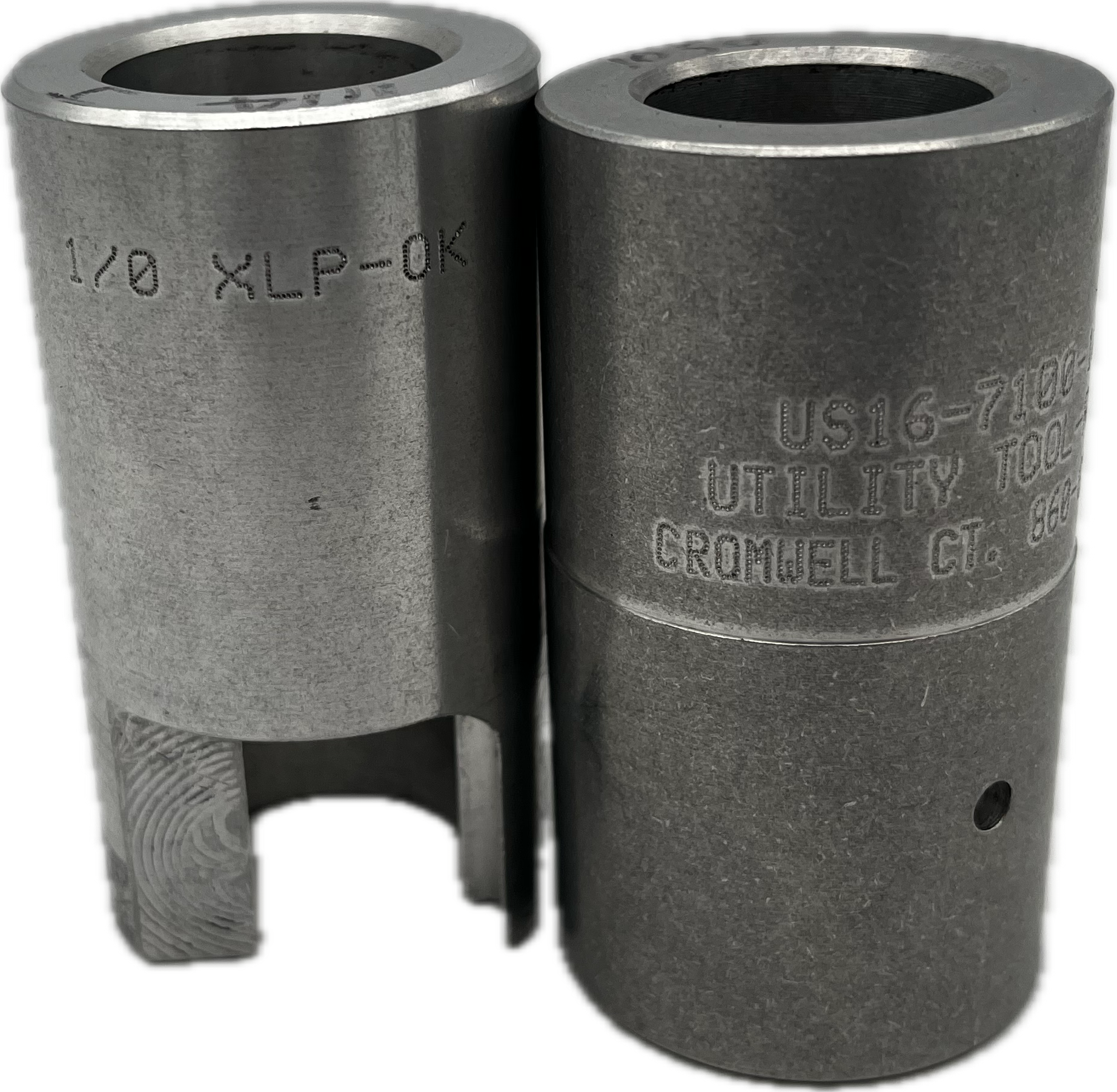

Bushings specific to US16 Series Drill Operated Jacket Removal tool.
Comparison Chart
| PART NUMBER | DESCRIPTION - BORE SIZE | O.D. OVER INSULATION / SEMI-CON |
|---|---|---|
| US16-7100-0700 | BUSHING AP 0.700" BORE - COMPLETE | 0.665 in - 0.690 in (16.891 - 17.526 mm) |
| US16-7100-0725 | BUSHING AP 0.725" BORE - COMPLETE | 0.69 in -0.715 in (17.526 mm-18.161 mm) |
| US16-7100-0750 | BUSHING AP 0.750" BORE - COMPLETE | 0.715 in -0.74 in (18.161 mm-18.796 mm) |
| US16-7100-0775 | BUSHING AP 0.775" BORE - COMPLETE | 0.74 in -0.765 in (18.796 mm-19.431 mm) |
| US16-7100-0800 | BUSHING AP 0.800" BORE - COMPLETE | 0.765 in -0.79 in (19.431 mm-20.066 mm) |
| US16-7100-0825 | BUSHING AP 0.825" BORE - COMPLETE | 0.79 in -0.815 in (20.066 mm-20.701 mm) |
| US16-7100-0850 | BUSHING AP 0.850" BORE - COMPLETE | 0.815 in -0.84 in (20.701 mm-21.336 mm) |
| US16-7100-0875 | BUSHING AP 0.875" BORE - COMPLETE | 0.84 in -0.865 in (21.336 mm-21.971 mm) |
| US16-7100-0900 | BUSHING AP 0.900" BORE - COMPLETE | 0.865 in -0.89 in (21.971 mm-22.606 mm) |
| US16-7100-0925 | BUSHING AP 0.925" BORE - COMPLETE | 0.89 in -0.915 in (22.606 mm-23.241 mm) |
| US16-7100-0950 | BUSHING AP 0.950" BORE - COMPLETE | 0.915 in -0.94 in (23.241 mm-23.876 mm) |
| US16-7100-0975 | BUSHING AP 0.975" BORE - COMPLETE | 0.94 in -0.965 in (23.876 mm-24.511 mm) |
| US16-7100-1000 | BUSHING AP 1.000" BORE - COMPLETE | 0.965 in -0.99 in (24.511 mm-25.146 mm) |
| US16-7100-1025 | BUSHING AP 1.025" BORE - COMPLETE | 0.99 in -1.015 in (25.146 mm-25.781 mm) |
| US16-7100-1050 | BUSHING AP 1.050" BORE - COMPLETE | 1.015 in -1.04 in (25.781 mm-26.416 mm) |
| US16-7100-1075 | BUSHING AP 1.075" BORE - COMPLETE | 1.04 in -1.065 in (26.416 mm-27.051 mm) |
| US16-7100-1100 | BUSHING AP 1.100" BORE - COMPLETE | 1.065 in -1.09 in (27.051 mm-27.686 mm) |
| US16-7100-1125 | BUSHING AP 1.125" BORE - COMPLETE | 1.09 in -1.115 in (27.686 mm-28.321 mm) |
| US16-7100-1150 | BUSHING AP 1.150" BORE - COMPLETE | 1.115 in -1.14 in (28.321 mm-28.956 mm) |
| US16-7100-1175 | BUSHING AP 1.175" BORE - COMPLETE | 1.14 in -1.165 in (28.956 mm-29.591 mm) |
| US16-7100-1200 | BUSHING AP 1.200" BORE - COMPLETE | 1.165 in -1.19 in (29.591 mm-30.226 mm) |
| US16-7100-1225 | BUSHING AP 1.225" BORE - COMPLETE | 1.19 in -1.215 in (30.226 mm-30.861 mm) |
| US16-7100-1250 | BUSHING AP 1.250" BORE - COMPLETE | 1.215 in -1.24 in (30.861 mm-31.496 mm) |
| US16-7100-1275 | BUSHING AP 1.275" BORE - COMPLETE | 1.24 in -1.265 in (31.496 mm-32.131 mm) |
| US16-7100-1300 | BUSHING AP 1.300" BORE - COMPLETE | 1.265 in -1.29 in (32.131 mm-32.766 mm) |
| US16-7100-1325 | BUSHING AP 1.325" BORE - COMPLETE | 1.29 in -1.315 in (32.766 mm-33.401 mm) |
| US16-7100-1350 | BUSHING AP 1.350" BORE - COMPLETE | 1.315 in -1.34 in (33.401 mm-34.036 mm) |
| US16-7100-1375 | BUSHING AP 1.375" BORE - COMPLETE | 1.34 in -1.365 in (34.036 mm-34.671 mm) |
| US16-7100-1400 | BUSHING AP 1.400" BORE - COMPLETE | 1.365 in -1.39 in (34.671 mm-35.306 mm) |
| US16-7100-1425 | BUSHING AP 1.425" BORE - COMPLETE | 1.39 in -1.415 in (35.306 mm-35.941 mm) |
| US16-7100-1450 | BUSHING AP 1.450" BORE - COMPLETE | 1.415 in -1.44 in (35.941 mm-36.576 mm) |
| US16-7100-1475 | BUSHING AP 1.475" BORE - COMPLETE | 1.44 in -1.465 in (36.576 mm-37.211 mm) |
